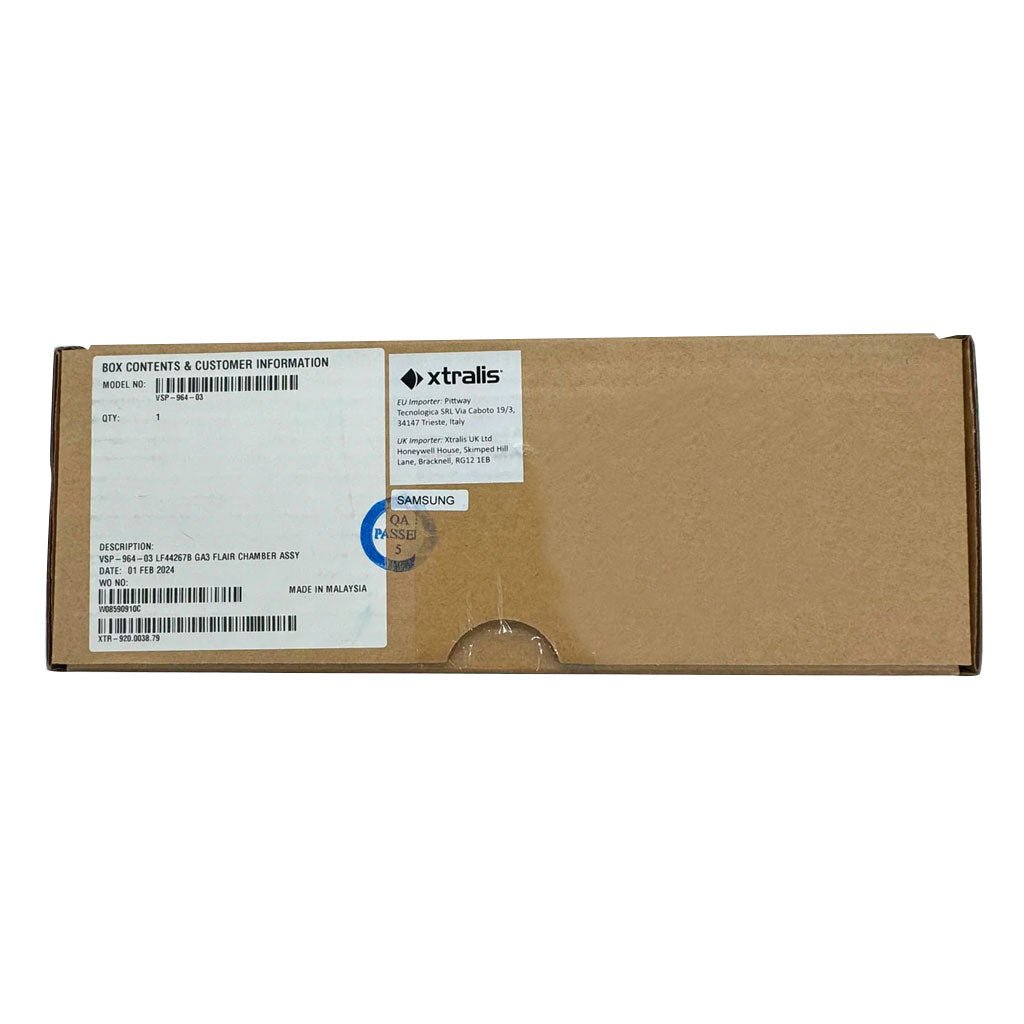

VSP-964-03 — VESDA-E Smoke Detection Chamber, MK3 revision, supplied as a field-replaceable spare.
The detection chamber is the optical core of a VESDA-E detector. Air drawn from the sampling pipe network passes an airflow sensor, then the replaceable filter, and reaches the chamber through the sampling module; a further filtered clean-air feed shields the optical surfaces inside the chamber from contamination. The chamber uses a short wavelength laser light source together with photodiodes and advanced imaging technology to achieve response across a wide range of smoke types. Xtralis builds the VESDA-E internal components as field-replaceable sub-assemblies, so a degraded chamber is exchanged on site rather than by returning the detector.
Specifications
| Order code |
VSP-964-03 |
| Manufacturer description |
VESDA-E Smoke Detection Chamber – MK3 |
| Listed as a spare for |
VESDA-E VES (VES-A00-P, VES-A10-P), per the VESDA-E VES data sheet spare parts table |
| Service class |
Field-replaceable sub-assembly |
| Sensing method |
Short wavelength laser light source with photodiodes and imaging technology |
| Optics protection |
Filtered clean air barrier fed to the chamber's optical surfaces |
Installation notes
-
The revision is part of the number: VSP-964-03 is the MK3 chamber. The later VESDA-E VEP-A00-UL Product Guide (September 2023) lists VSP-964-04, the MK4 chamber, as its spare. Check which revision your detector's current documentation calls for before ordering.
-
Removal sequence: switch off the 24 VDC supply, open the front door and remove the front fascia, remove the filter, remove the sampling module, then undo the four screws holding the chamber to the detector base. Reinstall in the reverse order.
-
ESD: the product guide requires electrostatic precautions throughout to prevent damage to the detector.
-
A chamber swap is not a filter swap: the replaceable air filter is a separate part (VSP-962). Fitting a new chamber does not renew the filtration that protects it.
Related models
-
VSP-964-04 — the MK4 chamber listed in the September 2023 VESDA-E VEP-A00-UL Product Guide.
-
VSP-965 — VESDA-E sampling module, removed to gain access to the chamber.
-
VSP-962 / VSP-962-20 — VESDA-E filter cartridge, single unit and 20-pack.
-
VSP-963 — VESDA-E aspirator.
Specifications taken from the Xtralis (Honeywell) data sheet "VESDA-E VES," document VESDA-E-VES V.01 (April 2020), and the "VESDA-E VEP-A00-UL Product Guide," document 35710_A5 (September 2023). Manufacturer specifications are subject to change without notice.
