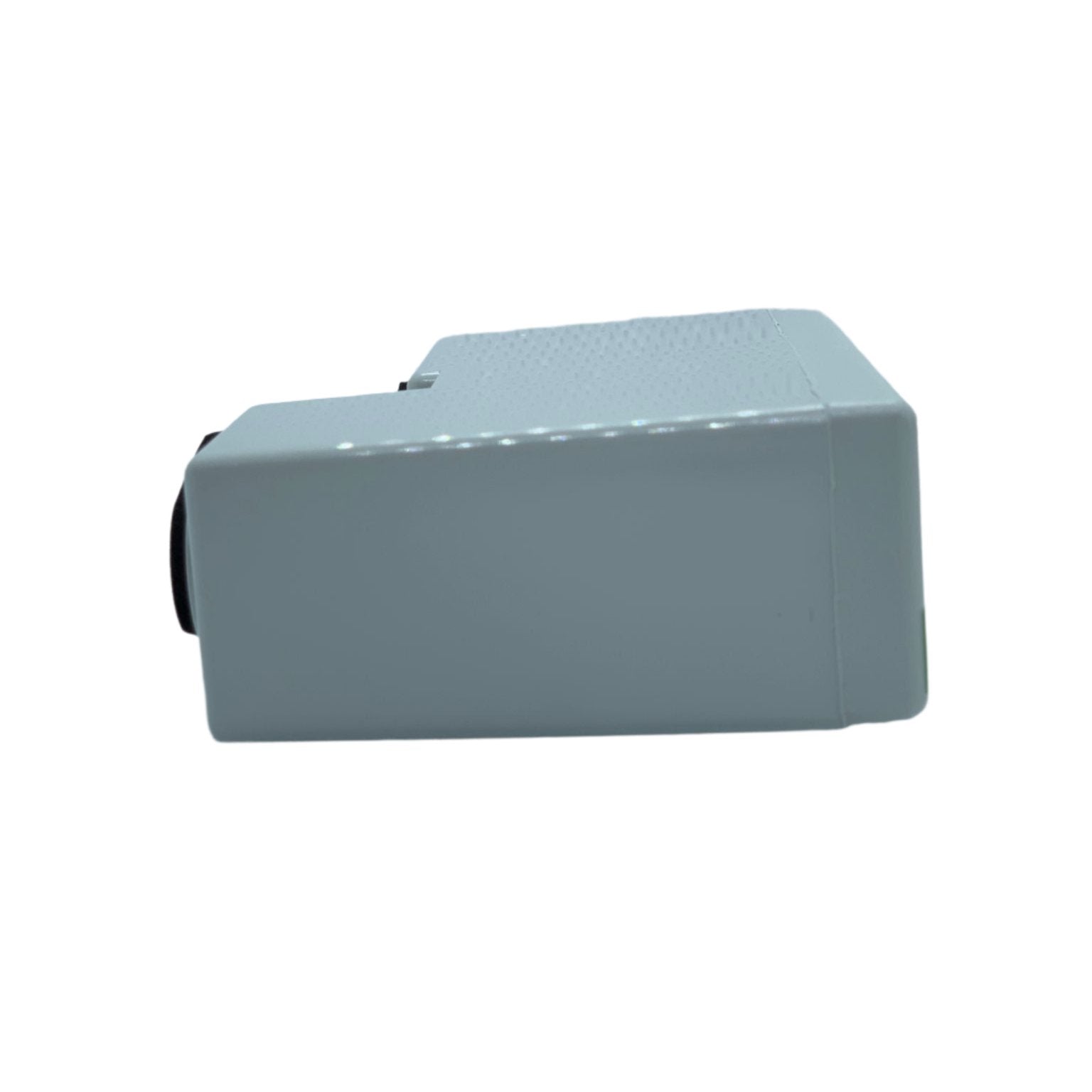

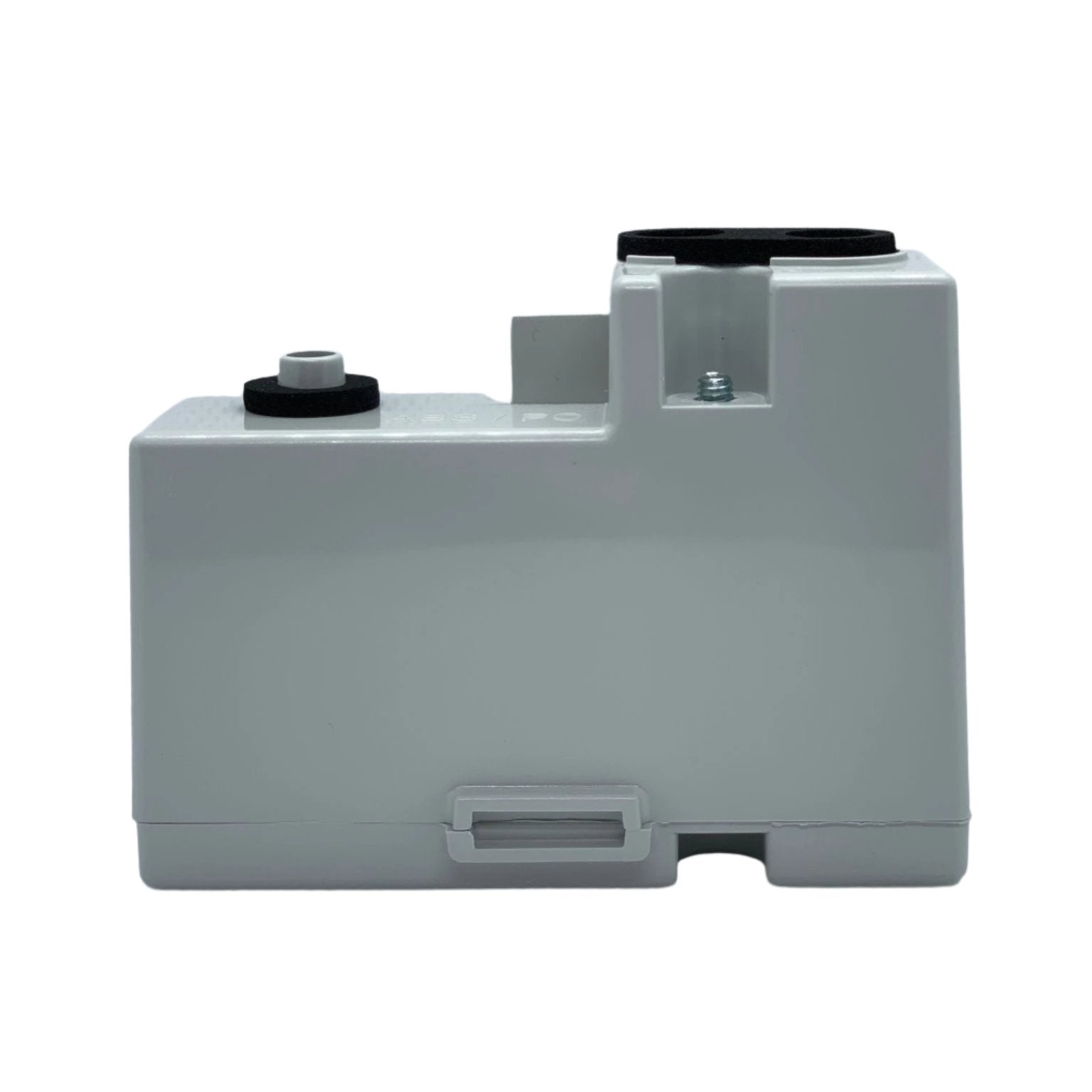

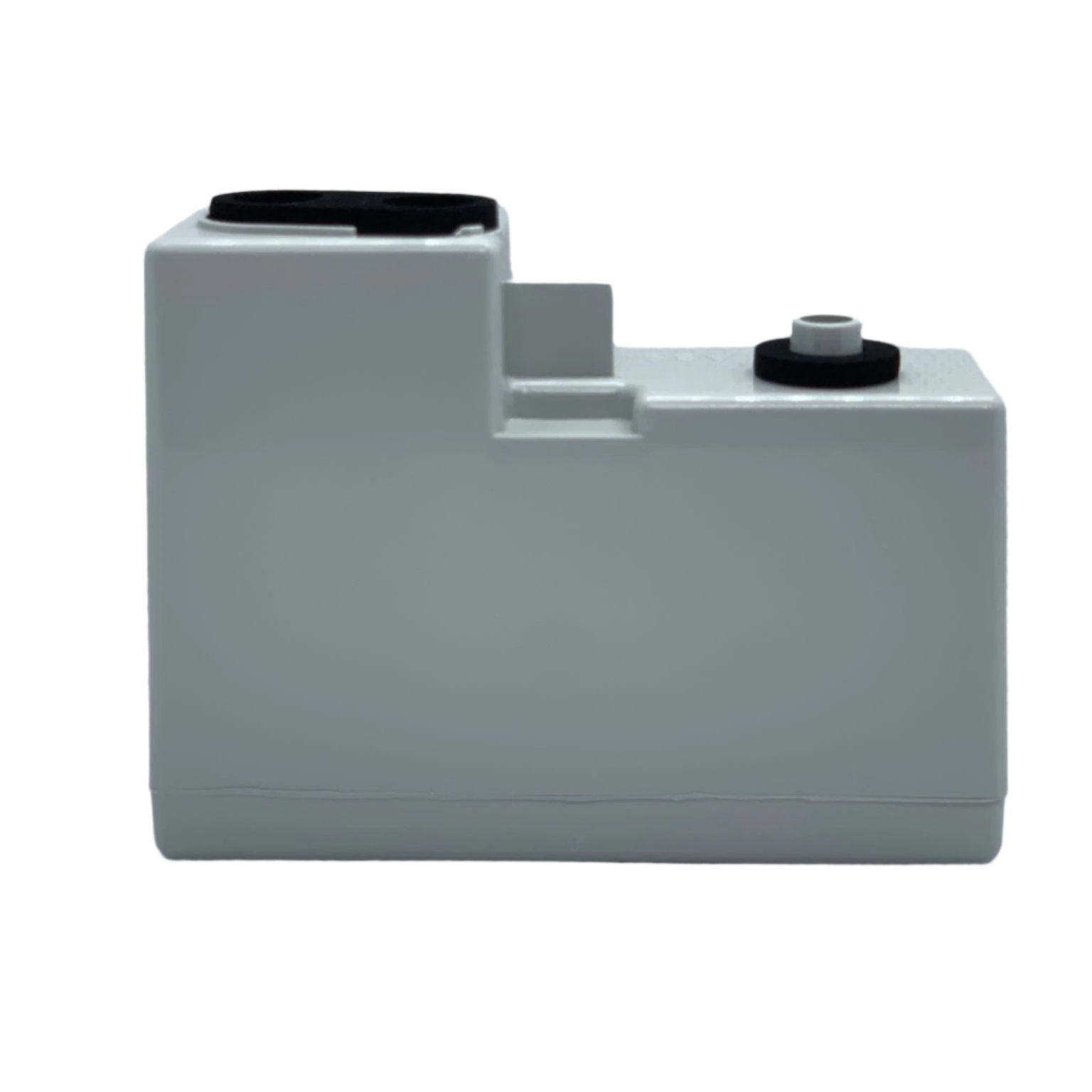

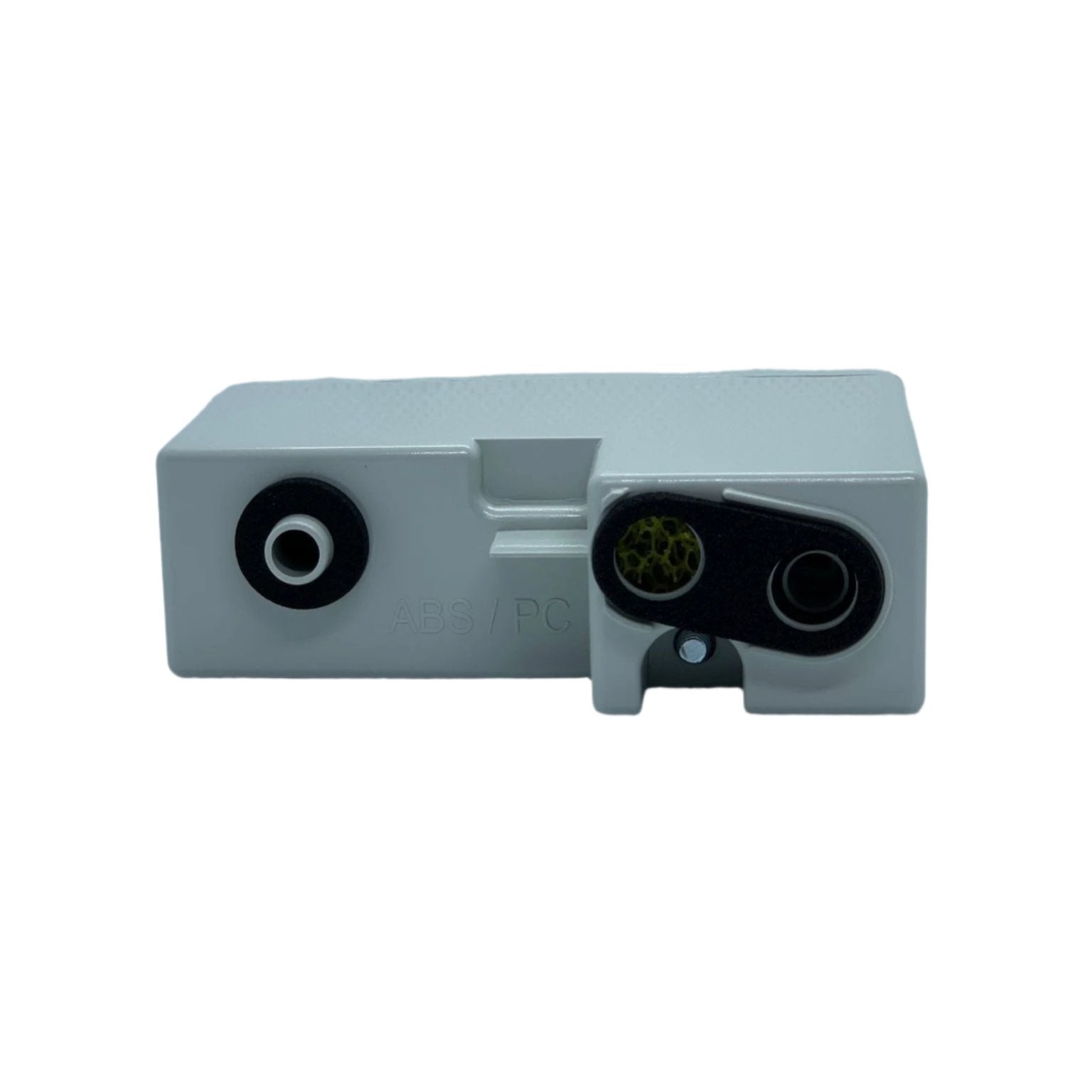

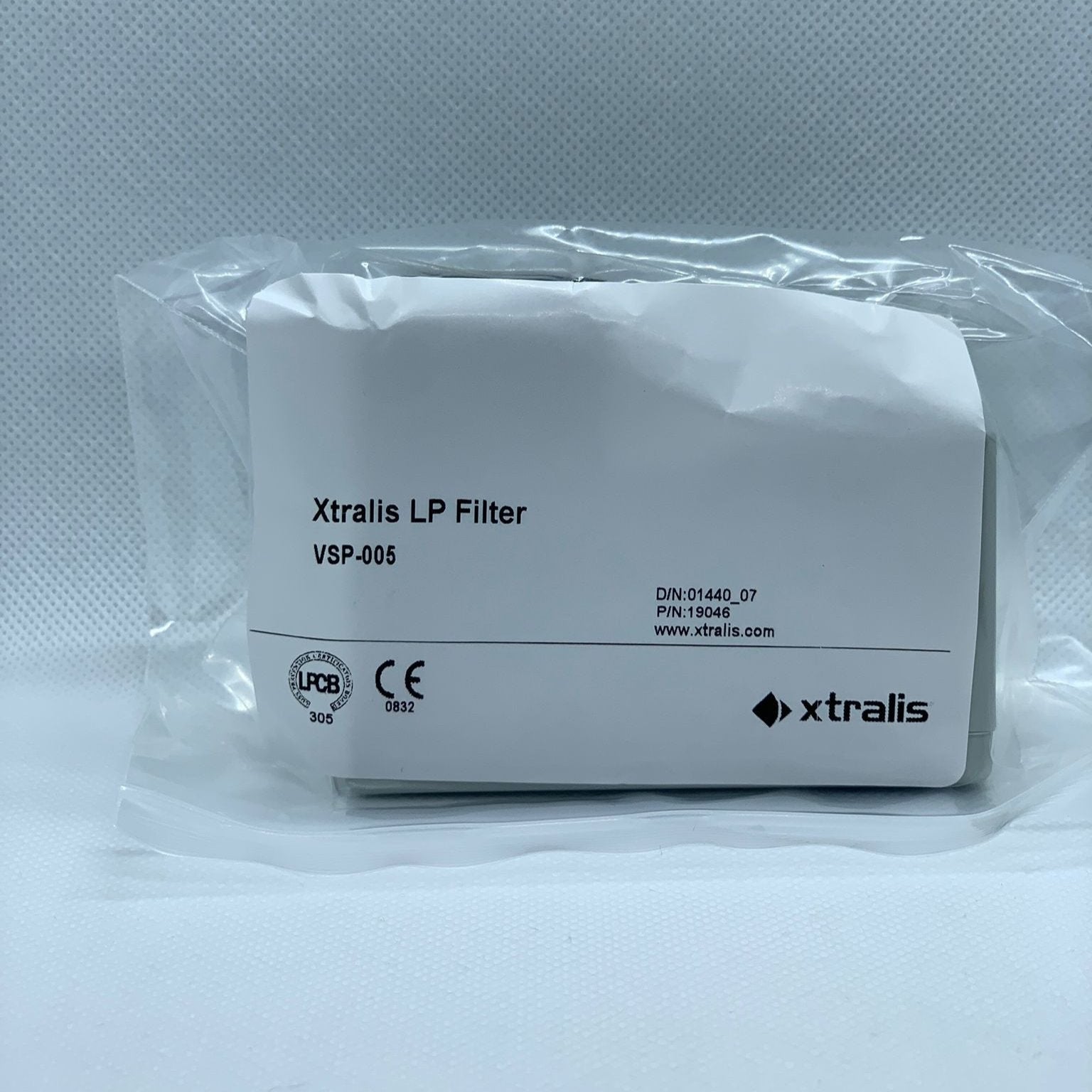

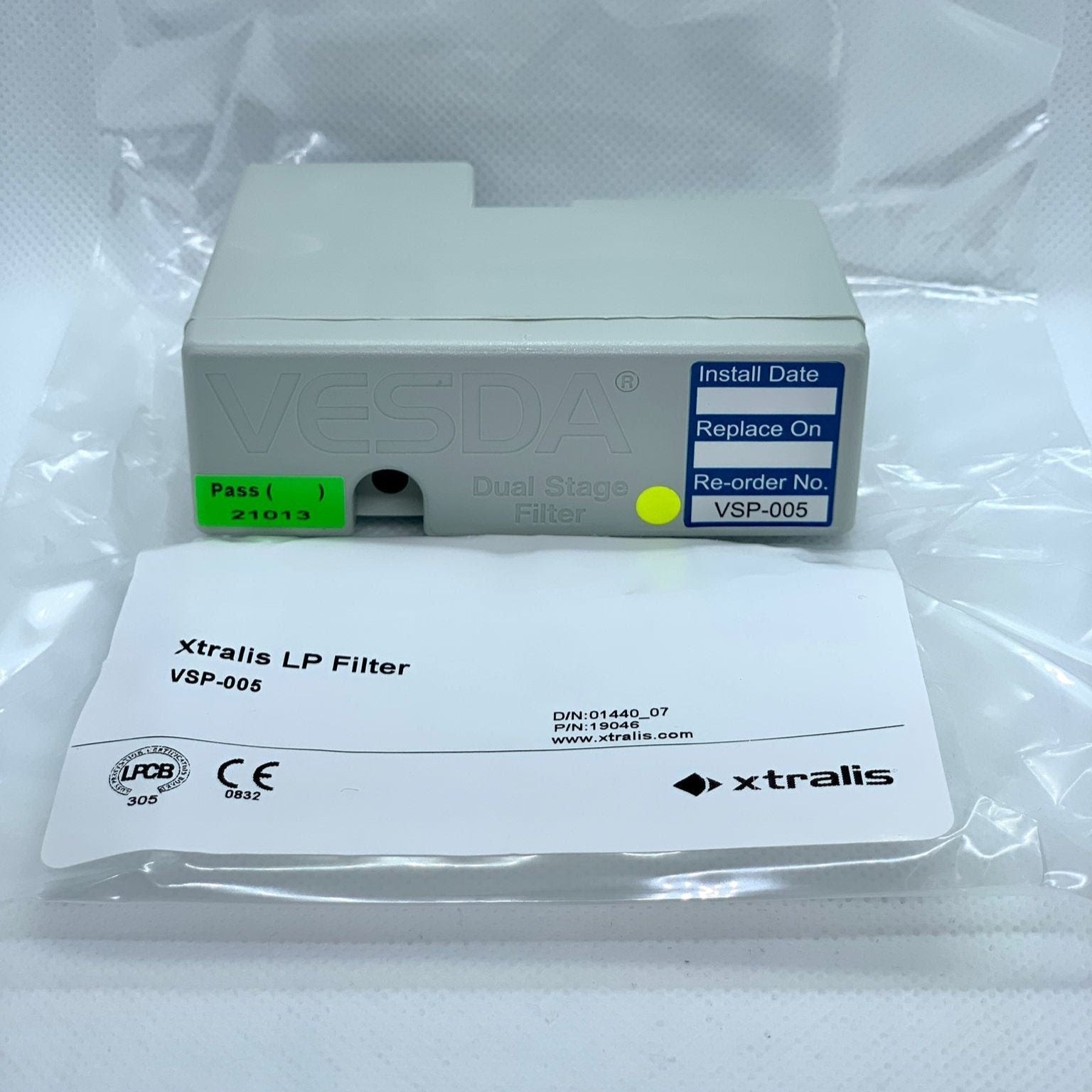

VSP-005 — single replacement filter cartridge for VESDA VLC, VLF, VLP and VLS aspirating smoke detectors.
The filter cartridge sits between the sampling pipe network and the laser detection chamber. Its two-stage element first strips coarse debris out of the sampled air, then passes it through an ultra-fine second stage that also supplies the clean air barrier protecting the chamber optics — the mechanism that lets a VESDA detector hold its calibrated sensitivity across its service life. The cartridge is a sealed, single-use assembly: it is swapped, not cleaned. VSP-005 is supplied as one cartridge; the same cartridge is sold in a 20-pack under order code VSP-025.
Specifications
| Order code |
VSP-005 (single cartridge) |
| Compatible detectors |
VESDA VLC, VLF, VLP and VLS |
| Filtration – first stage |
Removes particles in excess of 20 microns |
| Filtration – second stage |
Ultra-fine; removes more than 99% of particles of 0.3 microns or larger, providing a clean air barrier for optics protection |
| Dimensions (W x H x D) |
90 mm x 66 mm x 50 mm (3.5 in x 2.6 in x 2.0 in) |
| Bulk equivalent |
VSP-025 — pack of 20 cartridges |
Installation notes
-
Not a VESDA-E part: the data sheet lists VSP-005 for VLC, VLF, VLP and VLS only. VESDA-E VEP and VES detectors take the VSP-962 cartridge and VESDA-E VEA takes VSP-972; the parts are not interchangeable.
-
Single use: the cartridge is a sealed two-stage assembly and is replaced rather than cleaned or blown through.
-
Filter is not the aspirator: on VLF detectors the aspirator is a separate spare — VSP-722 for VLF-250, VSP-715 for VLF-500 — so a new filter will not recover airflow lost to a worn aspirator.
Related models
-
VSP-025 — the identical cartridge supplied as a pack of 20 for bulk servicing.
-
VSP-962 — VESDA-E filter cartridge for VEP and VES detectors; a different part.
-
VSP-972 — VESDA-E VEA filter cartridge.
Specifications taken from the Xtralis (Honeywell) data sheet "VESDA Filter Cartridge VSP-005, VSP-025," document 13996_04, part number 29814 (September 2024). Manufacturer specifications are subject to change without notice.
