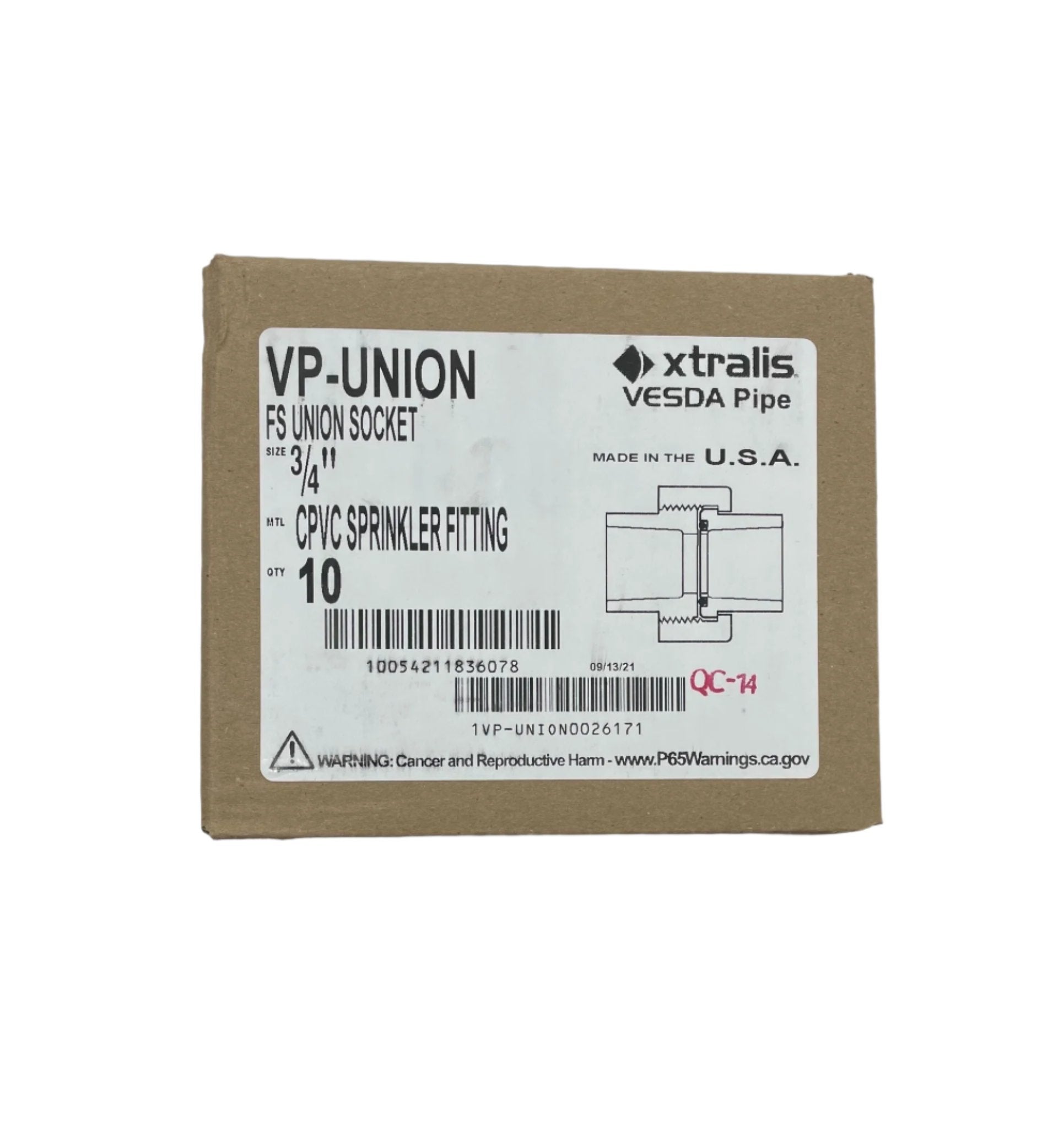

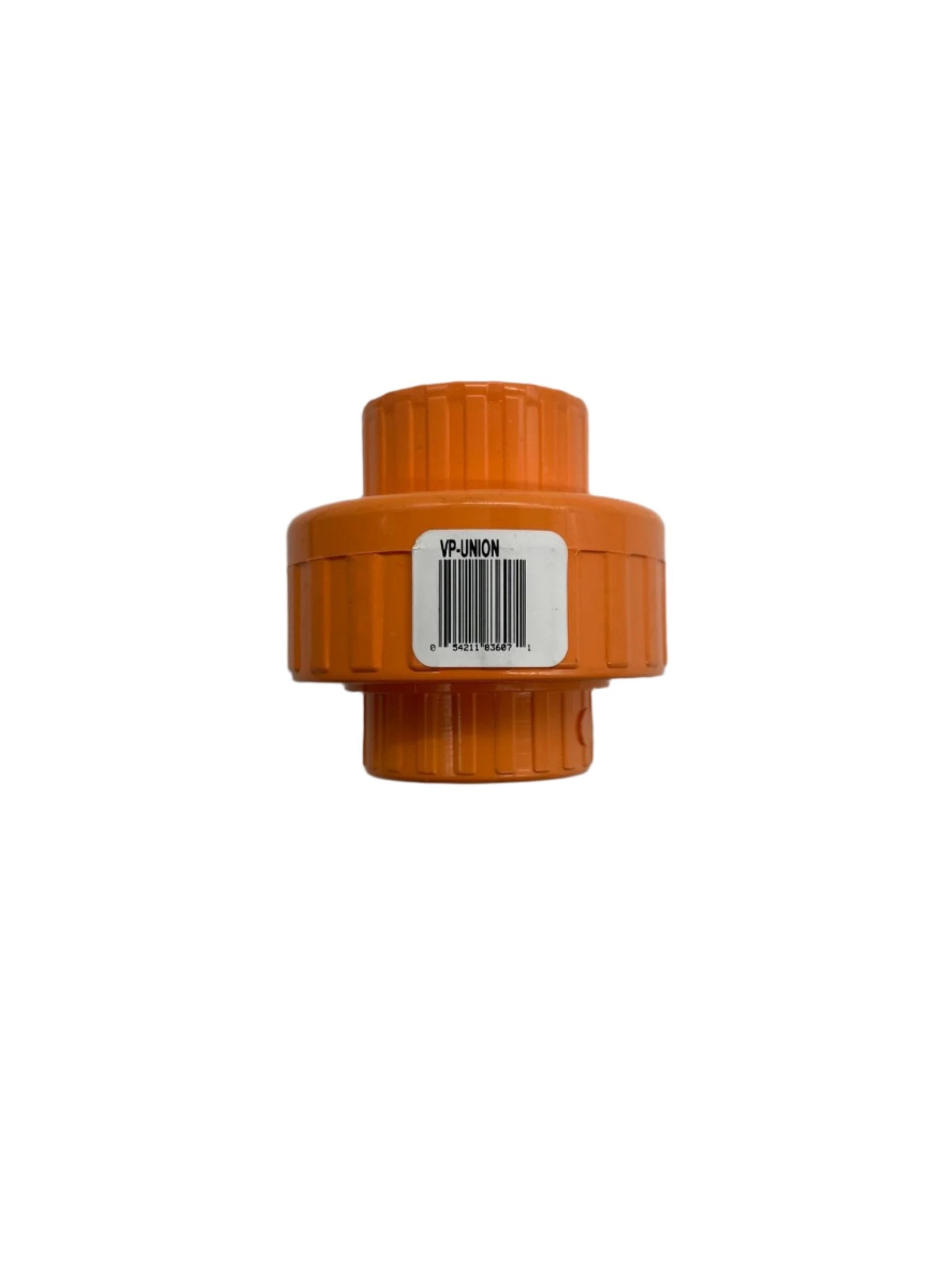

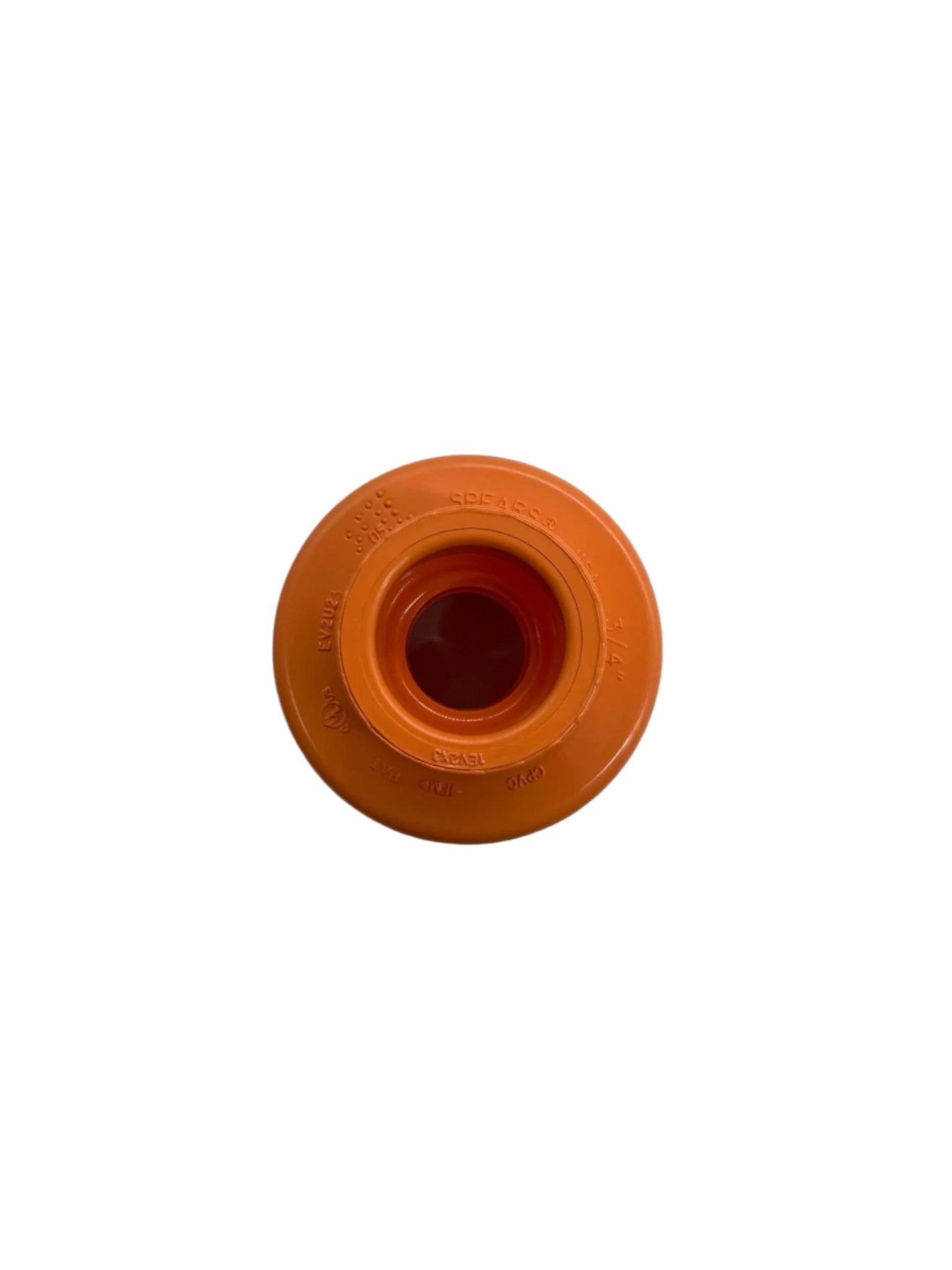

VESDA VP-UNION — 3/4 in. CPVC union for the VESDA air sampling pipe range, supplied ten per box.
An aspirating detector draws air continuously through a sampling pipe network, and the network determines whether the detector performs as designed. Xtralis supplies pipe and fittings as one matched CPVC system so that bore and internal finish stay consistent through every joint, as the ASPIRE modelling software assumes.
- Catalogued by Xtralis as Unions, 3/4 in., 10 per box
- CPVC, matched to the VESDA 3/4 in. (20 mm) pipe range; solvent cement joint
- Pipe built to ASTM F442: 1.050 in. average outside diameter, 0.874 in. average inside diameter
- UL 1887 certified for plenum rated areas; operating range 0°F to 200°F
- UL 94 V-0; limiting oxygen index 60 per ASTM D2863; ULC flame spread 0
- Cell classification 23477 per ASTM D1784; electrically non-conductive
Pack quantity varies by fitting inside this one range, so do not read across: VP-COUP couplings and VP-TEE tees are 15 per box, VP-ELB-45 is 10, VP-ELB-90 is 20 and VP-EC end caps are 25. The Europe range PIP- fittings are 25 mm ABS.
Documents
FAQ
What size pipe does the VP-UNION fit?
VESDA 3/4 in. CPVC sampling pipe, made to 3/4 in. iron pipe size per ASTM F442 (1.050 in. average OD).

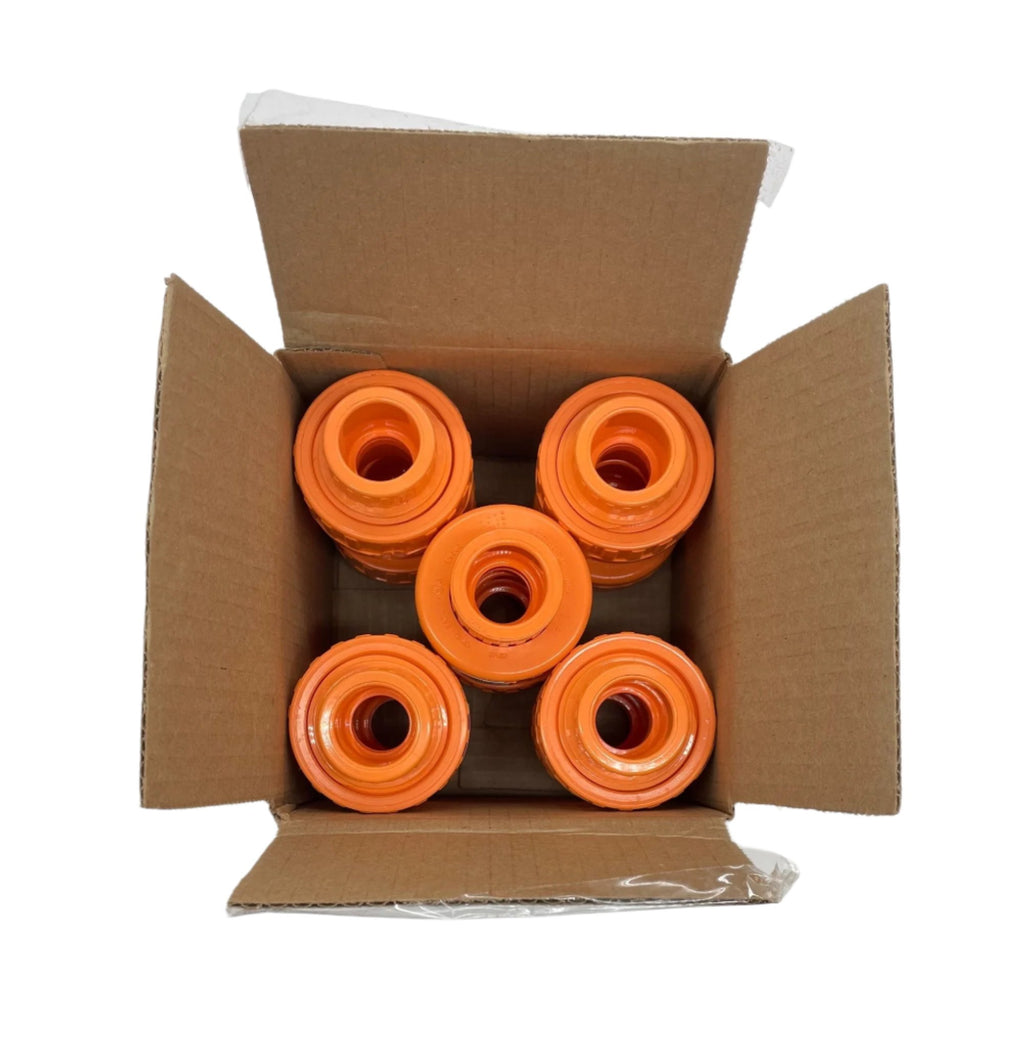

How many come in a box?
Xtralis catalogs VP-UNION unions as 3/4 in., 10 per box.
What temperature range is the pipe system rated for?
VESDA pipe and fittings are suitable for operating temperatures from 0°F to 200°F.
How are the fittings joined?
They are CPVC fittings joined with solvent cement; Xtralis lists VP-CEMENT solvent cement, one pint.
