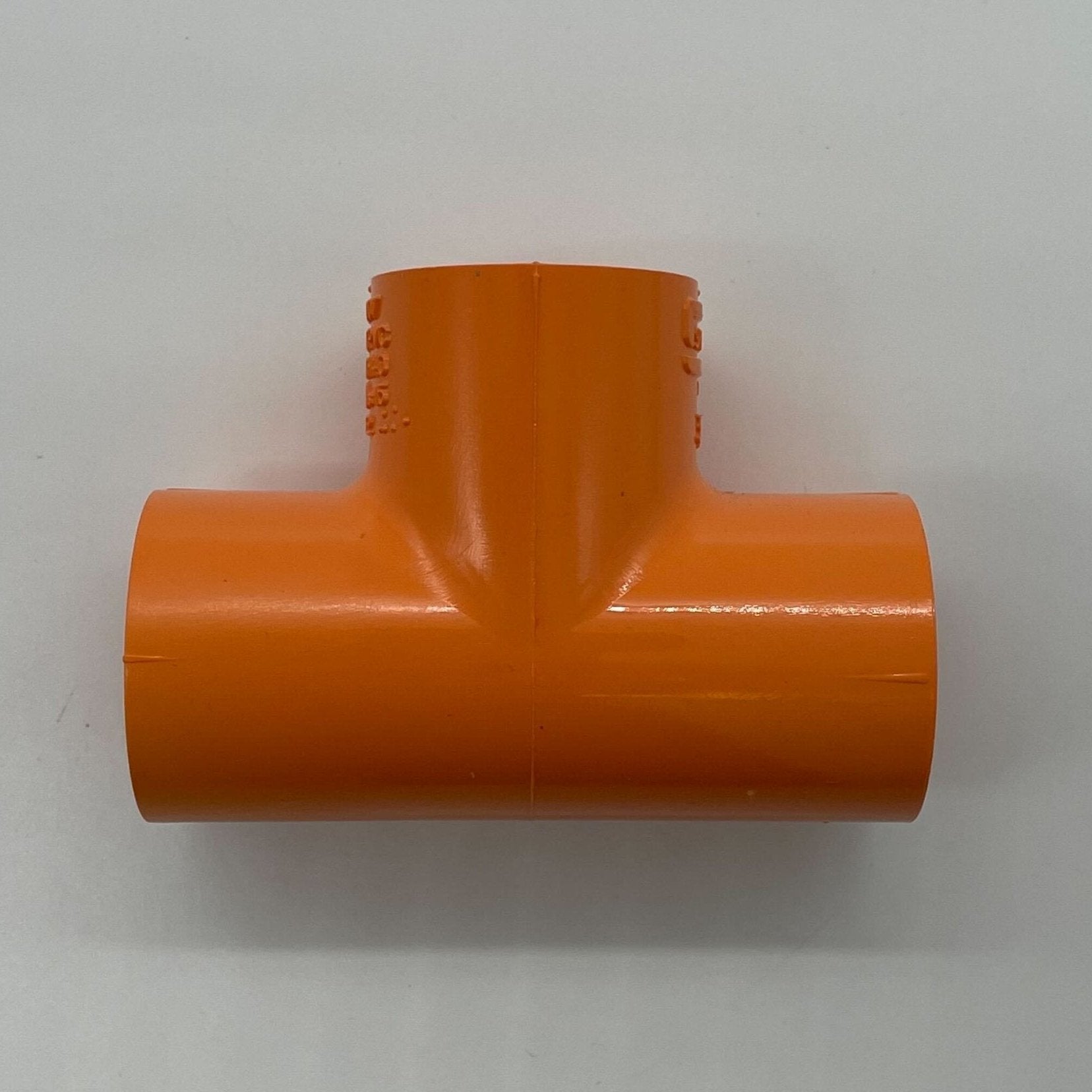

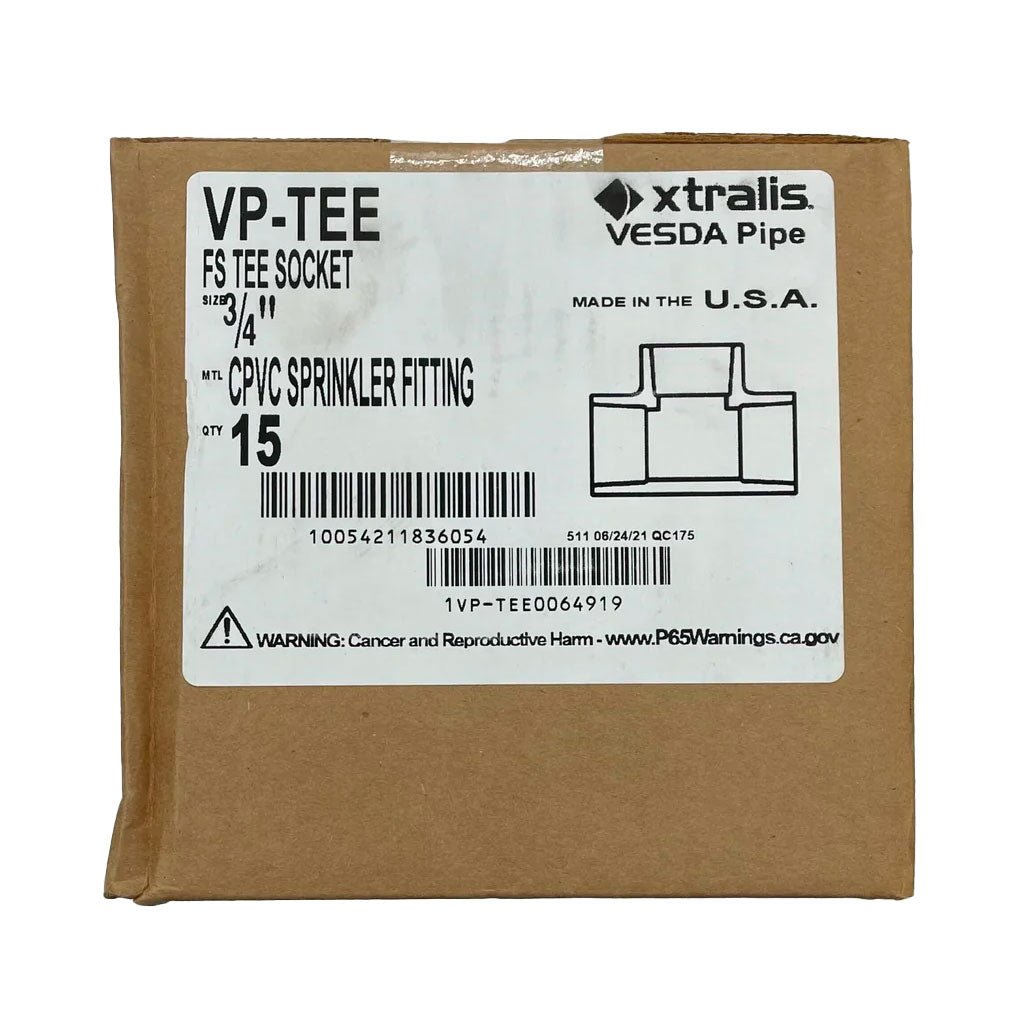

VESDA VP-TEE — 3/4 in. CPVC equal tee for VESDA aspirating smoke detection sampling pipe networks, sold in a box of 15.
VESDA pipe and fittings are an integrated CPVC package built around a standard 3/4 in. inside diameter pipe. The tee joins pipe runs into branches of the sampling network and is assembled with one-step solvent cement. The VESDA pipe range is UL 1887 certified for use in plenum-rated areas, and pipes are pre-labeled to NFPA 72 requirements.
Specifications
| Part number |
VP-TEE |
| Fitting |
Tee, 3/4 in. |
| Material |
CPVC |
| Pack quantity |
15 per box |
| Joining method |
Solvent cement (VP-CEMENT) |
| Plenum use |
UL 1887 certified pipe range |
Installation notes
- Use with VESDA 3/4 in. sampling pipe (VP-P series kits)
- Join with VP-CEMENT solvent cement; cut pipe with VP-CUTTERS
- Support pipe with a VP-CLIP-US clamp every 5 ft
- For a capillary tube branch, use the VP-TEE-FPT 3/4 x 3/4 x 1/2 in. FPT tee instead
Related fittings
- VP-TEE-FPT: tee with 1/2 in. FPT outlet, 10 per box
- VP-UNION: unions, 10 per box
- VP-EC: end caps, 25 per box
- VP-COUP: couplings, 15 per box
Documents
FAQ
How many tees are in a box?
The VP-TEE is sold 15 per box.
What pipe size does it fit?
It is a 3/4 in. CPVC tee for the VESDA pipe range, which is based on a standard 3/4 in. inside diameter pipe.
Can it be used in a plenum?
VESDA pipe and fittings are UL 1887 certified for use in plenum-rated areas.
How are the fittings joined?
With a one-step solvent cement joint; Xtralis offers VP-CEMENT solvent cement in one-pint cans.
