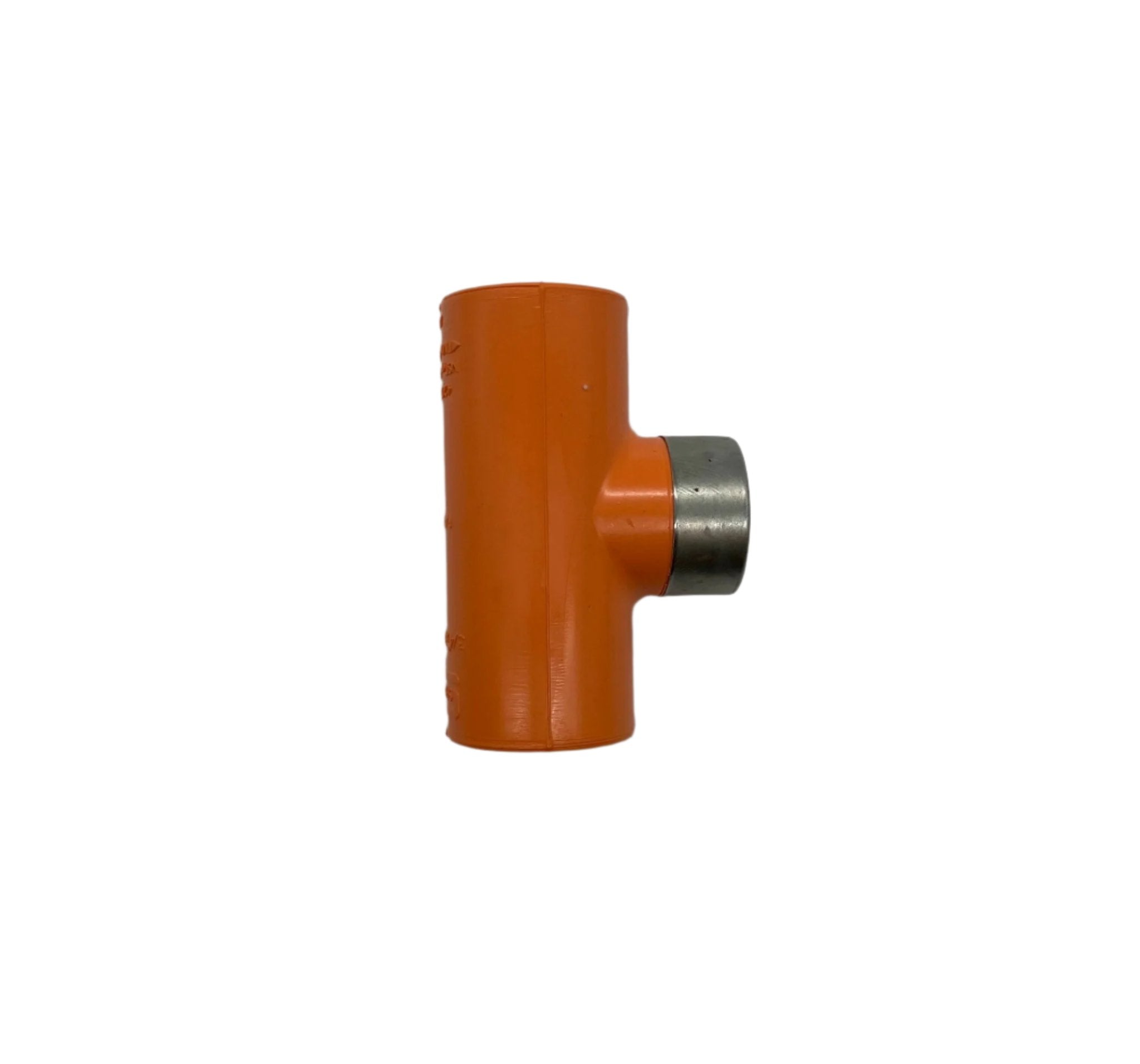

VESDA VP-TEE-FPT is a 3/4 in. x 3/4 in. x 1/2 in. FPT CPVC tee for VESDA aspirating smoke detection sampling pipe, supplied 10 per box.
The two 3/4 in. sockets join the main sampling pipe, while the 1/2 in. female threaded branch provides a take-off point. Xtralis shows this FPT tee in concealed sampling layouts, where capillary tube runs from the sampling pipe to a miniature sampling point in a ceiling tile. Like the rest of the VESDA pipe range, it is made from specialty CPVC and joined with a one-step solvent cement.
Specifications
| Model |
VP-TEE-FPT |
| Size |
3/4 in. x 3/4 in. x 1/2 in. FPT |
| Material |
CPVC |
| Pack |
10 per box |
| Pipe system |
3/4 in. (20 mm) iron pipe size per ASTM F442 |
| Pipe average ID |
0.874 in. (22.5 mm) |
| Operating temperature |
0°F to 200°F |
| Flammability |
UL 94 V-0 |
| Plenum |
UL 1887 certified for plenum rated areas |
Installation notes
- Join to 3/4 in. VESDA sampling pipe with solvent cement (VP-CEMENT)
- Use the 1/2 in. FPT branch for capillary tube sampling to concealed sample points
- Support the pipe with VP-CLIP-US clamps, one required for each 5 feet of pipe
- Verify the pipe network design with Xtralis ASPIRE pipe modeling software
Related models
- VP-TEE: 3/4 in. tee, 15 per box
- VP-COUP: 3/4 in. coupling, 15 per box
- VP-ELB-90 and VP-ELB-45: 3/4 in. elbows
- VP-EC: 3/4 in. end cap, 25 per box
Documents
FAQ
What size is the VP-TEE-FPT?
It is a 3/4 in. x 3/4 in. x 1/2 in. FPT tee: two 3/4 in. sockets for VESDA sampling pipe and a 1/2 in. female threaded branch. It is sold 10 per box.
What is the threaded branch used for?
Xtralis shows the FPT pipe tee in concealed sampling layouts, where capillary tube runs from the sampling pipe to a miniature sampling point (E700-SP) in the ceiling tile.
Can it be used in plenum spaces?
Yes. VESDA CPVC pipe and fittings are UL 1887 certified for use in plenum rated areas and are rated for 0°F to 200°F.
How are the joints made?
VESDA piping is assembled with a one-step solvent cement joint; Xtralis lists VP-CEMENT solvent cement for the system.
