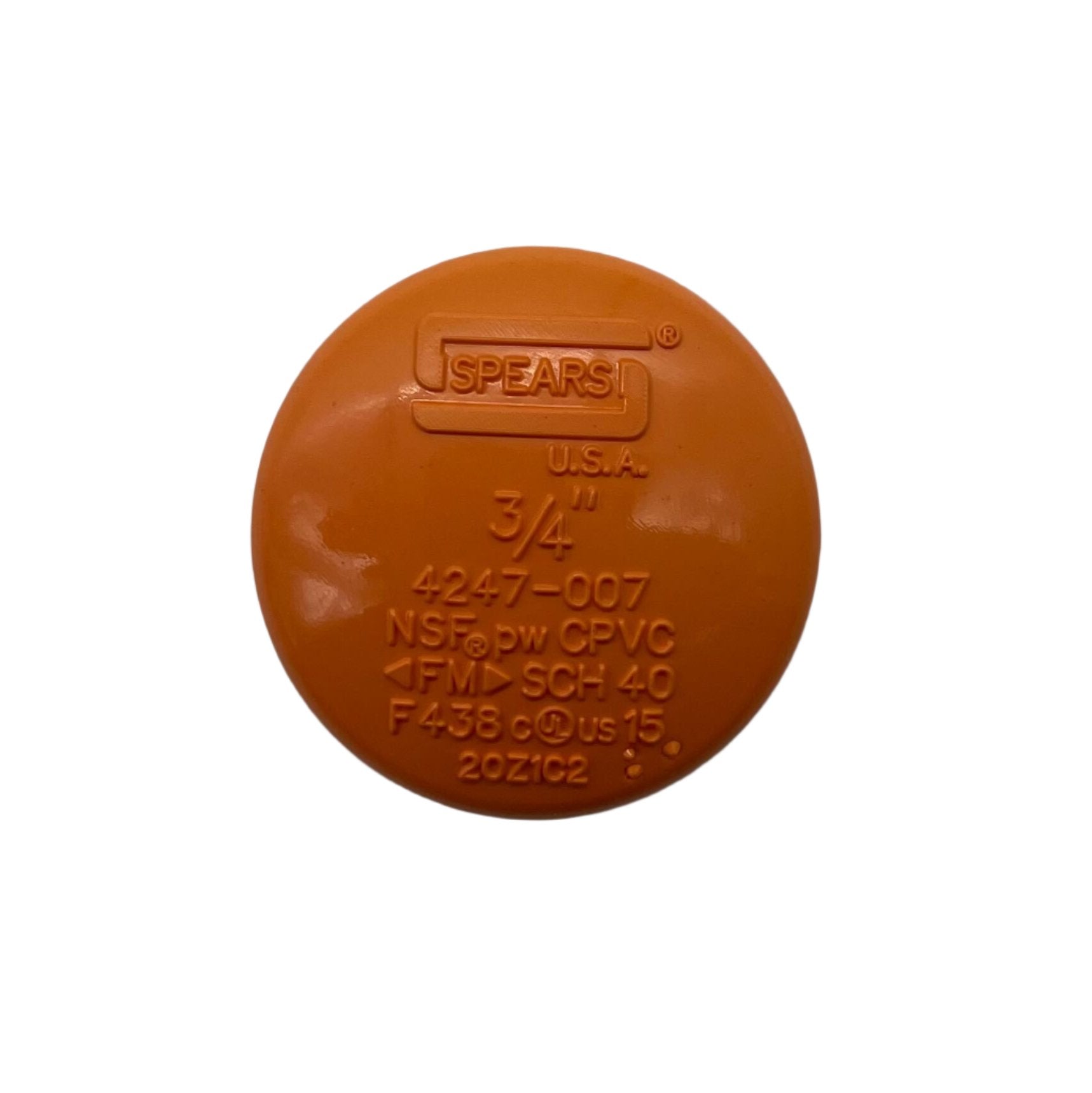

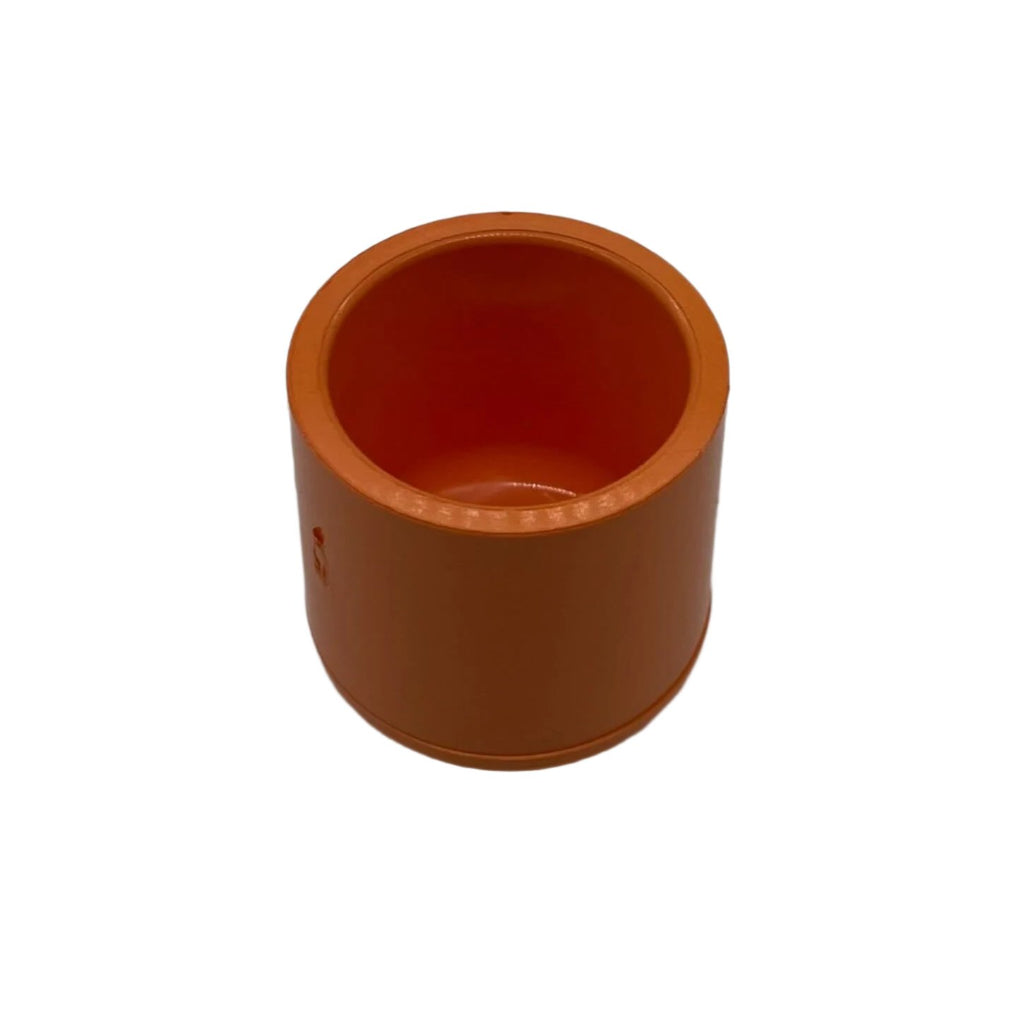

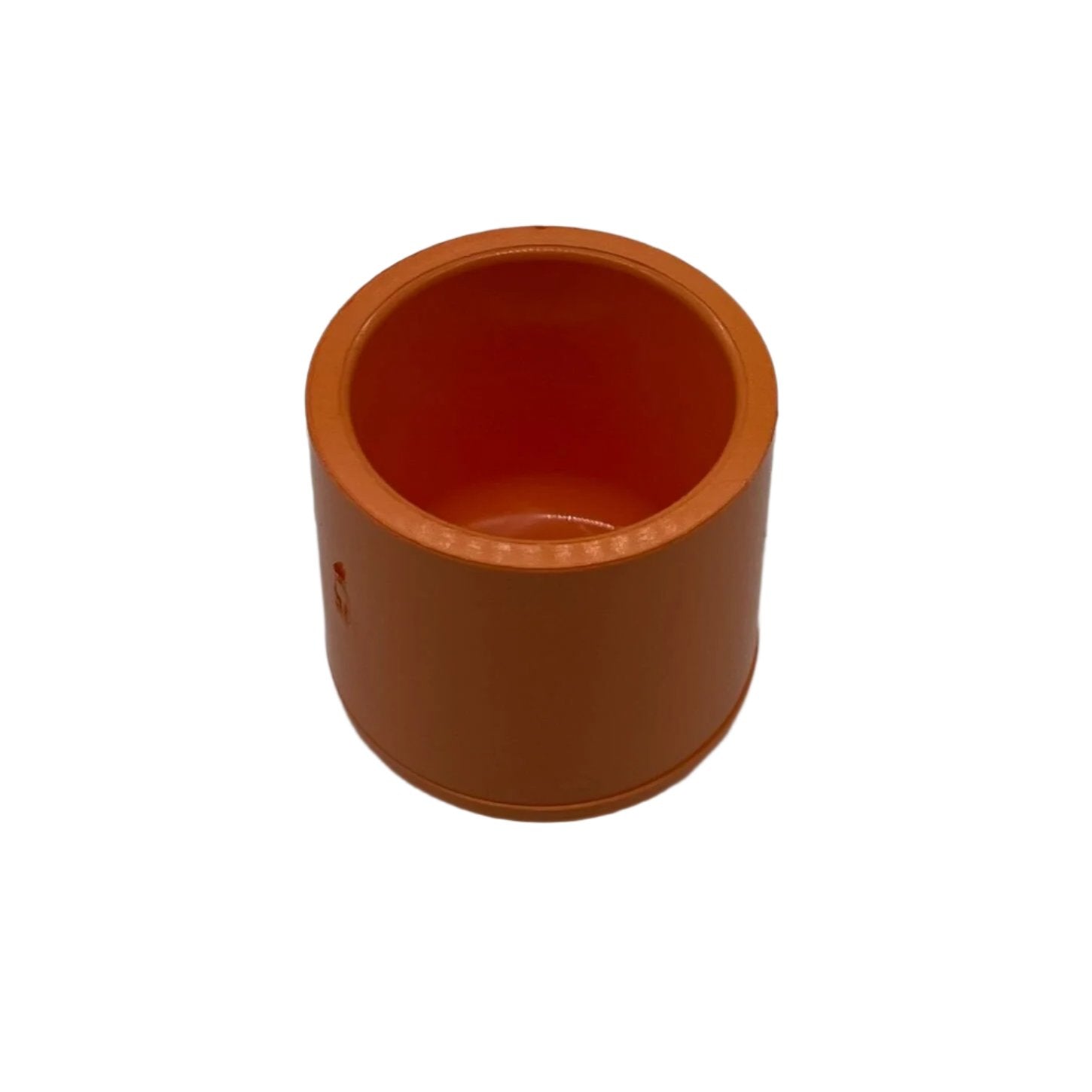

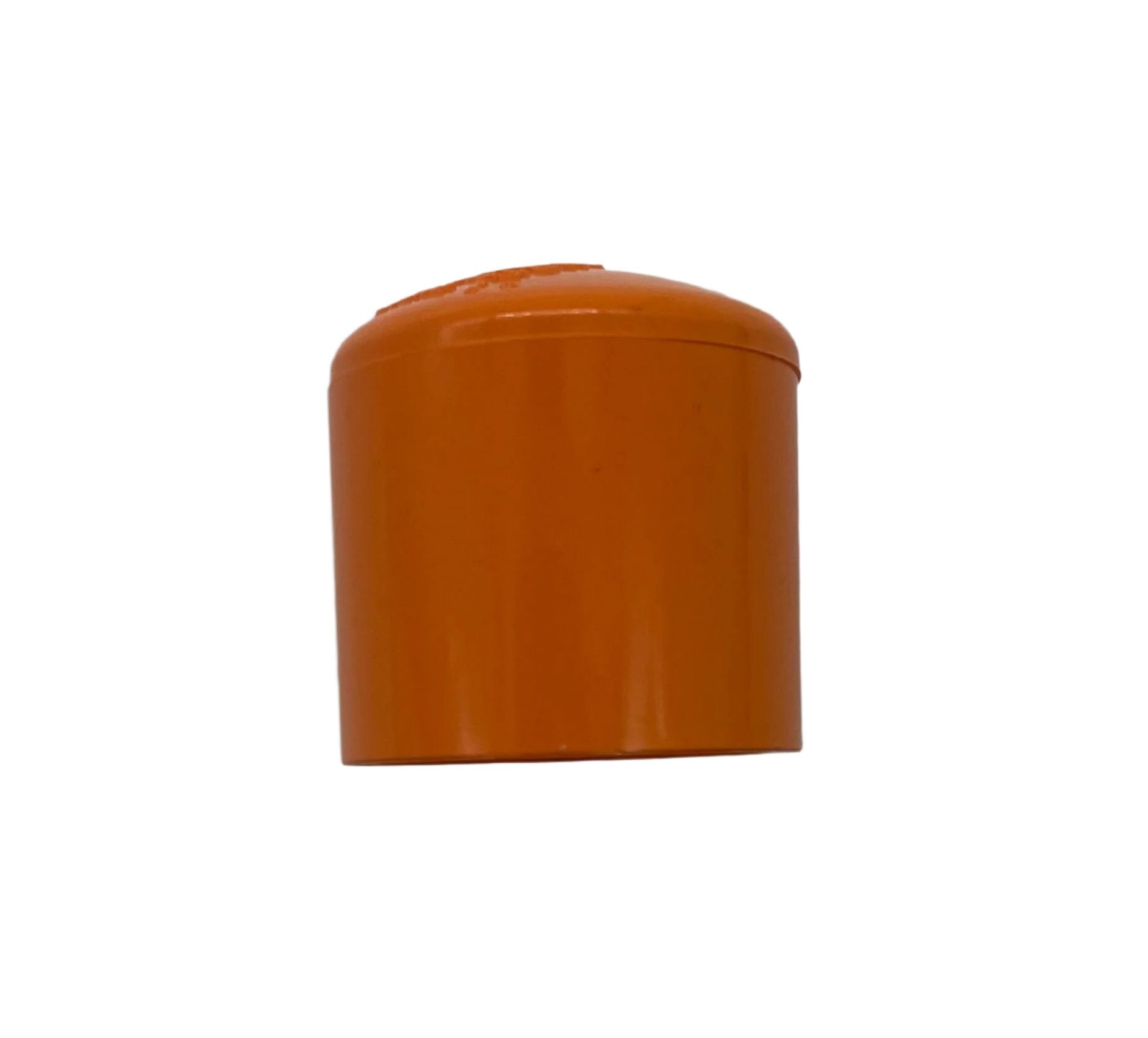

VESDA VP-EC — 3/4" CPVC end cap for VESDA aspirating sampling pipe, supplied 25 per box.
Transport time and per-hole airflow in an air sampling network are calculated on the assumption that each branch is sealed at its end. An open or leaking pipe end lets the aspirator draw unrestricted air from the wrong place, diluting smoke at the detector and invalidating the ASPIRE model the system was commissioned against. The VP-EC solvent-welds onto the pipe in the same CPVC compound.
- 3/4" nominal CPVC, matching VESDA pipe in 3/4" iron pipe size dimensions per ASTM F442
- Mating pipe 1.050" average OD, 0.874" average ID
- Operating temperature range 0°F to 200°F
- UL 1887 certified for plenum-rated areas; UL 94 V-0; limiting oxygen index 60 per ASTM D2863

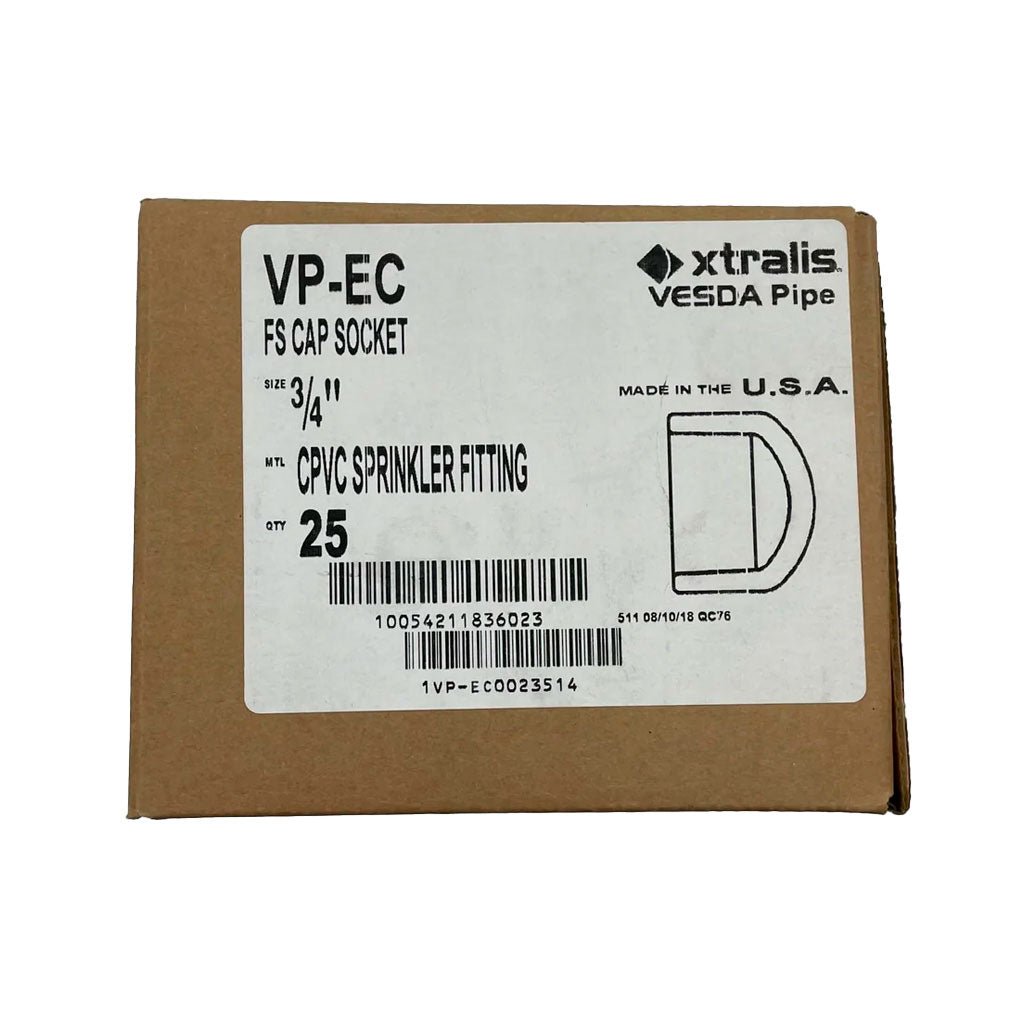

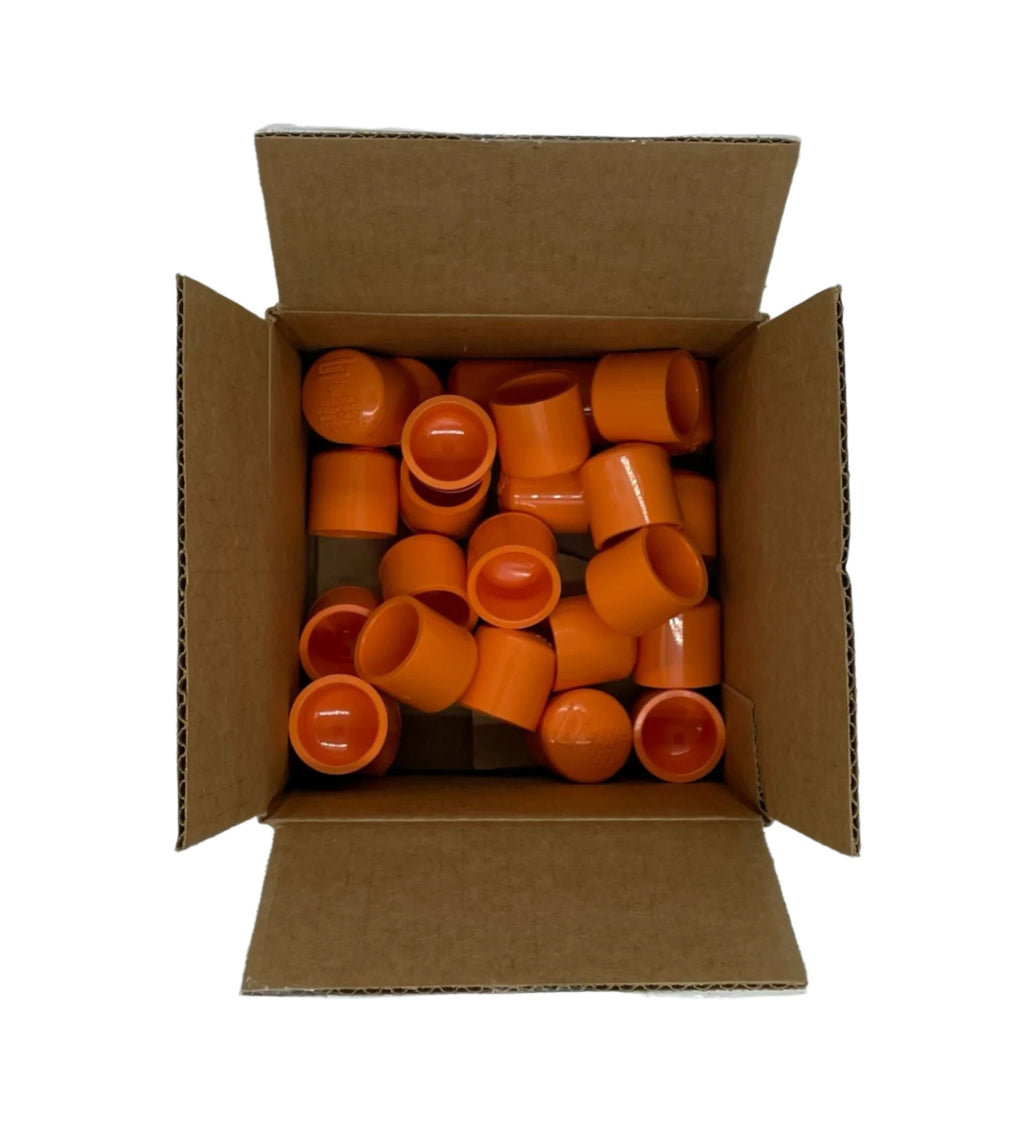

- Sold 25 caps per box
A quantity of one is a box of 25 caps, not a single cap. This fitting suits the 3/4" CPVC VESDA pipe range only — it will not fit the 25 mm ABS range. Solvent cement (VP-CEMENT) is a separate part number.
