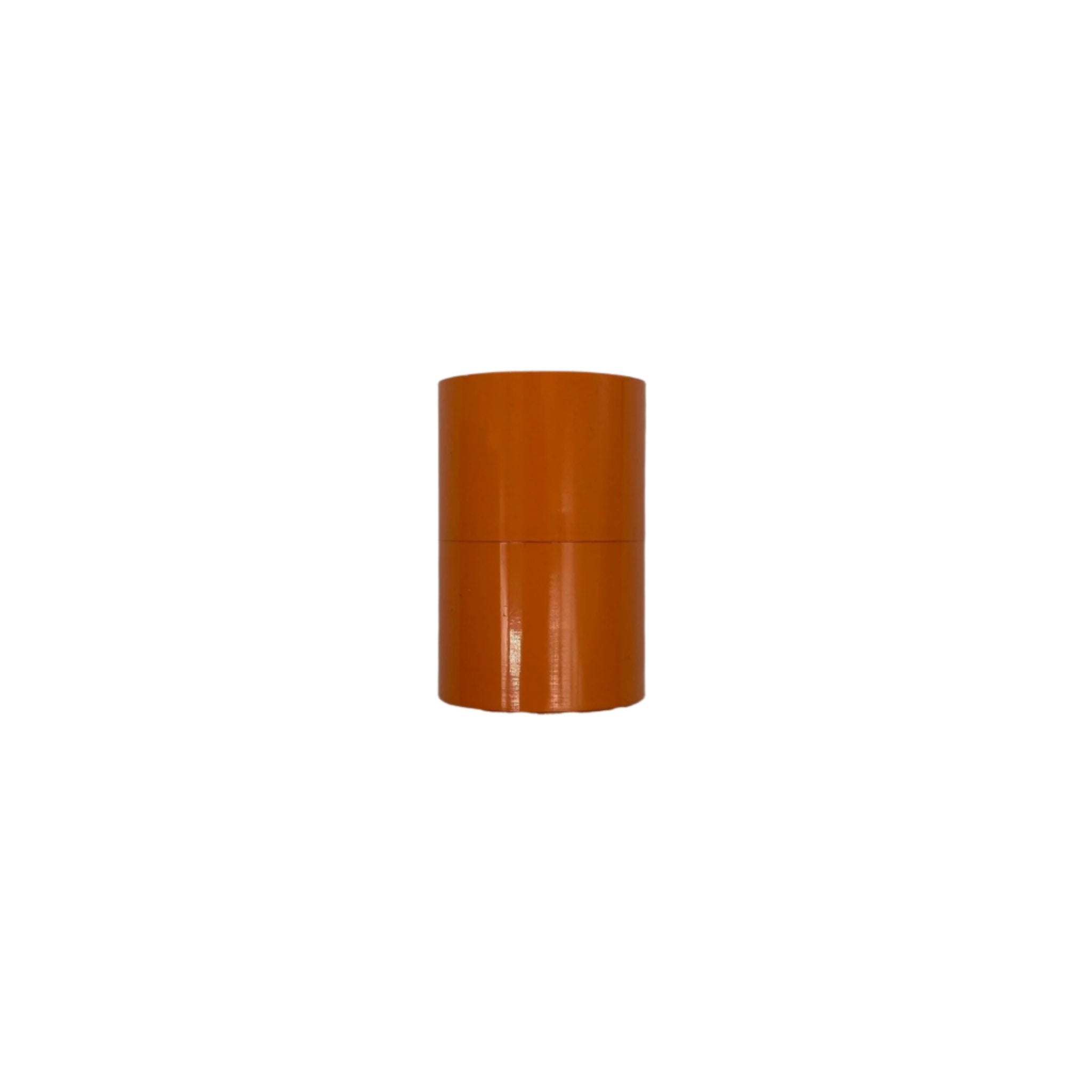

VESDA VP-COUP — 3/4" CPVC slip coupling for VESDA aspirating smoke detection sampling pipe, supplied 15 per box.
A VESDA sampling network uses a dedicated CPVC pipe range rather than ordinary conduit, because the aspirator is modeled against a known bore and a known leak rate. This coupling joins two lengths of sampling pipe in a solvent-cemented socket, keeping the wall smooth and the run airtight.
- Fits VESDA 3/4" (20 mm) iron pipe size sampling pipe per ASTM F442
- 1.050" average outside diameter, 0.874" average inside diameter

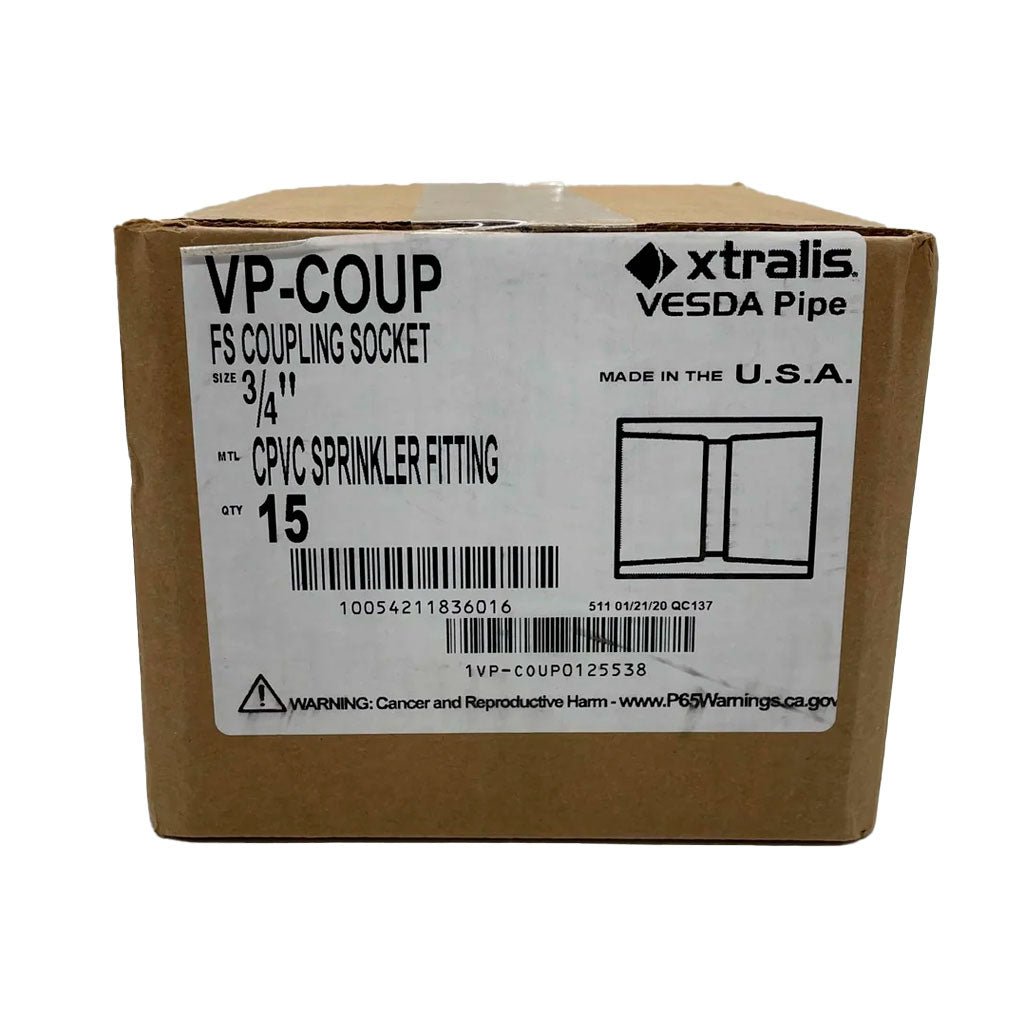

- Supplied 15 per box
- CPVC, UL 1887 certified for use in plenum rated areas
- UL 94 V-0 flammability rating, limiting oxygen index 60 per ASTM D2863
- Operating temperature range 0 °F to 200 °F
- Solvent cemented joint, made up with VP-CEMENT
Order the right fitting: VP-UNION is the demountable union, VP-ELB-45 and VP-ELB-90 the elbows, VP-TEE the branch tee and VP-EC the end cap. VP-CLIP-US is the pipe support clamp, required every 5 feet of pipe and not a joining fitting at all.
Documents
FAQ
How many couplings are in a box?

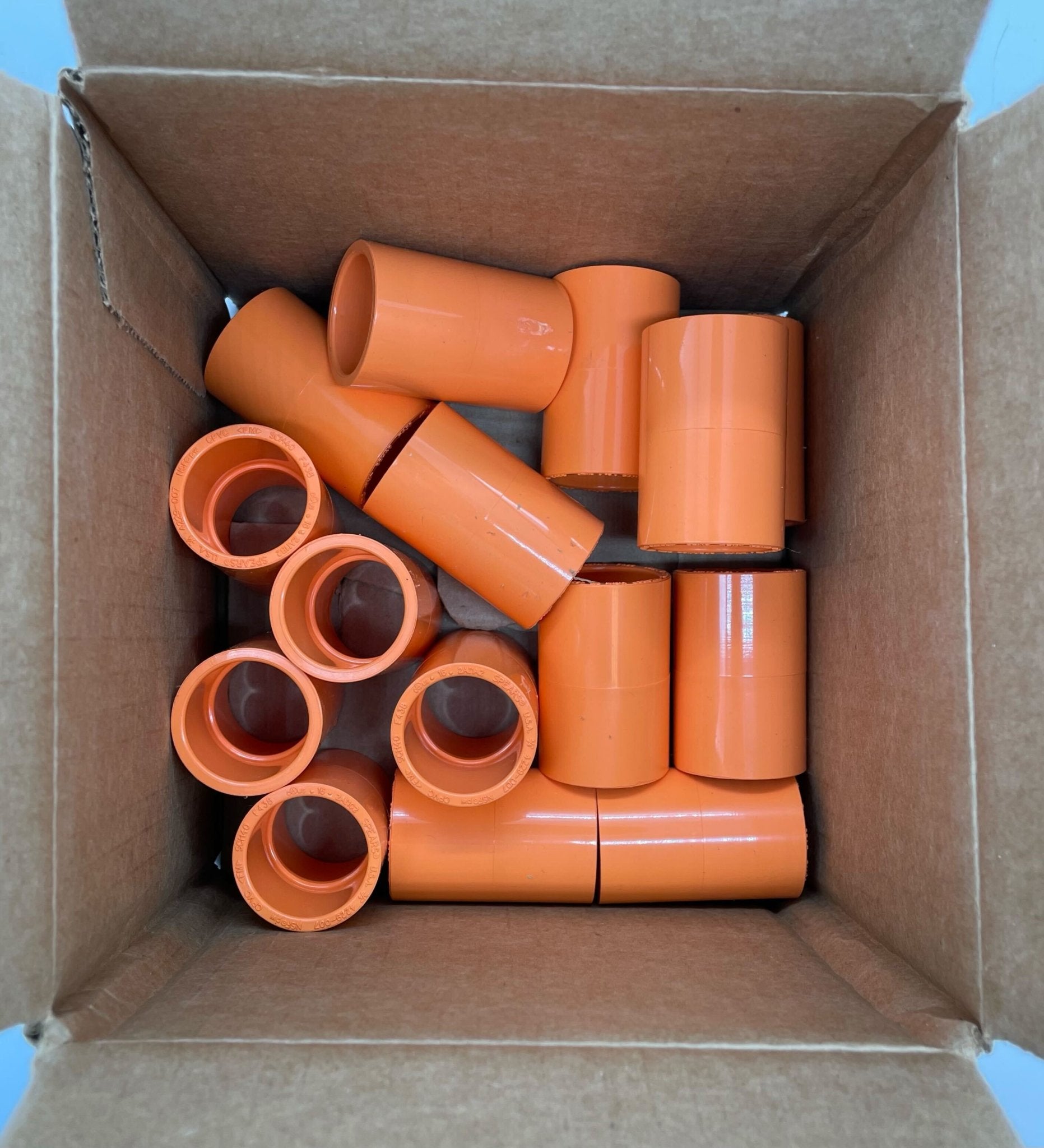

Xtralis supplies the VP-COUP 3/4 in. coupling 15 per box.
What pipe does it fit?
VESDA sampling pipe made to 3/4 in. iron pipe size per ASTM F442, with a 1.050 in. average OD and 0.874 in. average ID.
How is the joint made?
VESDA piping uses a one-step solvent cement joint; VP-CEMENT is the solvent cement in the system.
Can it be used in plenum spaces?
Yes. VESDA CPVC pipe and fittings are UL 1887 certified for plenum rated areas and are rated for 0°F to 200°F.
