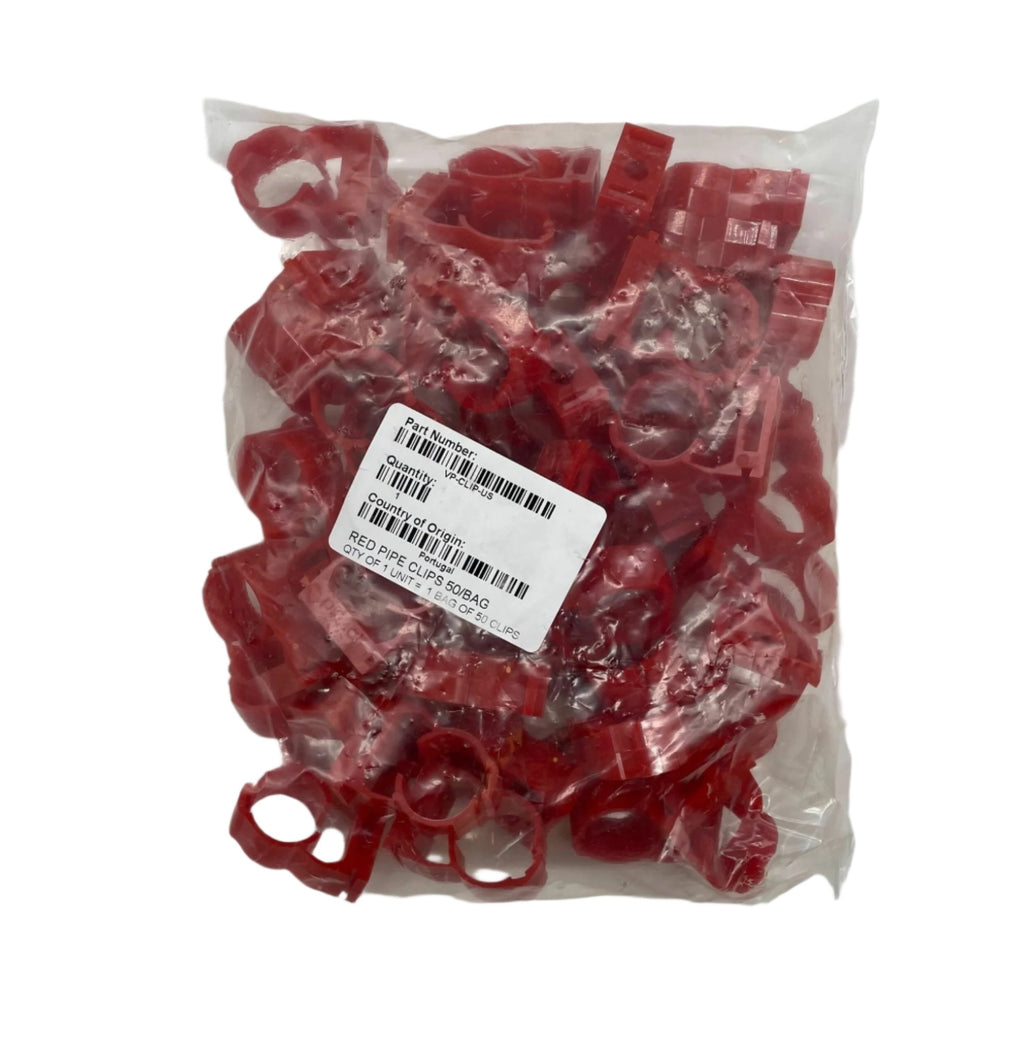

VESDA VP-CLIP-US — pipe support clamp for 3/4 in. CPVC VESDA aspirating sampling pipe.
An aspirating network performs the way ASPIRE modelled it only if the pipe stays where the design put it. The VP-CLIP-US is the Xtralis clamp that fixes sampling pipe to the structure. Xtralis specifies one clamp for every 5 feet of pipe run, so the clamp count follows total pipe length rather than the number of sampling holes.
- Suits 3/4 in. nominal VESDA CPVC sampling pipe, average outside diameter 1.050 in. (26.7 mm)
- That pipe is made to 3/4 in. iron pipe size per ASTM F442, average inside diameter 0.874 in. (22.5 mm)
- One clamp required for each 5 feet of pipe run
- VESDA pipe and fittings are UL 1887 certified for plenum-rated areas
- The pipe system it supports is rated 0 to 200 °F
It is a support clamp, not a sampling device. F-PC sampling hole clips fit drilled sampling holes, VP-COUP couplings and VP-UNION unions join pipe, VP-EC end caps close a run, and VSP-TP-KIT-US gives the benchmark test point.
Documents
FAQ
How many clamps do I need?
Xtralis specifies one VP-CLIP-US for each 5 feet of pipe.
What pipe does it fit?
3/4 in. (20 mm) nominal VESDA CPVC sampling pipe with an average outside diameter of 1.050 in. (26.7 mm).
Can VESDA pipe be used in plenum spaces?
Yes. VESDA pipe and fittings are UL 1887 certified for use in plenum-rated areas.
