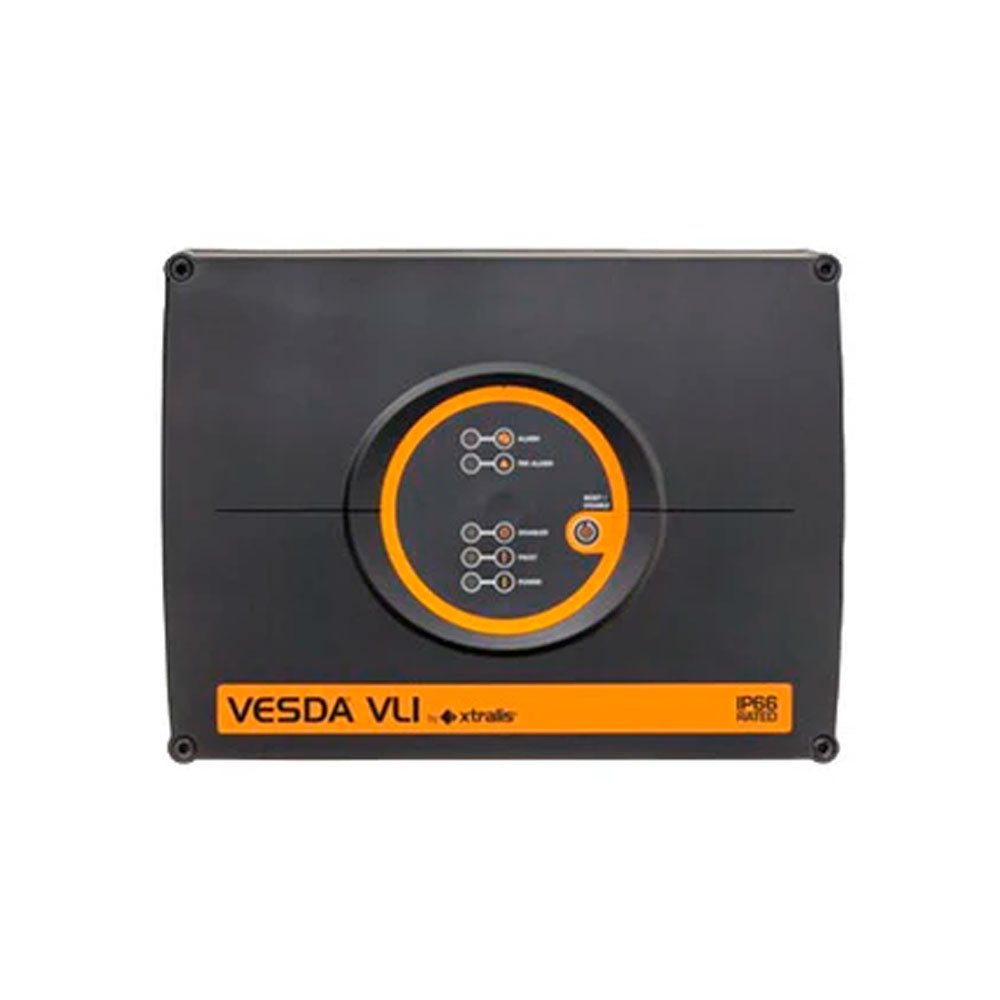

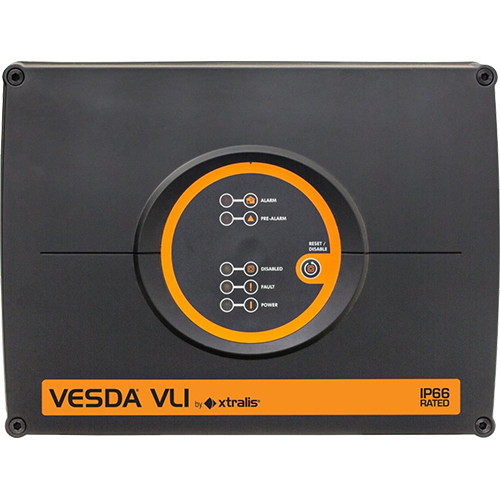

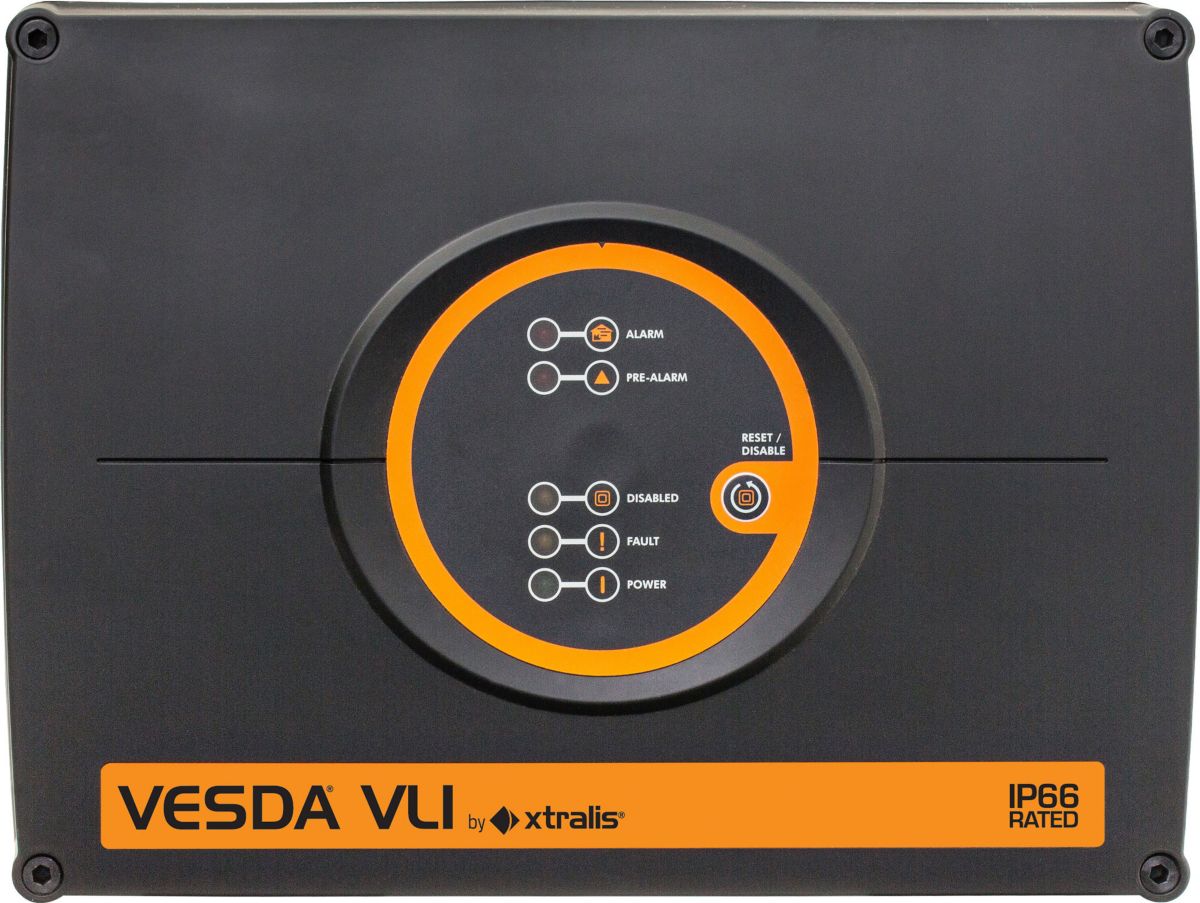

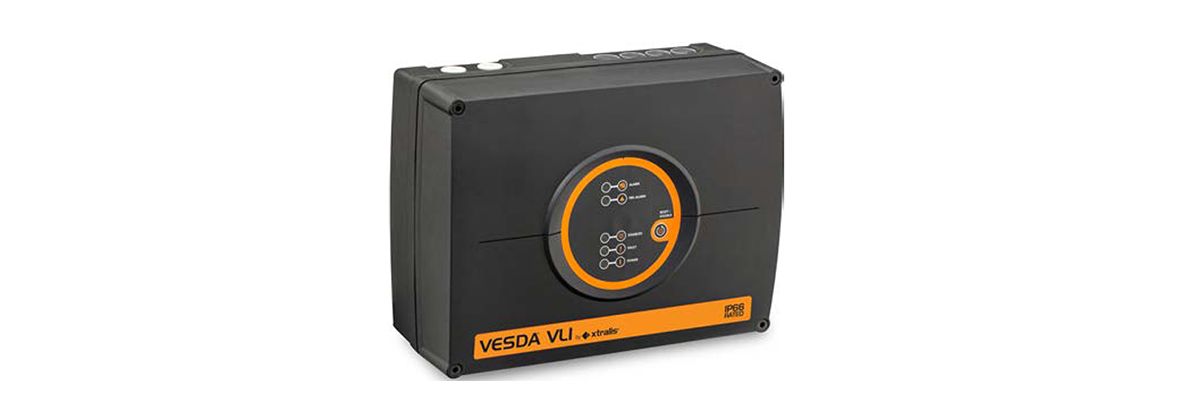

The Vesda VLI-885 is the VESDA VLI laser industrial aspirating smoke detector supplied with a VESDAnet card. It is built for industrial and harsh environments and covers up to 2,000 m² (21,520 sq. ft.) through up to four inlet pipes.
Air is drawn through the pipe network by a high-efficiency aspirator and passes four sets of ultrasonic flow sensors before entering the Intelligent Filter, which splits the sample so most of it passes through a HEPA medium while filter loading is continuously monitored. A sub-sampling probe (inertial separator), a secondary filter and a clean-air barrier protect the laser detection chamber, which supports absolute detection without re-calibration. Status, alarms, service and fault events are logged with time and date and reported through relays and, on this model, across VESDAnet.
Specifications
| Model |
VLI-885 (VESDA VLI with VESDAnet) |
| Supply voltage |
18 to 30 VDC |
| Current at 24 VDC |
415 mA nominal, 440 mA in alarm |
| Power at 24 VDC |
10 W nominal, 10.5 W in alarm |
| Coverage |
Up to 2,000 m² (21,520 sq. ft.) |
| Inlet pipes |
Up to 4 |
| Pipe length |
360 m (1,181 ft) total; 120 m (394 ft) max single pipe |
| Sensitivity range |
0.05% to 20.0% obs/m (0.015% to 6.575% obs/ft) |
| Alarm thresholds |
Alert, Action, Fire 1, Fire 2 |
| Relays |
5 (Fire, Fault, 3 configurable), 2 A at 30 VDC |
| Interfaces |
VESDAnet, USB configuration port, general-purpose input |
| Enclosure |
IP66 |
| Operating ambient |
32°F to 100°F (0°C to 38°C) |
| Sampled air |
-4°F to 140°F (-20°C to 60°C) |
| Humidity |
10% to 95% RH, non-condensing |
| Dimensions (WHD) |
16.8 x 12.5 x 7.1 in. (426.5 x 316.5 x 180 mm) |
| Weight |
13.3 lb (6.035 kg) |
| Event log |
Up to 18,000 events |
Features
- Suitable for Class 1 Division 2 applications, Groups A, B, C and D
- Intelligent Filter, lint trap, sub-sampling probe and secondary filter reduce contamination and nuisance alarms
- Ultrasonic flow sensing with air-path monitoring
- AutoLearn Smoke and Flow and Clean Air Zero
- Relays configurable as latching or non-latching; expandable GPI and relays
- Five high-intensity status LEDs
- Modular, field-replaceable parts and steel support bracket for mounting
- Supported by Xtralis ASPIRE, VSC and VSM4 software
Related models
-
VLI-880 — the same VESDA VLI detector without the VESDAnet card.
-
VSP-030 — VLI Intelligent Filter (spare).
-
VSP-031 — VLI secondary foam filter (spare).
Documents
FAQ
What is the difference between the VLI-885 and the VLI-880?
The VLI-885 is the VESDA VLI with a VESDAnet card; the VLI-880 is the standalone version. Status reporting across VESDAnet is available on the VESDAnet version only.
How large an area can one VLI-885 cover?
Up to 2,000 m² (21,520 sq. ft.), with up to four inlet pipes and a total pipe length of up to 360 m (1,181 ft).
What power does it need?
It runs on 18 to 30 VDC and draws 415 mA nominal and 440 mA in alarm at 24 VDC.
