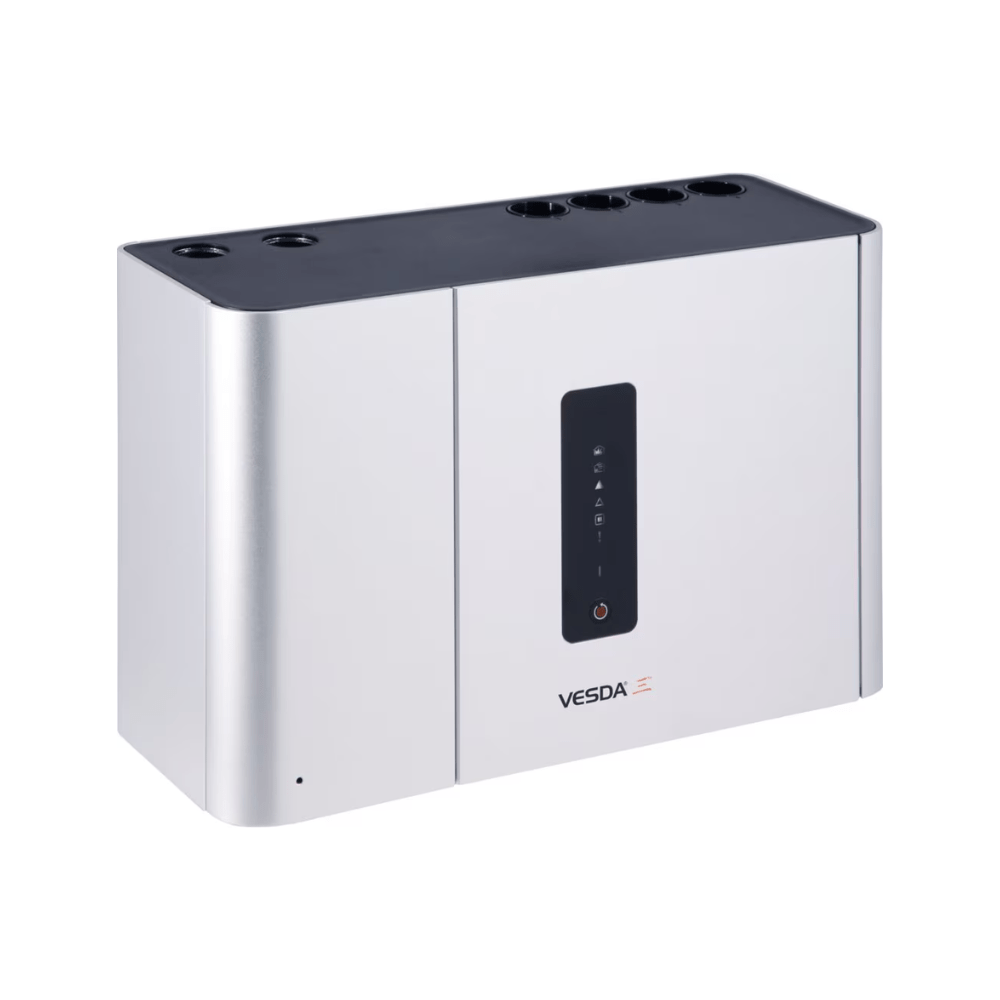

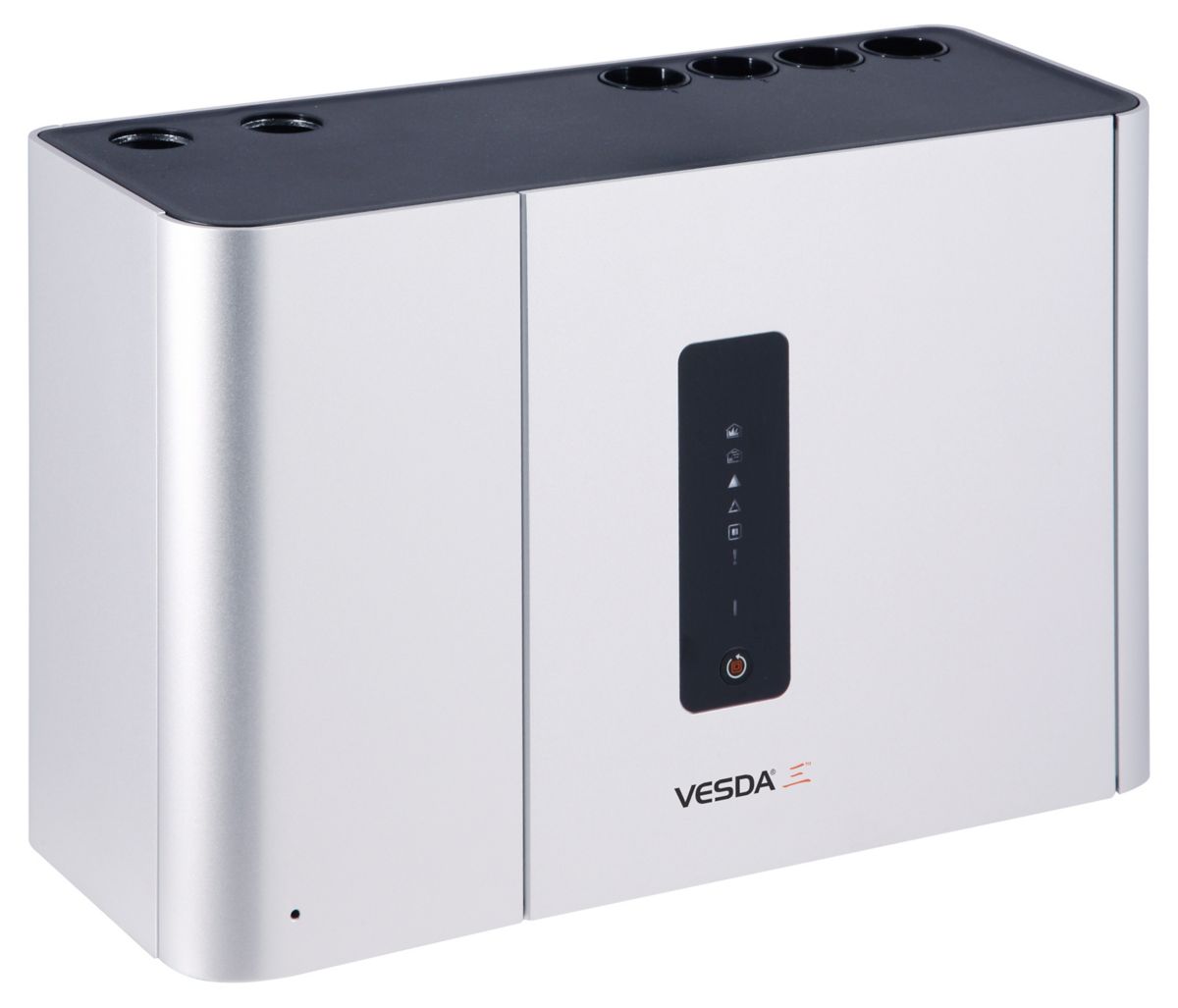

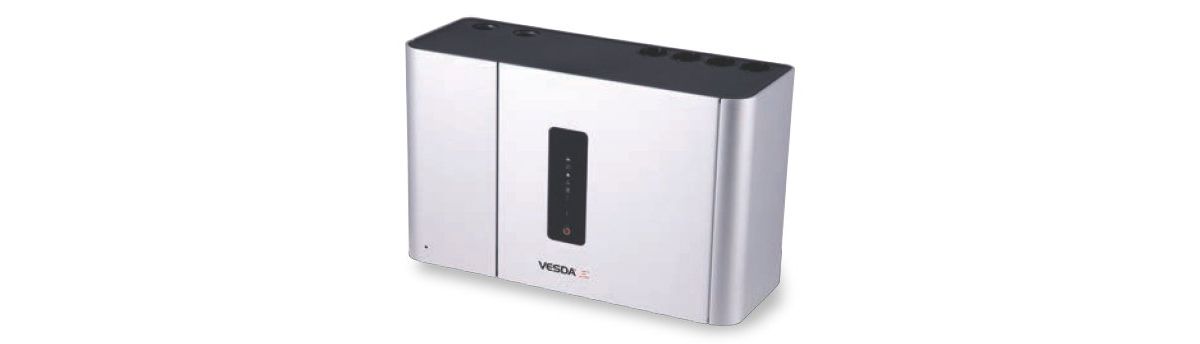

Vesda VEU-A00 VESDA-E VEU with LED’s, Aluminium Enclosure
VEU-A00: VESDA-E VEU DET LED
The VESDA-E VEU series of aspirating smoke detectors is the premium detector of the VESDA-E range, and now the integrated model (VEU-EBTI) has the ability to directly work with esserbus® and esserbus®-PLus through the built-in transponder which allows the connection into the ESSER range of fire alarm control panels. It is compatible with the FlexES Control panel with the pre-alarm feature supported. It is also compatible with IQ8Control and Compact panels but without the pre-alarm feature. An Ultra-wide sensitivity range; 15 times greater than VESDA VLP, and provision for more sampling holes provide an increased coverage in high airflow applications by at least 40 %. Considerably longer linear
pipe runs and extended branched pipe network configurations cater perfectly to applications with higher ceilings providing an increased coverage by up to 80 % whilst allowing convenient detector mounting for ease of service and maintenance. A range of revolutionary new features provide unsurpassed detection performance, flexibility, field programmability, connectivity and reduced total cost of ownership.
Key Features
- Flair detection technology delivers reliable very early warning in
- a wide range of environments with minimal nuisance alarms
- Multi stage filtration and optical protection with clean air barriers
- ensures lifetime detection performance
- Four alarm levels and an ultra wide sensitivity range deliver
- optimum protection for the widest range of applications
- Intuitive LCD icon display provides instant status information for
- immediate response
- Flow fault thresholds per port accommodate varying airflow
- Smart on-board filter retains dust count and remaining filter life
