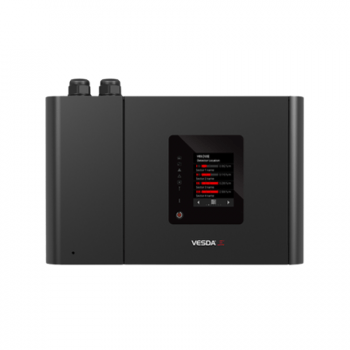

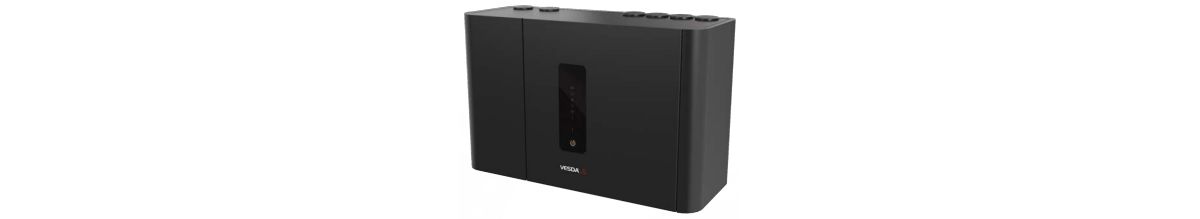

The Vesda VES-A00-P is the VESDA-E VES sector-addressable aspirating smoke detector with LED indicators in a plastic enclosure. A valve mechanism in the inlet manifold lets one zone be split into four sectors (pipes), for example separate aisles in a data room, so the source of smoke can be located.
When smoke reaches the adaptive scan threshold, the VES scans each sector and designates the first sector to reach Alert as the First Alarm Sector, then keeps sampling all sectors to track fire growth with separate alarm levels per sector. Detection uses the Flair chamber, which images particles with a CMOS imager and multiple photodiodes, with absolute calibration and multi-stage filtration with clean-air barriers.
Specifications
| Model |
VES-A00-P (LEDs, plastic enclosure) |
| Supply voltage |
18 to 30 VDC (24 V nominal) |
| Power (quiescent) |
7.5 W to 15.4 W, by aspirator setting |
| Coverage |
2,000 m² (21,520 sq. ft.) |
| Sectors |
Up to 4 pipes |
| Pipe length |
280 m (919 ft) linear; 560 m (1,837 ft) branched |
| Alarm levels |
Alert, Action, Fire 1, Fire 2 per sector |
| Sensitivity range |
0.005% to 20% obs/m (0.0015% to 6.575% obs/ft) |
| Relays |
12 programmable, 2 A at 30 VDC |
| Connectivity |
VESDAnet, Ethernet, USB |
| Inputs |
2 programmable GPIs (1 monitored) |
| IP rating |
IP40 |
| Operating ambient |
32°F to 100°F (0°C to 38°C) |
| Humidity |
5% to 95% RH, non-condensing |
| Dimensions (WHD) |
13.8 x 8.9 x 5.3 in. (350 x 225 x 135 mm) |
| Weight |
10.4 lb (4.7 kg) |
| Event log |
Up to 20,000 events |
Features
- Sector addressability with adaptive scan threshold
- Flair detection technology with short-wavelength laser-based detection
- Smart on-board filter tracks dust count and remaining filter life
- Flow fault thresholds per port
- AutoConfig and AutoLearn Smoke and Flow for commissioning
- Same mounting footprint, pipe, conduit and connector positions as VESDA VLS
- Field-replaceable sub-assemblies
Related models
-
VES-A10-P — the same VES detector with a 3.5 in. display.
-
VEP-A00-P — VESDA-E VEP 4-pipe detector without sector scanning.
-
VSP-962 — VESDA-E replacement filter.
Documents
FAQ
What is the difference between the VES-A00-P and the VES-A10-P?
The VES-A00-P has LED indicators; the VES-A10-P has a 3.5 in. display. Both use a plastic enclosure.
How does the VES locate the source of smoke?
When smoke reaches the adaptive scan threshold it scans each of the four sectors and flags the first one to reach Alert as the First Alarm Sector.
Can it replace an existing VESDA VLS?
Yes. The VES uses the same mounting footprint, pipe, conduit and electrical connector positions as the VESDA VLS and works on existing VESDAnet installations.
What power does it need?
It runs on 18 to 30 VDC, 24 V nominal, using 7.5 W to 15.4 W quiescent depending on the aspirator setting.
