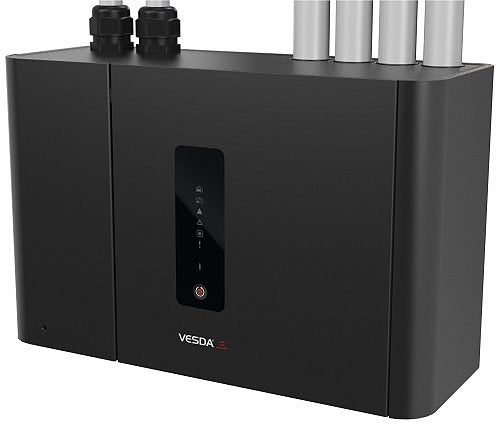

Vesda VEP-A00-P-UL is a VESDA-E VEP aspirating smoke detector with four sampling pipe inlets and LED status indicators, in a plastic enclosure, certified to UL 268 7th Edition. Flair detection technology images sampled particles directly with a CMOS imager and multiple photodiodes for very early warning with fewer nuisance alarms. Absolute calibration keeps performance consistent over the detector's life.
Specifications
| Order code |
VEP-A00-P-UL — VESDA VEP with LEDs, plastic enclosure, UL |
| Supply voltage |
18–30 VDC (24 VDC nominal) |
| Nominal current at 24 VDC |
0.29 A quiescent / 0.38 A alarm (aspirator 1); 0.32 A / 0.41 A (aspirator 5) |
| Area coverage |
Up to 21,520 sq ft (2,000 m²) |
| Pipe length |
919 ft (280 m) linear; 1,542 ft (470 m) branched |
| Maximum sampling holes |
80 |
| Pipe size |
1.05 in OD (3/4 in IPS) or 25 mm |
| Relays |
7 programmable, latching or non-latching, 2 A at 30 VDC resistive |
| Sensitivity range |
0.0015% to 6.575% obs/ft |
| Event log |
Up to 20,000 events |
| Dimensions (WHD) |
13.8 x 8.9 x 5.3 in (350 x 225 x 135 mm) |
| Weight |
9.7 lb (4.4 kg) |
| Operating conditions |
Ambient 32–100°F; sampled air -4 to 140°F; 5–95% RH non-condensing |
| Cable termination |
Screw terminals, 24–14 AWG; 4 x 1 in cable ports |
| Certifications |
UL 268 7th Edition, ULC, CSFM, FM, FDA, FCC, RCM |
Features
- Four alarm levels (Alert, Action, Fire 1, Fire 2) with a wide sensitivity range
- AutoConfig and AutoLearn Smoke and Flow for commissioning out of the box
- Flow fault thresholds per pipe to suit varying airflow
- Multi-stage filtration and clean air barriers protect the optics
- VESDAnet, Ethernet and USB connectivity; two programmable GPIs (one monitored)
- Same mounting footprint, pipe, conduit and connector positions as VESDA VLP
- Suitable for Class 1 Division 2, Groups A, B, C and D
- Supports the IAQ StaX expansion module
Related models
-
VEP-A10-P-UL — four-pipe UL model with 3.5" display
-
VEP-A00-1P-UL — one-pipe UL model with LED indicators
-
VEP-A00-P — non-UL version of this four-pipe LED model
Documents
FAQ
Does the VEP-A00-P-UL have a display?
No. It uses LED indicators for Fire 2, Fire 1, Action, Alert, Disabled, Fault and Power. The VEP-A10-P-UL is the version with a 3.5" display.
How much area and pipe can it cover?
Up to 21,520 sq ft (2,000 m²), with 919 ft (280 m) linear or 1,542 ft (470 m) branched pipe across four inlets.
Can it replace an existing VESDA VLP?
Xtralis states the VEP uses the same mounting footprint, pipe, conduit and connector positions as the VLP and works with existing VESDAnet installations.
What power does it need?
18–30 VDC (24 VDC nominal); maximum current is 0.57 A quiescent and 0.59 A in alarm, or 0.95 A/1.00 A with the IAQ StaX.
