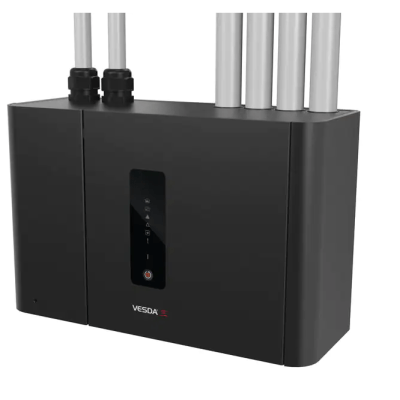

Vesda VEP-A00-P — VESDA-E VEP aspirating smoke detector with LED status indicators, four sampling pipe inlets and a plastic enclosure, for very early warning smoke detection.
The VEP is built on Flair detection technology: the detection chamber images sampled particles directly with a CMOS imager combined with multiple photodiodes, for better detection and fewer nuisance alarms, and the detector keeps consistent performance over its lifetime through absolute calibration. Its aspirator supports up to 560 m (1,837 ft) of branched sampling pipe on the four-pipe model, covering up to 2,000 m² (21,520 sq ft). AutoConfig and AutoLearn Smoke and Flow can be started from the detector itself, and the ASPIRE and Xtralis VSC applications handle pipe network design, commissioning and maintenance. The VEP uses the same mounting footprint, pipe, conduit and electrical connector positions as the VESDA VLP and works on existing VESDAnet installations.
Specifications
| Ordering code |
VEP-A00-P (VESDA-E VEP with LEDs, 4 pipe, plastic enclosure) |
| Supply voltage |
18 to 30 VDC (24 V nominal) |
| Power, quiescent |
7.0 W (aspirator setting 1) to 9.0 W (setting 5) |
| Power, in alarm |
7.8 W (setting 1) to 9.8 W (setting 5) |
| Area coverage |
2,000 m² (21,520 sq ft) |
| Pipe length |
280 m (919 ft) linear; 560 m (1,837 ft) branched |
| Sensitivity range |
0.005 to 20% obs/m (0.0015 to 6.575% obs/ft) |
| Alarm levels |
Alert, Action, Fire 1, Fire 2 |
| Relays |
7 programmable, 2 A at 30 VDC resistive |
| Dimensions (WHD) |
350 x 225 x 135 mm (13.8 x 8.9 x 5.3 in) |
| Weight |
4.4 kg (9.7 lb) |
| Operating conditions |
Ambient 0 to 38°C (32 to 100°F); 5 to 95% RH, non-condensing |
| Sampled air |
-20 to 60°C (-4 to 140°F) |
| IP rating |
IP40 |
| Cable termination |
Screw terminals, 0.2 to 2.5 mm² (24 to 14 AWG) |
| Event log |
Up to 20,000 events |
| Approvals |
CSFM, FM, VdS, NF-SSI, CE, UKCA, ActivFire, CCC, EN 54-20, ISO 7240-20 |
Features
- Suitable for Class 1 Division 2 applications, Groups A, B, C and D
- Short wavelength laser-based detection with high stability over temperature and time
- Multi-stage filtration and clean air barriers protect the optics
- Smart on-board filter tracks dust count and remaining filter life
- Flow fault thresholds per port for varying airflow conditions
- Ethernet and USB connectivity, plus VESDAnet
- Two programmable GPIs (one monitored) and field replaceable sub-assemblies
Related models
-
VEP-A00-1P — one-pipe VEP with LEDs.
-

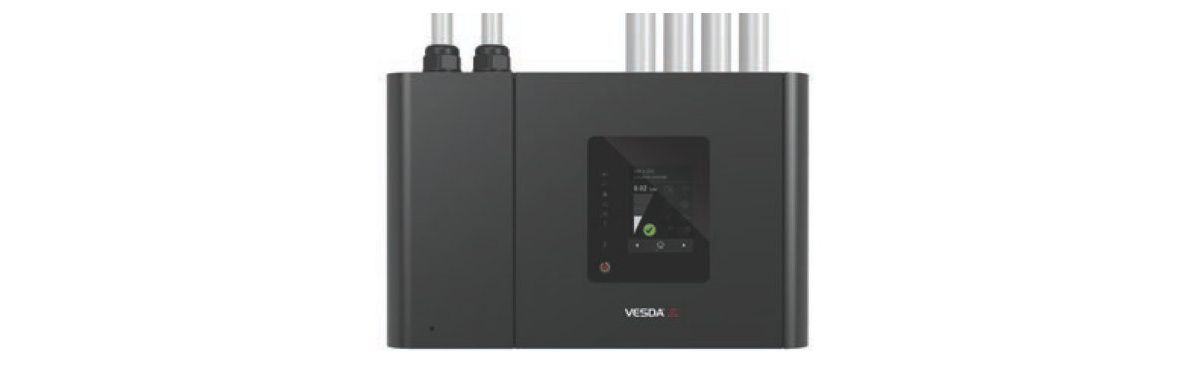

VEP-A10-P — four-pipe VEP with a 3.5 in display.
-
VSP-962 — replacement VESDA-E filter; VSP-960 mounting bracket; VSP-961 US exhaust adaptor.
Documents
FAQ
How much sampling pipe can the VEP-A00-P support?
The four-pipe model supports 280 m (919 ft) of linear pipe or 560 m (1,837 ft) of branched pipe and covers up to 2,000 m² (21,520 sq ft).
Can it replace an existing VESDA VLP?
Yes. The VEP occupies the same mounting footprint, pipe, conduit and electrical connector positions as the VLP and is compatible with existing VESDAnet installations.
What power does it need?
It runs on 18 to 30 VDC (24 V nominal) and draws 7.0 to 9.0 W quiescent depending on the aspirator setting.
How many alarm levels and relays does it have?
It has four alarm levels (Alert, Action, Fire 1 and Fire 2) and seven programmable relays rated 2 A at 30 VDC resistive.
