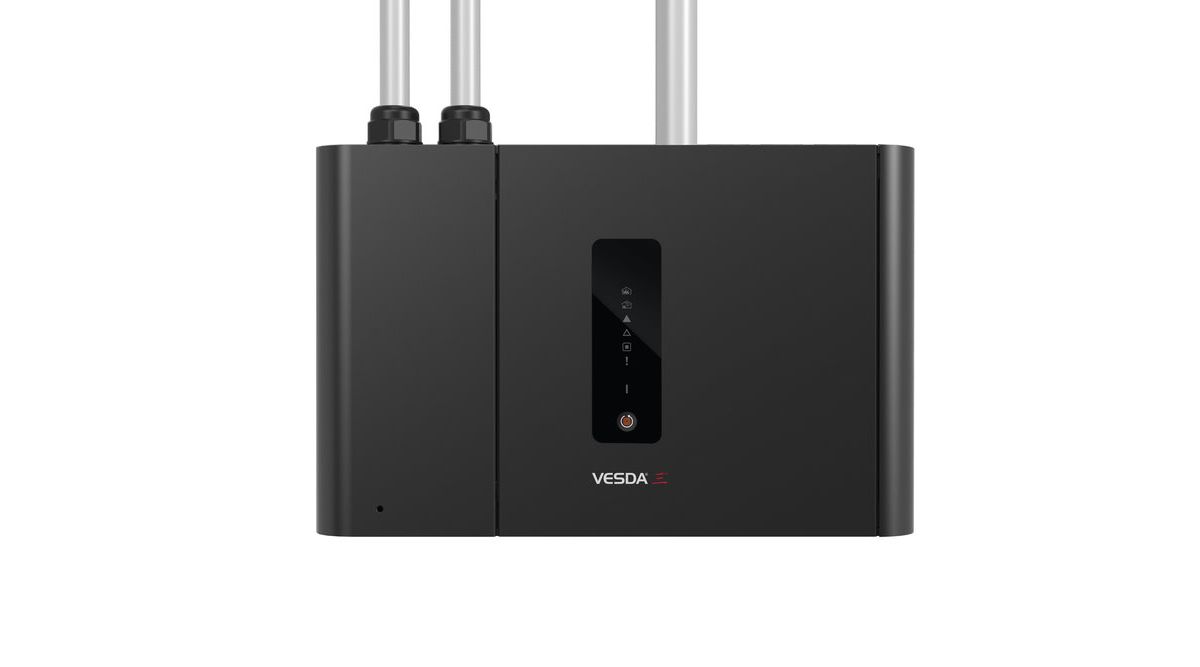

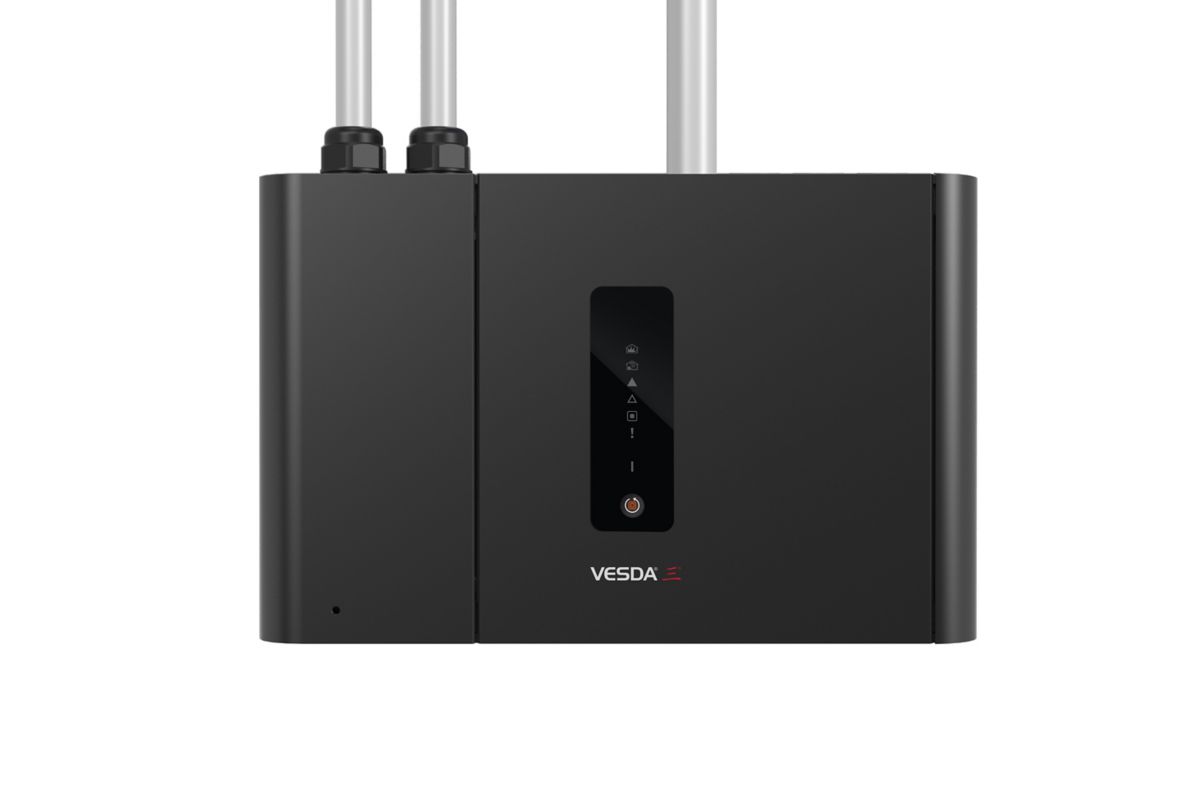

VEP-A00-1P — VESDA-E VEP aspirating smoke detector, single sampling pipe, LED indicators (no LCD display).
The VESDA-E VEP is built around Flair detection technology, which images sampled particles directly with a CMOS imager alongside multiple photo-diodes. That gives the detector both very early warning and the particle discrimination it needs to reject nuisance sources, and absolute calibration keeps its response consistent over its life. The A00-1P is the one-pipe member of the family: a powerful aspirator drives up to 130 m (427 ft) of branched sampling pipe covering up to 1,000 m², sized for a single room, a plant space or one localised detection zone rather than a whole floor. Status is annunciated on discrete LEDs and through seven programmable relays; Ethernet, WiFi, USB and VESDAnet are all standard for configuration, secondary monitoring and primary reporting.
Specifications
| Order code |
VEP-A00-1P — VESDA-E VEP with LEDs, 1 pipe |
| Supply voltage |
18 to 30 VDC (24 V nominal) |
| Power consumption at 24 VDC |
8.8 W quiescent, 9.6 W in alarm (aspirator setting fixed) |
| Dimensions |
350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in) |
| Weight |
4.0 kg (8.8 lb) |
| Operating conditions |
Ambient 0°C to 39°C (32°F to 102°F); sampled air -20°C to 60°C (-4°F to 140°F); tested to -20°C to 55°C (-4°F to 131°F); UL -20°C to 50°C (-4°F to 122°F); humidity 10% to 95% RH, non-condensing |
| Area coverage |
1,000 m² (10,760 sq ft) |
| Pipe length |
100 m (328 ft) linear; 130 m (427 ft) branched |
| Minimum airflow per pipe |
15 l/m |
| Sampling holes (Class A/B/C) |
30 / 40 / 45 |
| Pipe inlet and exhaust |
External diameter 25 mm or 1.05 in (3/4 in IPS); exhaust via adaptor |
| Relays |
7 programmable relays, latching or non-latching; contacts rated 2 A at 30 VDC (resistive) |
| IP rating |
IP40 |
| Cable access |
4 x 26 mm (1.02 in) cable entries |
| Dynamic range |
0.001% to 32% obs/m (0.0003% to 10% obs/ft) |
| Sensitivity range |
0.005 to 20% obs/m (0.0016% to 6.25% obs/ft) |
| Threshold setting range |
Alert 0.005% to 2.0%; Action 0.005% to 2.0%; Fire 1 0.010% to 2.0%; Fire 2 0.020% to 20.0% obs/m |
| Event log |
Up to 20,000 events, time and date stamped |
| StaX module support |
PSU |
| Design tool |
ASPIRE |
| Certifications and approvals |
UL, ULC, FM, ActivFire, CE, VdS |
Installation notes
-
One pipe, half the reach: the A00-1P is rated for 1,000 m² and 130 m of branched pipe. The four-pipe VEP-A00-P in the same data sheet is rated for 2,000 m² and 560 m — do not size a network from four-pipe figures.
-
EN 54-20 classes are quoted for the four-pipe VEP: the Class A/B/C figures in the data sheet are stated against the four-pipe model, and the classification of any given configuration must be determined using ASPIRE.
-
StaX expansion differs by model: the one-pipe VEP is listed for the PSU StaX; Auto Pipe Clean StaX is listed for the four-pipe VEP.
-
Retrofit footprint: the VEP occupies the same mounting footprint and pipe, conduit and electrical connector positions as the legacy VESDA VLP, and works on existing VESDAnet installations.
-
Exhaust adaptor: the 3/4 in IPS exhaust connection is made through the VSP-961 adaptor, ordered separately.
Related models
-
VEP-A00-P — same LED fascia, four sampling pipes, 2,000 m² coverage.
-
VEP-A10-P — four pipe with a 3.5 in LCD display instead of LEDs.
-
VEP-A00-1P-UL — the UL-certified one-pipe variant; its product guide publishes different limits (95 m maximum single-pipe run, 0°C to 38°C ambient).
-
VES-A00-P / VES-A10-P — four-pipe VESDA-E detectors that add sector addressability, reporting per pipe.
Specifications taken from the Xtralis (Honeywell) data sheet "VESDA-E VEP," document VESDA-E-VEP V.02 (April 2020). Manufacturer specifications are subject to change without notice.
Documents
FAQ
How much sampling pipe and area does the one-pipe VEP cover?
The VEP-A00-1P supports 100 m (328 ft) of linear pipe or 130 m (427 ft) of branched pipe, with area coverage up to 1,000 m² (10,760 sq ft).
Does the VEP-A00-1P have a display?
No. The A00-1P is the LED version; the VEP-A10-P is the four-pipe model with a 3.5" display.
What power and outputs does it need?
It runs on 18–30 VDC (24 V nominal) and provides 7 programmable relays rated 2 A at 30 VDC, latching or non-latching.
Can it replace an existing VESDA VLP?
Xtralis states the VEP occupies the same mounting footprint, pipe, conduit and electrical connector positions as the VESDA VLP and works on existing VESDAnet installations.
