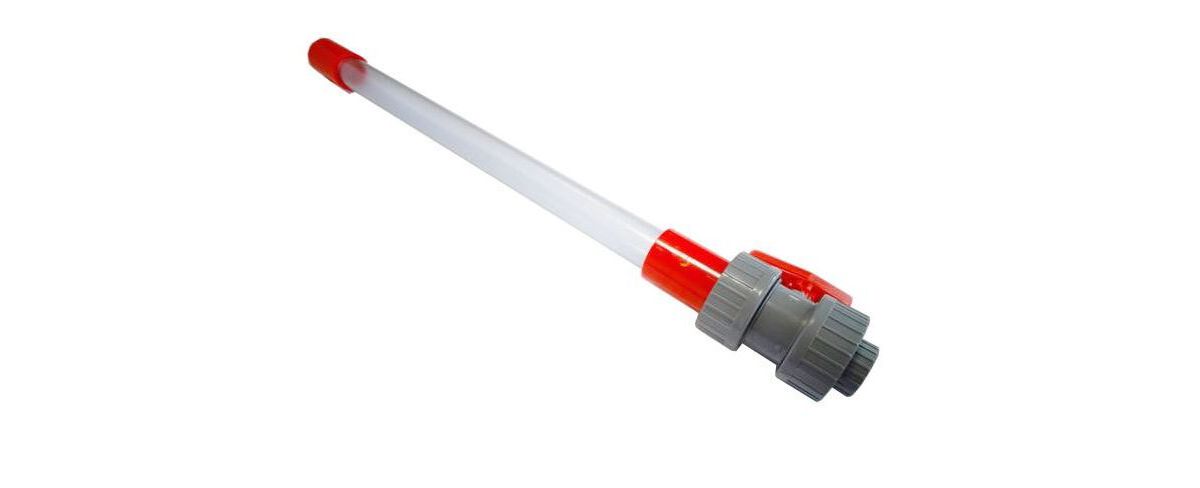

Vesda REDSGVD025I is a 25 mm by 12 in condensation trap with a ball valve for 25 mm red ABS aspirating smoke detection pipe. It collects condensation that forms in the sampling pipe so the water can be drained off, protecting system performance. The part is described as equivalent to the Xtralis PIP-025.
The specifications below are those of the Xtralis PIP-025 pipe range; joints are made with ABS solvent cement.
Features
- 25 mm by 12 in condensation trap
- Ball valve for draining
- Red ABS
- Solvent-cement joints
- Described as equivalent to Xtralis PIP-025
Specifications
| Size |
25 mm x 12 in |
| Material |
ABS |
| Color |
Red |
| Jointing |
ABS solvent cement |
| Pipe system |
25 mm OD ABS (21 mm ID) |
| Temperature range |
-40 to 176°F (-40 to 80°C) |
| Standards |
EN 54-20, EN 61386-1 |
Specifications taken from the manufacturer data sheet: VESDA Pipes and Fittings Brochure (Europe).
