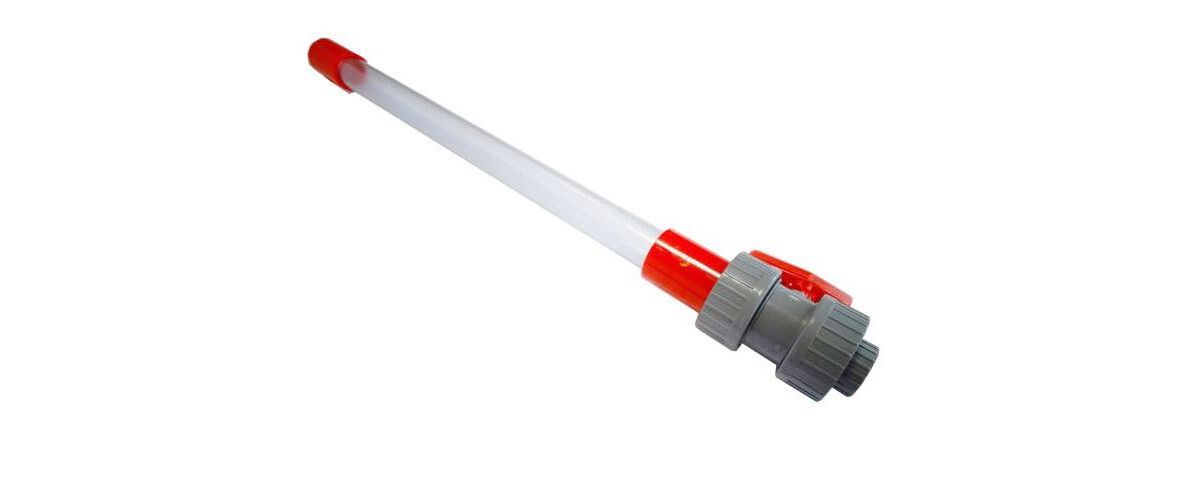

Vesda by Xtralis PIP-025 — 25 mm × 12" condensation valve trap with ball valve, red, from the VESDA ABS fittings range.
An aspirating sampling pipe draws room air continuously, so a run crossing a temperature gradient drops water inside the pipe, which then travels on to the detector. The trap is plumbed into the run so condensate collects in the 12" leg instead, and the ball valve beneath drains it without cutting pipe. Valves in this range use union ends, so the trap comes out without disturbing the network.
- Xtralis wording: 25mm × 12" Condensation Valve Trap with Ball Valve, Red
- The 12 is a length in inches, not a pack count
- Ball valve included in the assembly
- For 25 mm OD VESDA ABS pipe, 21 mm bore, solvent cement jointed
Check colour and function. PIP-025-G is the same trap in grey; PIP-023 is a plain 25 mm two-way ball valve with no trap, PIP-024 the large check valve, PIP-033 a sight glass with drain. This is the European ABS range, not the UL 1887 plenum-rated CPVC pipe sold as VP-P.
