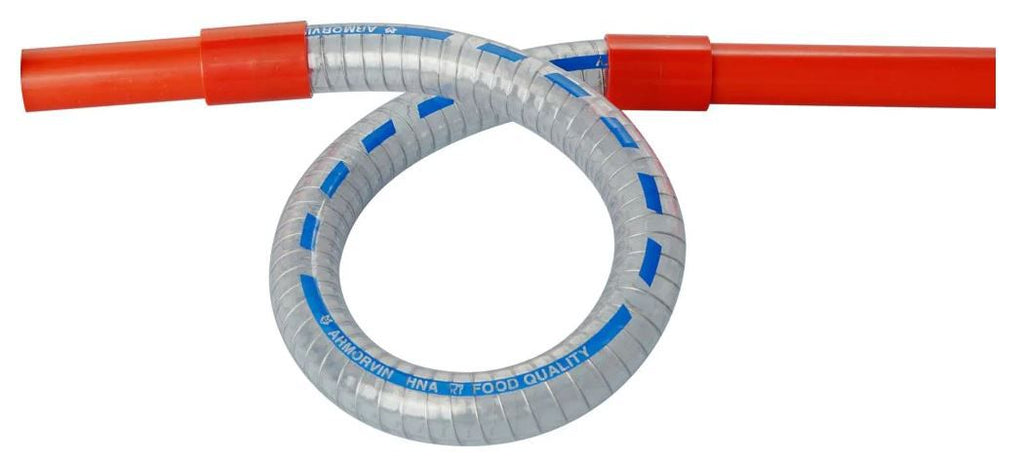

Vesda PIP-021 is a 25 mm flexible connector, 1 m (39 in) long, for the red ABS Xtralis aspirating smoke detection pipe range. It is used where bends or elbows are not suitable.
The connector can be positioned in any direction without restricting airflow. Like the rest of the 25 mm range, it is joined with ABS solvent cement.
Features
- 25 mm flexible connector
- 1 m (39 in) long
- Positions in any direction without restricting airflow
- Red ABS
- Solvent-cement joints
Specifications
| Length |
1 m (39 in) |
| Material |
ABS |
| Color |
Red |
| Jointing |
ABS solvent cement |
| Pipe system |
25 mm OD ABS (21 mm ID) |
| Temperature range |
-40 to 176°F (-40 to 80°C) |
| Standards |
EN 54-20, EN 61386-1 |
Specifications taken from the manufacturer data sheet: VESDA Pipes and Fittings Brochure (Europe).
