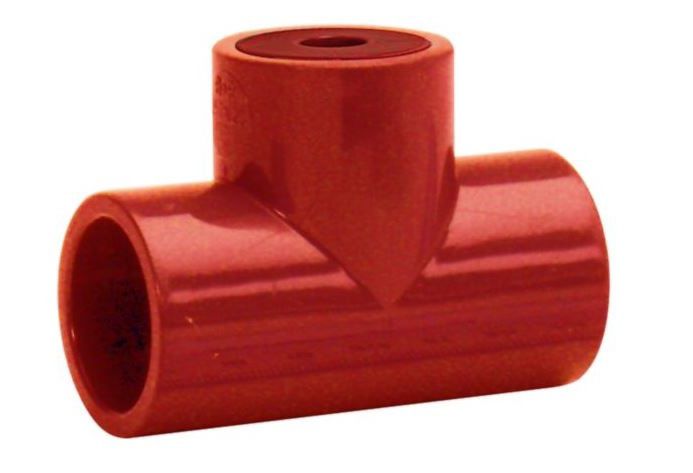

Xtralis Trunk Adapter 25mm Red TPiece Capillary Connector
Red ABS tee adapter that takes a 10 mm capillary tube off a 25 mm VESDA aspirating sampling pipe. It is used to feed capillary drops to remote sampling points. Sold in packs of 10.
Key Features
- 25 mm in-line tee with a 10 mm capillary branch
- Used to attach capillary tubes and drop pipes to the sampling pipe
- ABS, red
- Pack of 10
- Also made in white (PIP-016-W) and grey (PIP-016-G)
Specifications
| Pipe size |
25 mm OD (metric) |
| Branch |
10 mm capillary tube |
| Material |
ABS |
| Colour |
Red |
| Pack quantity |
10 |
| Standards (range) |
ABS pipes and fittings tested and certified to EN 54-20 and EN 61386-1 |
Compatible With
- Xtralis VESDA 25 mm OD ABS sampling pipe (PIP-001-2.4)
- 10 mm OD capillary tube (221-035 / 221-036)
