Xtralis Jointing Socket 25mm RED Pack of 10 PIP002 is equivalent to REDSOC10

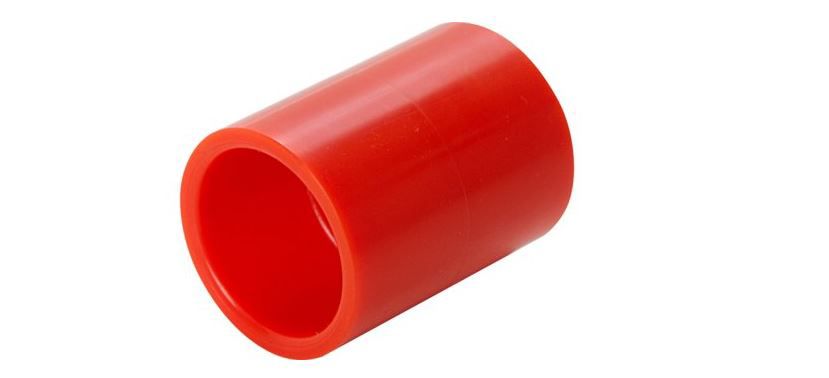

Red ABS socket (straight coupling) for joining two lengths of 25 mm VESDA aspirating sampling pipe. Sold in packs of 10. Sockets are the standard way to connect pipe runs and are solvent-cemented in place.
Key Features
- Straight socket for 25 mm OD sampling pipe
- ABS, joined with ABS solvent cement
- Red, the standard colour identifying fire service pipework
- Pack of 10
- Also made in white (PIP-002-W) and grey (PIP-002-G)
Specifications
| Pipe size |
25 mm OD (metric) |
| Material |
ABS |
| Colour |
Red |
| Pack quantity |
10 |
| Standards (range) |
ABS pipes and fittings tested and certified to EN 54-20 and EN 61386-1 |
Compatible With
- Xtralis VESDA 25 mm OD ABS sampling pipe (PIP-001-2.4)
- VESDA / VESDA-E aspirating smoke detectors with 25 mm pipe networks
