VESDA OSE-SP-01 Battery Powered Emitters drastically reduce the wiring and installation costs

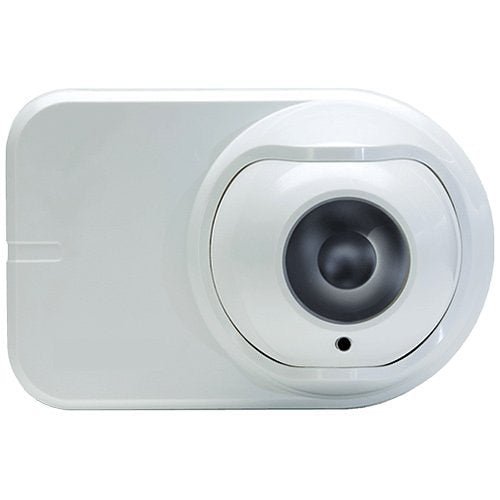

OSE-SP-01: Emitter, Battery Power, Alkaline Battery
Open-area smoke imaging detection emitters (OSIDs), both 24 Vds and battery powered, are a new innovation in projected beam smoke detection technology, to be used with OSI-10 or 90. By using advanced dual wavelength projected beams and optical imaging technology for early warning smoke detection, OSIDs provides a low-cost, reliable and easy-to-install solution that overcomes typical beam detection issues such as false alarm incidents and alignment difficulties.
Key Features
- Dual wavelength LED-based smoke detection
- On-board event log for fault and alarm diagnostics
- High tolerance to transient dust, steam and intrusion of solid objects
- Easy alignment with large adjustment and viewing angles
- No need for precise alignment
- Simple DIP switch configuration
- Simple and easy maintenance requirements
- Three selectable alarm thresholds
- Status LEDs for fire, trouble and power alarms
- Conventional alarm interface for straightforward fire system integration
Documents & Downloads
FAQ
Which imager does this emitter work with?
OSID emitters are installed along the perimeter of the protected area facing an OSID imager; the 45° and 90° imagers can track up to seven emitters.
How long does the battery last?
Xtralis lists a 5-year battery life for the SP (standard power) battery emitter and 3 years for the HP version, using the OSE-RBA built-in battery pack.
How precise must alignment be?
The emitter is aligned with a laser alignment tool. It allows ±60° horizontal and ±15° vertical adjustment, with a maximum misalignment of ±2°.
What environment is it rated for?
-10 to 55°C (14 to 131°F) and 10 to 95% RH non-condensing, with IP44 electronics and an IP66 optics enclosure.
