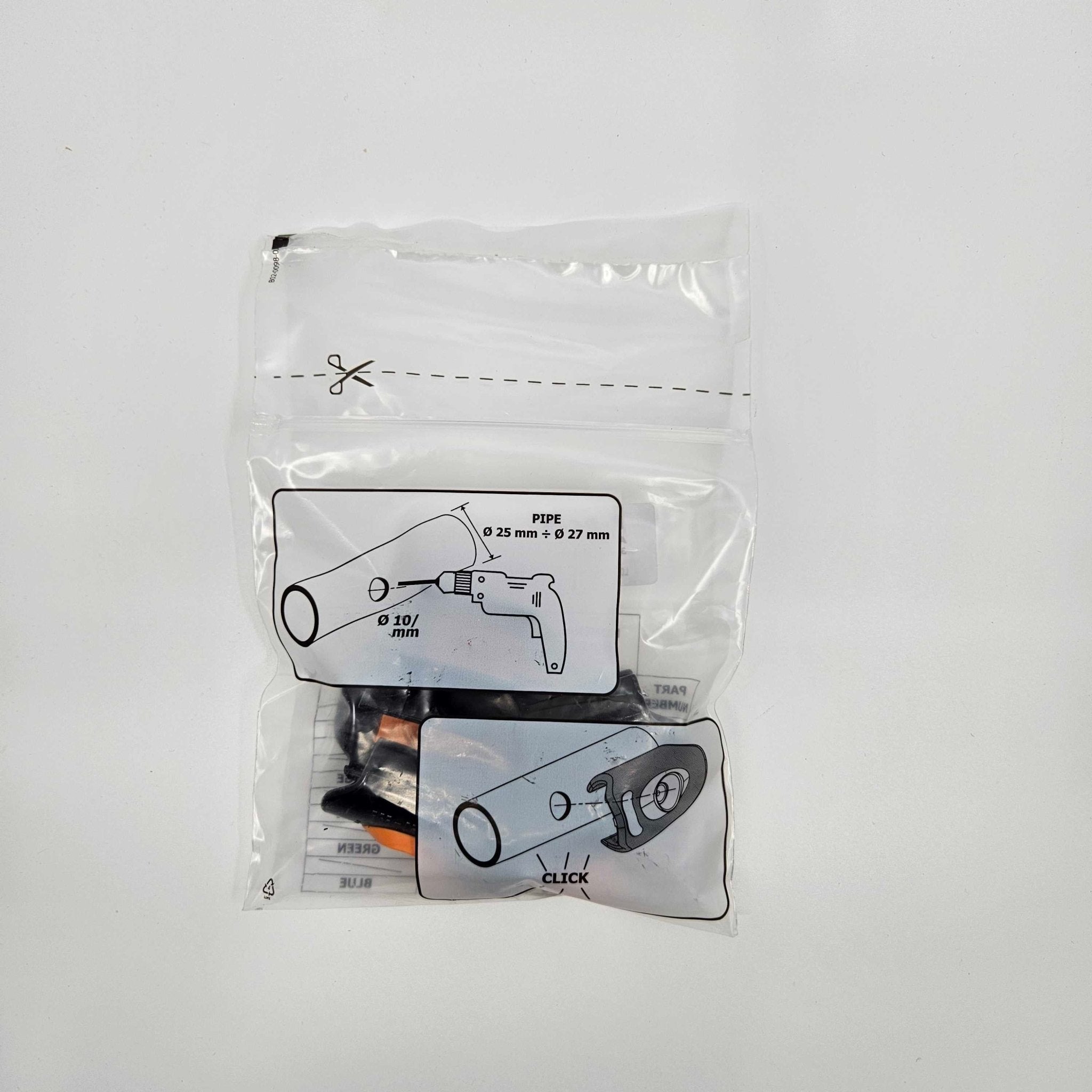

Vesda F-PC-3 is a standard sampling hole clip for Xtralis aspirating smoke detection pipe, supplied in a pack of 5. Each clip snaps onto 25-27 mm pipe and sets a pre-engineered 3.0 mm (1/8 in) sampling hole.

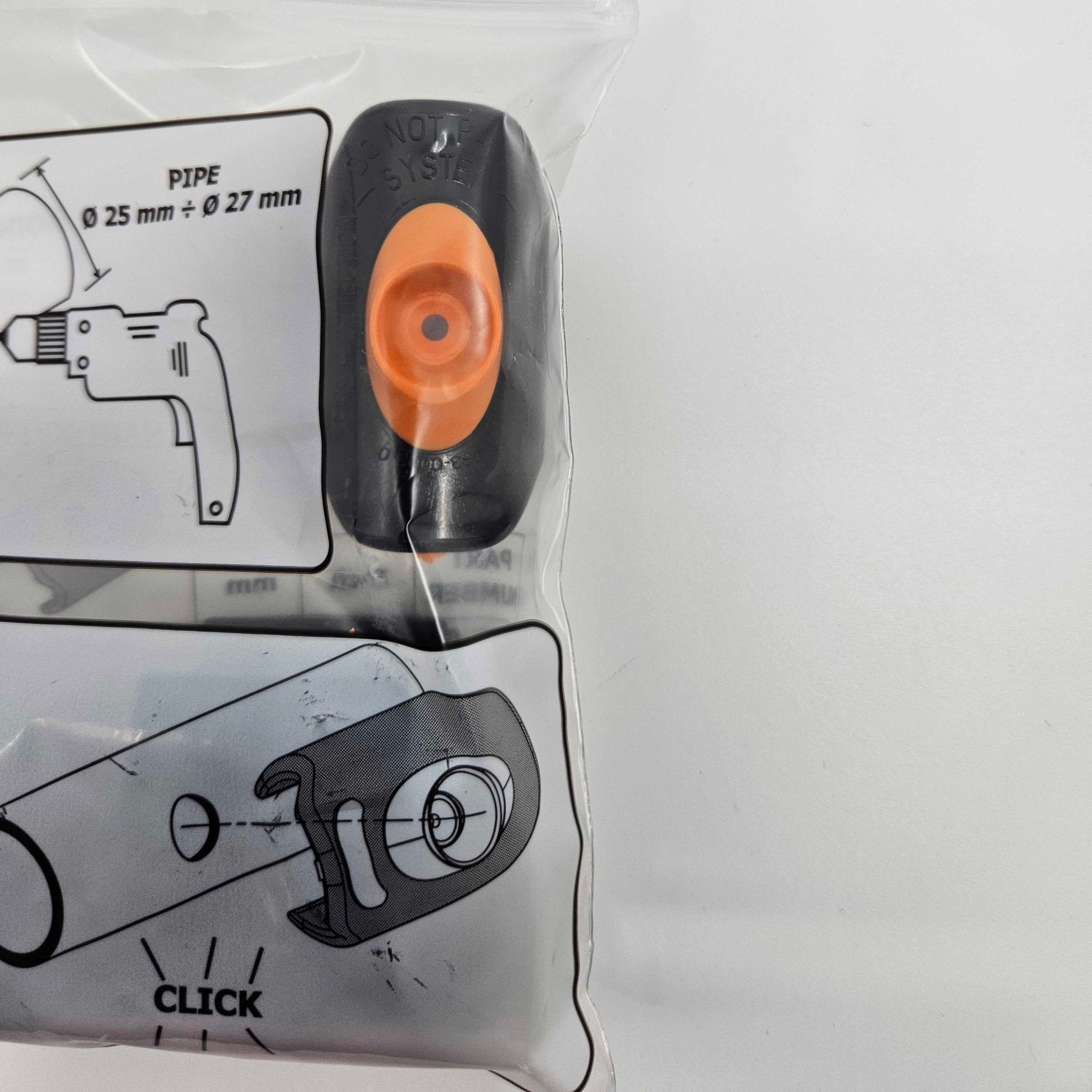

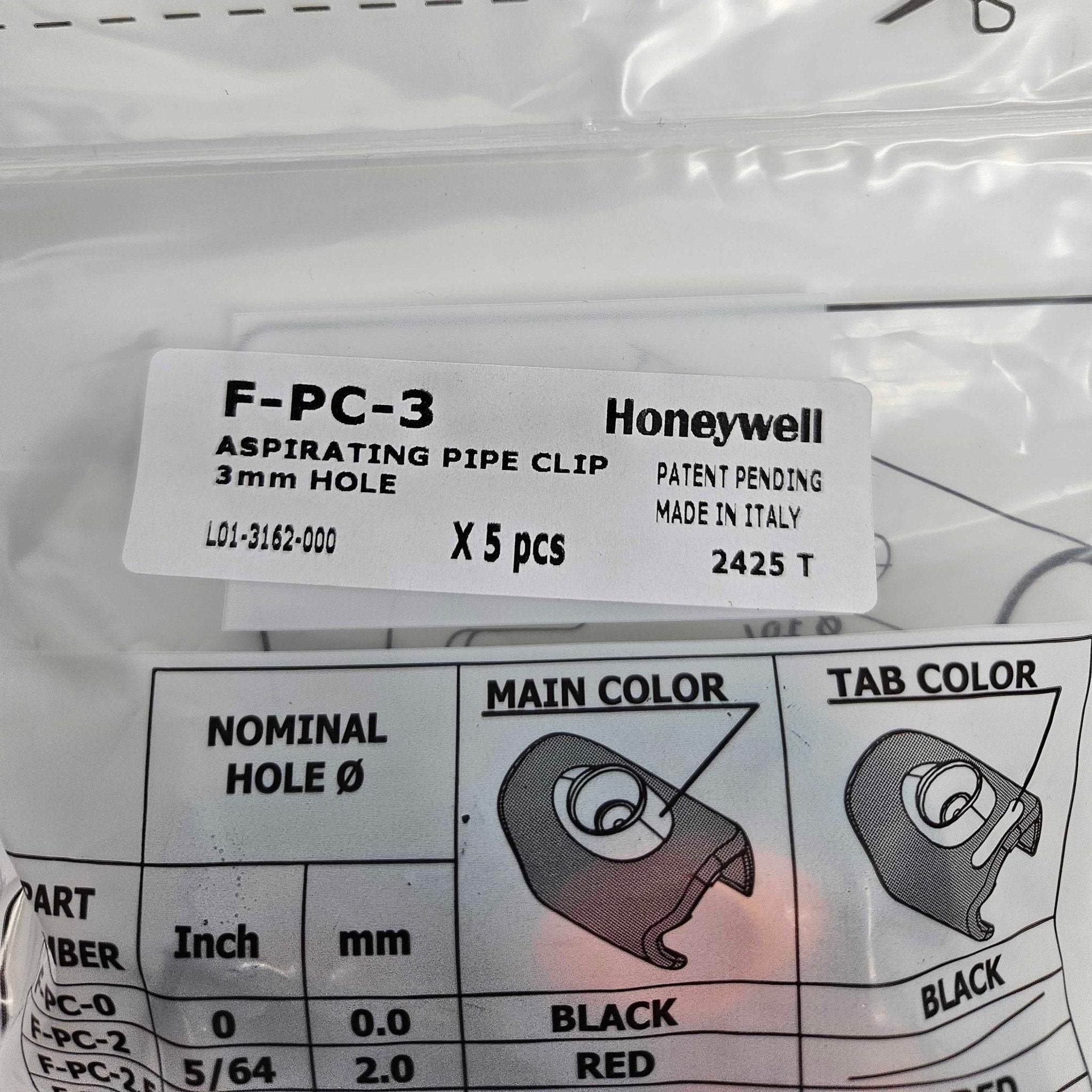

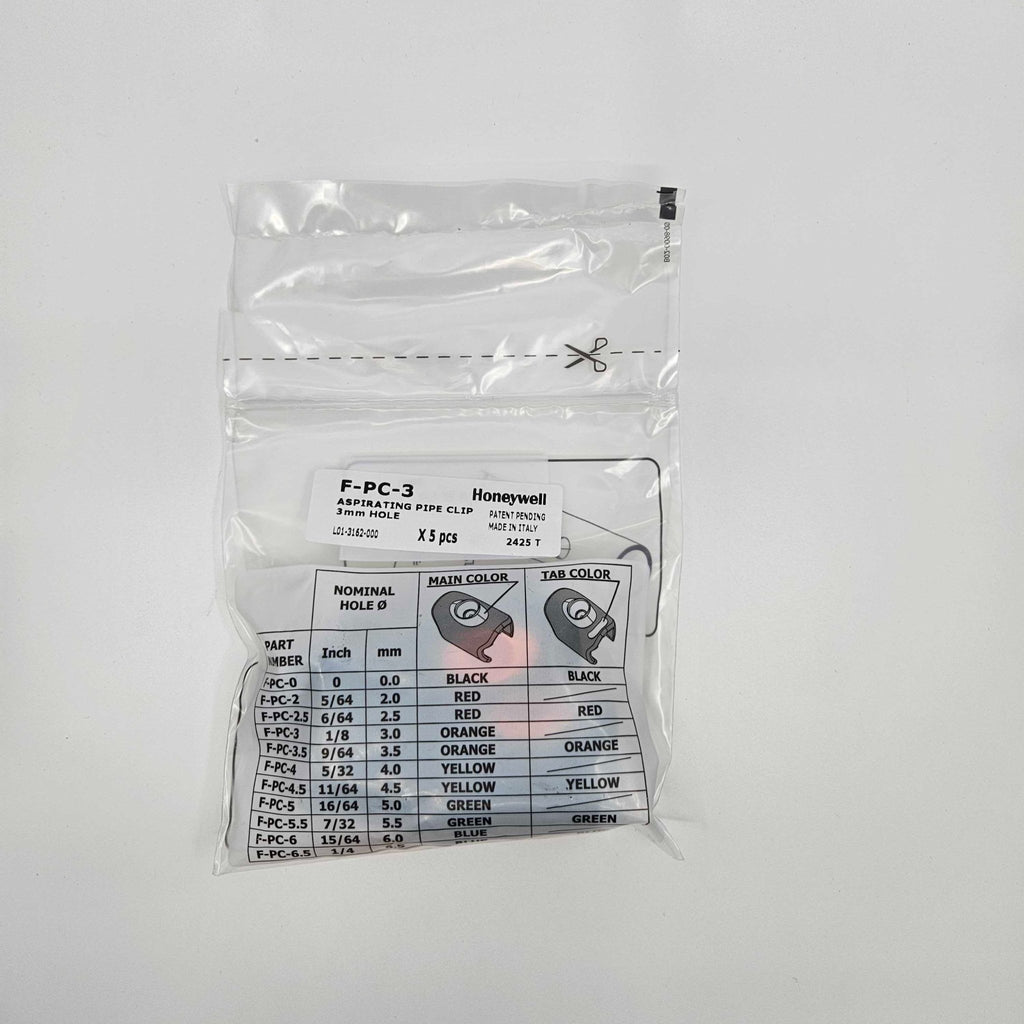

The clip is color-coded by hole diameter so the size can be read at a glance, and every hole is drilled with the same 10 mm bit. A chamfered hole entry reduces dust loading around the opening.
Features

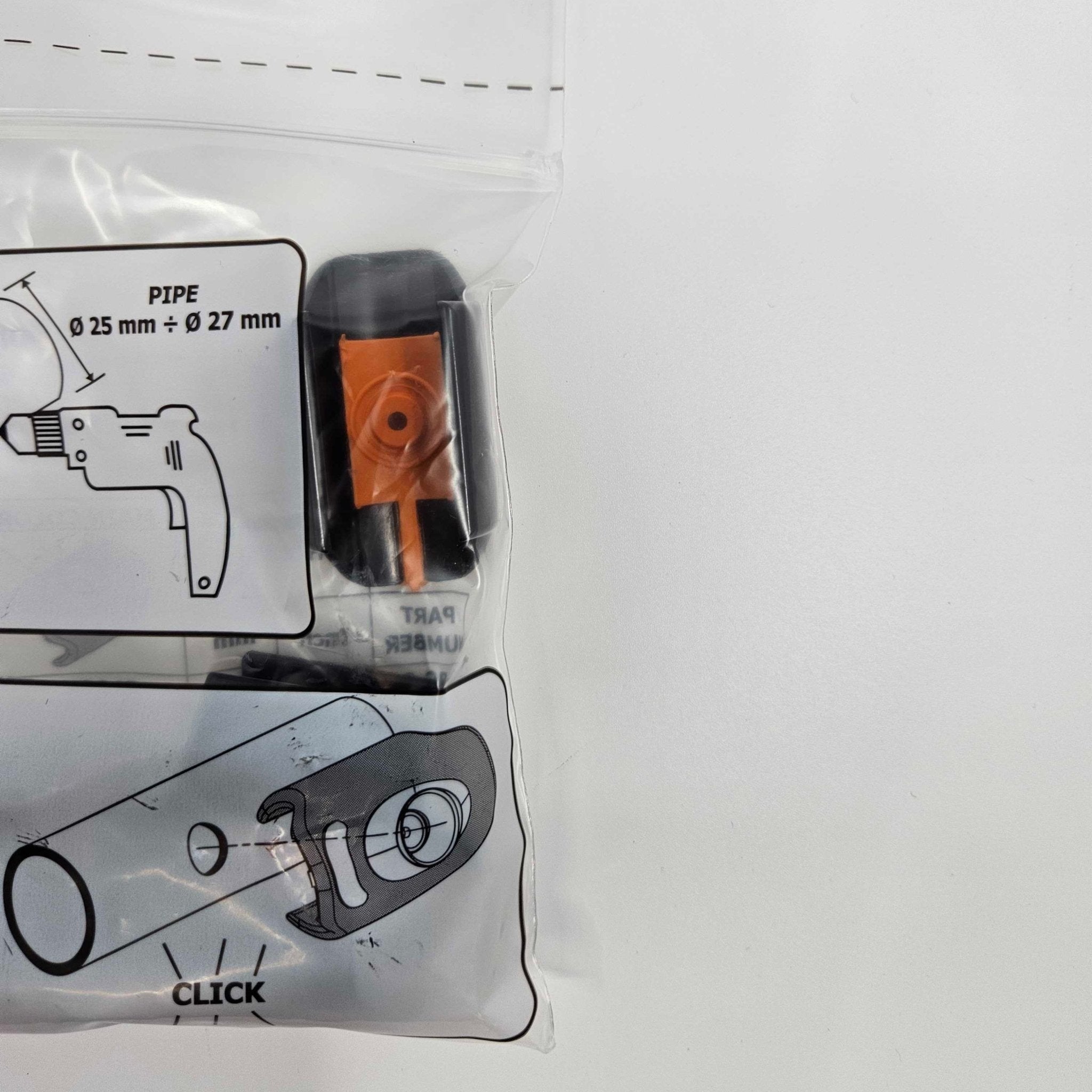

- Click-on installation with no tools or assembly
- Sets a 3.0 mm (1/8 in) sampling hole
- One 10 mm drill bit for every hole size
- Chamfered hole entry reduces dust build-up
- Fits 25-27 mm OD pipe
- Pack of 5
Specifications
| Hole size |
3.0 mm (1/8 in) |
| Pipe OD |
25-27 mm |
| Material |
PC/ABS body (black), TPE |
| Operating temperature |
-22 to 113°F (-30 to 45°C) |
| Max pipe network pressure |
7 bar (about 100 psi) |
| Variant |
Standard |
| Pack quantity |
5 |
Specifications taken from the manufacturer data sheet: ASD Sampling Hole Clips Data Sheet.
