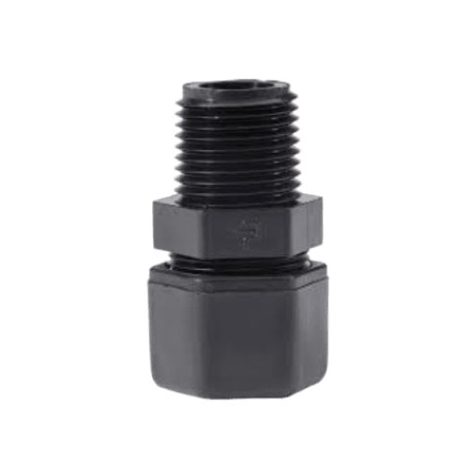

Vesda E700-CAP-KIT Plastic Connector Kit for miniature sampling point and capillary tube arrangement
Plastic connector kit used in VESDA capillary (concealed) sampling to join the capillary tube between the sampling pipe tee and the miniature sampling point. Each kit contains one male connector (1/2 in thread x 1/2 in OD compression) and one female connector (1/2 in OD compression). It is the plastic counterpart of the brass CAP-KIT.
Key Features
- Kit of one male and one female compression connector
- Male connector: 1/2 in thread x 1/2 in OD compression
- Female connector: 1/2 in OD compression
- Plastic construction (brass version is CAP-KIT)
- Shown in the Xtralis UL data sheet as the capillary tube connectors between the FPT pipe tee and the E700-SP miniature sampling point
Specifications
| Material |
Plastic |
| Male connector |
1/2 in thread x 1/2 in OD compression |
| Female connector |
1/2 in OD compression |
| Kit contents |
1 male connector, 1 female connector |
Compatible With
- E700-SP miniature sampling point
- E700-TUBE capillary tube
- VP-TEE-FPT 3/4 in x 3/4 in x 1/2 in FPT tee
- VESDA 3/4 in CPVC (UL) pipe networks
Documents & Downloads
FAQ
Where is the E700-CAP-KIT used?
In VESDA capillary tube sampling, the connectors join the capillary tube to the miniature sampling point and the pipe tee, for concealed sampling above ceilings or inside cabinets.
What is in the kit?
One male connector (1/2 in thread x 1/2 in OD compression) and one female connector (1/2 in OD compression).
Is there a brass version?
Yes. The CAP-KIT is the brass connector kit for the miniature sampling point and capillary tube arrangement; the E700-CAP-KIT is the plastic version.
Which capillary tube is used with it?
Xtralis lists the E700-TUBE capillary tube with a 3/8 in internal diameter for capillary sampling.
