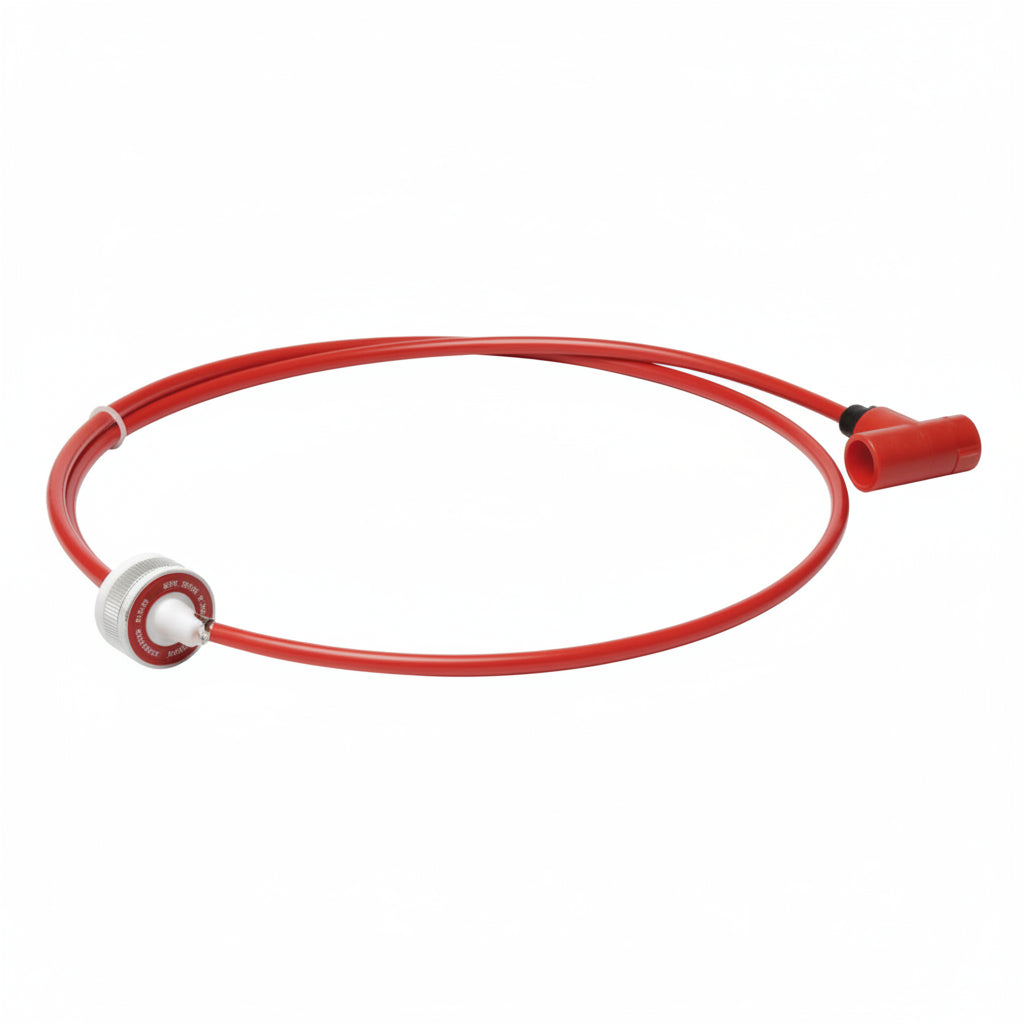

Vesda 059-007 — conical capillary sampling point kit in red, supplied with 2 m of 10 mm OD flexible tube and a trunk adaptor.
A miniature sampling point sits on the far end of a capillary tube so air can be drawn from a finished ceiling without running the sampling pipe across it. Xtralis separates the two styles by code compliance: conical points project below the ceiling and meet the minimum sampling distance local codes normally specify, while flush points conceal the pipe but may not comply.
- Conical sampling point with 2 m of 10 mm OD flexible capillary tube
- Trunk adaptor with a T-type connection into the sampling pipe network
- Red; 059-007-W is white and 059-007-G is grey
- Catalogued in the VESDA Pipes and Fittings Europe range, built on 25 mm ABS pipe
- Named by Xtralis as the current equivalent of the legacy F-CC-25 and 510-KIT kits
144-013 is the conical head only, in a pack of ten, for tube you already have. The flush equivalents are 059-001 as a kit and PIP-015 as a head only. Unlike those neighbouring entries, 059-007 carries no pack quantity.
