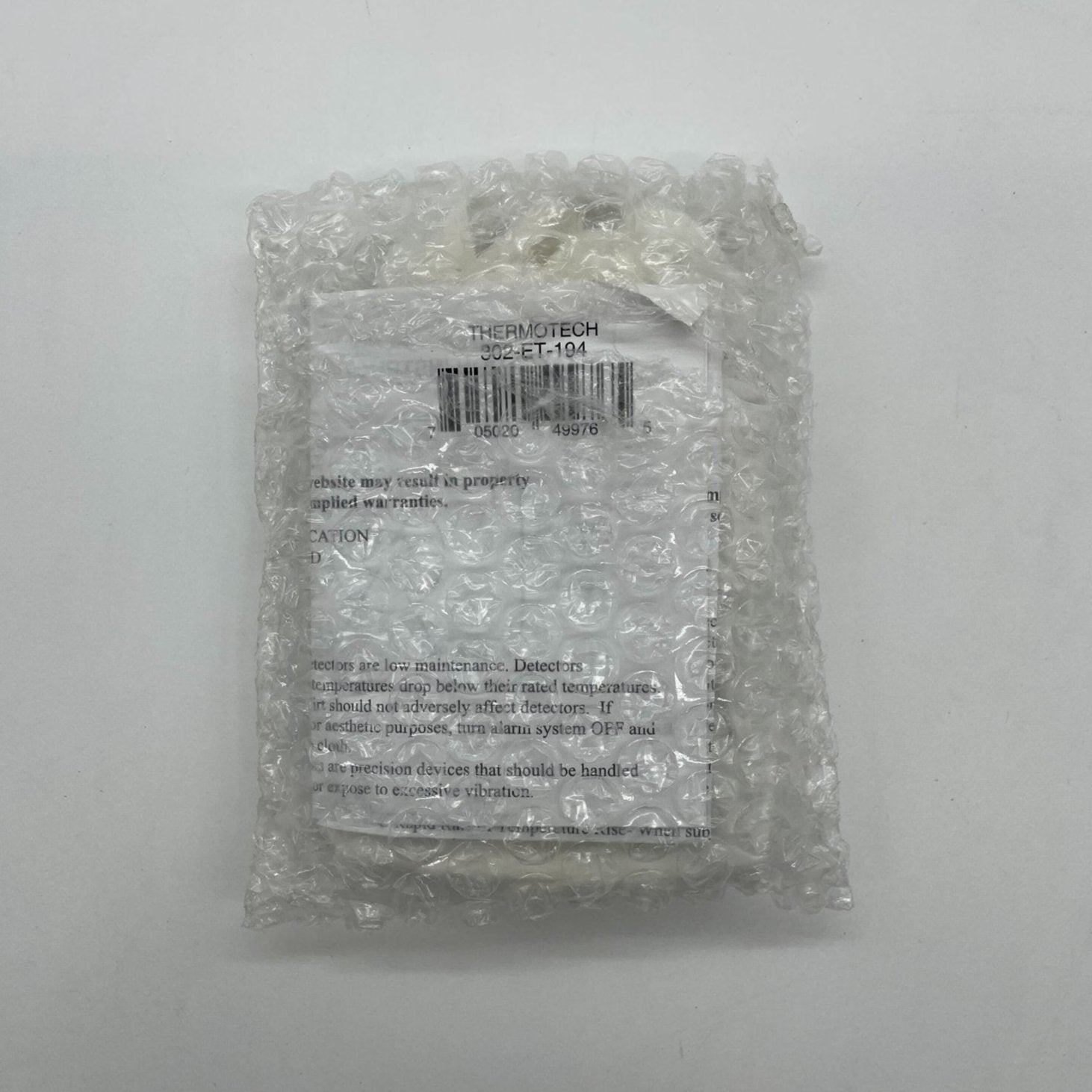

Thermotech 302-ET-194 — a 194 °F rate compensation heat detector in the hermetically sealed ET body, Potter ordering part number 1430478.
Rate compensation is a third class beside fixed temperature and rate of rise. A high-expansion shell encases two struts carrying opposing contacts; on a fast rise the shell lengthens before the struts warm, closing them below the rating and cancelling thermal lag.
- Normally open contacts rated 6 to 125 VAC at 5 A, 6 to 25 VDC at 1 A, 125 VDC at 0.5 A
- Hermetically sealed for moisture-proof or dust-proof service, indoor or outdoor
- Plastic hexagonal grip bushing, 1/2 in. conduit threads, hand tightened; no special back box
- UL smooth ceiling spacing 50 × 50 ft on 8 to 10 ft ceilings; UL certified and FM approved
- Not directionally affected; catalogued vertical, may also mount horizontally
Four 302 bodies exist at two ratings each. 302-ET-135 is this detector at 135 °F; 302-194 is interior only with no bushing; 302AW-194 is all-weather without it; 302EPM-194 is explosion-proof, certified to UL without the FM approval the other three carry.
Documents
FAQ
What type of heat detector is the 302-ET-194?
A normally open, self-restoring rate compensation heat detector rated 194°F, hermetically sealed for moisture-proof or dust-proof installations.
Can it be used outdoors?
Yes. The 302-ET is for indoor and outdoor use, but it should be protected from sunlight and adverse conditions.
How is it mounted?
It has a plastic hexagonal grip bushing with 1/2 in conduit threads that fits a hub cover on any outlet box, hand tightened only. No special back box is required.
What is the maximum ceiling temperature?
For the 194°F rating, the maximum ceiling temperature is 150°F.
