Testifire TESTIFIRE-XTR2-001 is the Testifire XTR2 all-in-one connected smoke and heat detector test kit, supplied without an access pole. It tests photoelectric and ionization smoke detectors, fixed temperature and rate-of-rise heat detectors, multi-sensor detectors, and conventional, addressable and analog addressable devices. It attaches to Solo access poles, which are purchased separately, for ceiling-height testing.
Specifications
| Power source |
Lithium-ion battery pack, nominal 10.8 V, 35.1 Wh / 3250 mAh |
| Charging |
USB-C charging cradle; about 2 hours for a full charge |
| Test modes |
Smoke, standard heat (to 194°F), high heat (to 212°F), clearing, simultaneous, sequential, delayed start |
| Weight |
2.76 lb |
| Dimensions |
16.0 x 6.1 x 5.9 in with handle; 11.9 x 6.1 x 5.9 in without |
| Maximum cup diameter |
4.4 in |
| Access pole |
Not included |

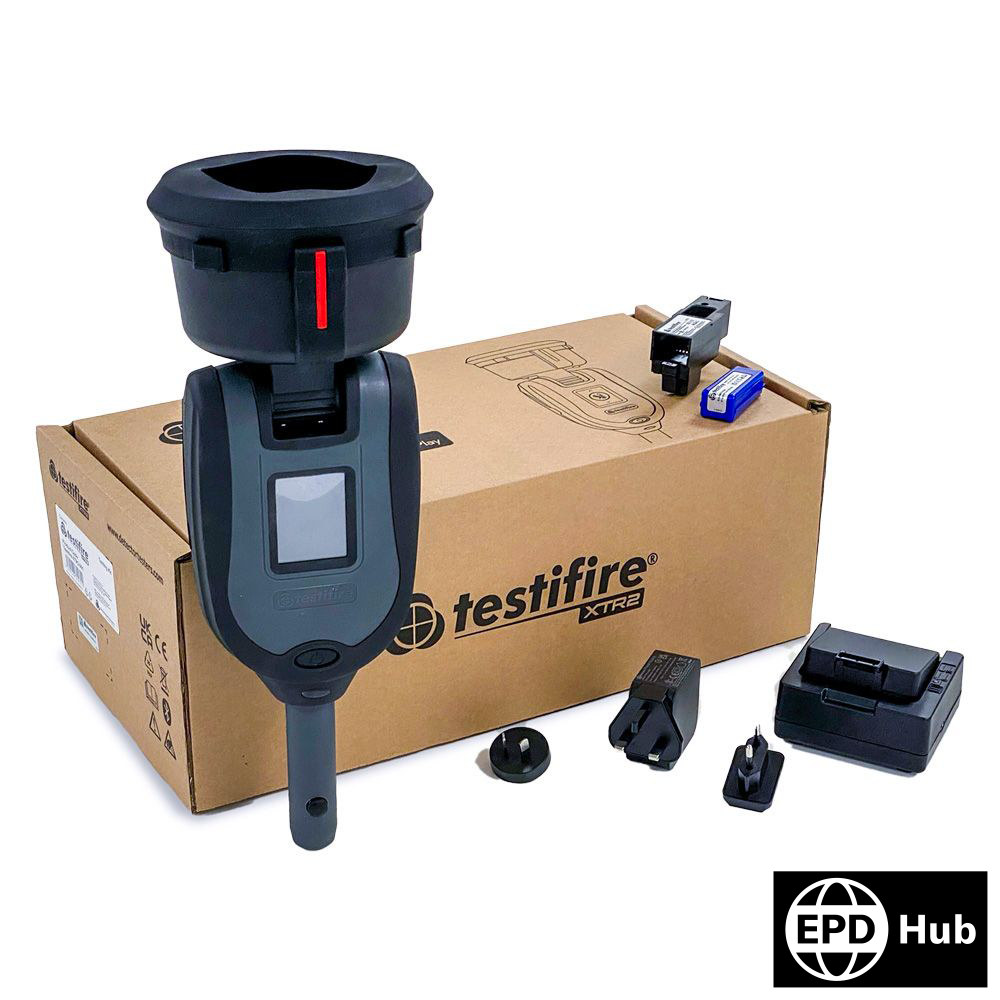

Kit contents
- Testifire XTR2 head
- Testifire smoke generator and TES3 smoke cartridge
- Testifire lithium-ion battery pack
- Battery charge cradle, mains power supply, car power adaptor and USB-C charger lead
- Quick start guide
ASD and flat detector smoke testing requires the separate adaptor TESTIFIRE-ADAP-001.
