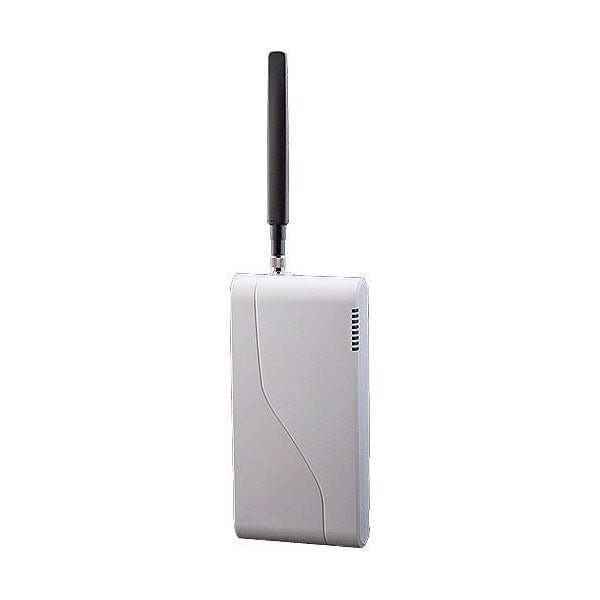

Telguard TG-4 LTE-A Residential / Commercial primary or backup alarm communicator on AT&T LTE network. Compatible with Most Panels
The TG4LA is the AT&T LTE version of the Telguard TG-4, a universal cellular alarm communicator for residential and light commercial systems. It can act as the primary path for alarm signals or as backup while monitoring an existing phone line, capturing the panel's dialer output and forwarding it to the central station.
Key Features
- Certified for the AT&T LTE network in the US; in Canada coverage is provided by Rogers, Telus and Bell Mobility
- Primary or backup alarm communicator; can monitor an existing phone line
- HomeControl Flex support for remote arming and disarming when installed in primary mode
- Dial capture supports Contact ID, SIA, Radionics Modem formats, Pulse 4x2/3x1, DMP, Sonitrol and other formats
- LED display for status and trouble reporting; works with the Telguard installer tools app
- Panel upload/download over the cellular path using the panel maker's existing software
- Standard Line Security supervision available
- Trip input for an additional sensor and two relays for reporting device troubles to the panel
- UL 1023, UL 985, UL 365, UL 1610; ULC S545, ULC C1023, ULC S304
Specifications
| Carrier |
AT&T LTE |
| Size (without antenna) |
9.5 H x 4.5 W x 1.75 D in |
| Listings |
UL 1023, UL 985, UL 365, UL 1610, ULC S545, ULC C1023, ULC S304 |
Compatible With
- Most residential and commercial alarm panels with a dialer
- Telguard BMR-1208 battery
- Telguard ACD antenna cables
- Telguard HGDL-0 antenna
