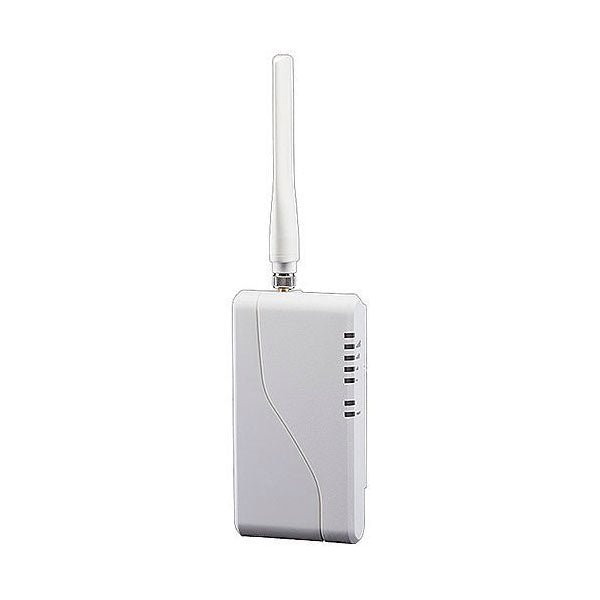

Telguard TG1LX — TG-1 Express LTE-V residential cellular alarm communicator, certified for use on the Verizon LTE network.
It carries full data from household security and fire panels to a central station over the cellular network, for homes with no telephone line. It captures the panel dialer output rather than using a proprietary data bus, and is powered by the panel.
- Dial capture supporting Contact ID, SIA2 and other common alarm formats
- Falls back to 3G or 4G where an LTE network is not available
- 128 bit AES encrypted alarm signals; programmable daily, weekly or monthly self-test
- Available trip input plus two programmable supervisory trip output (STC) relays
- 110 mA nominal and 250 mA transmit at 12V DC; antenna with SMA connector; FCC Part 15 and 27
- 5.6 in. H × 2.9 in. W × 1.3 in. D without the antenna
- UL 985 household fire warning and UL 1023 household burglar alarm; ULC S545 and ULC C1023
Those are household listings rather than commercial standards, which is what makes this a residential unit, and Telguard lists it as a primary communication path. TG1LAX is the AT&T version of the same TG-1 Express and carries different LTE bands.
