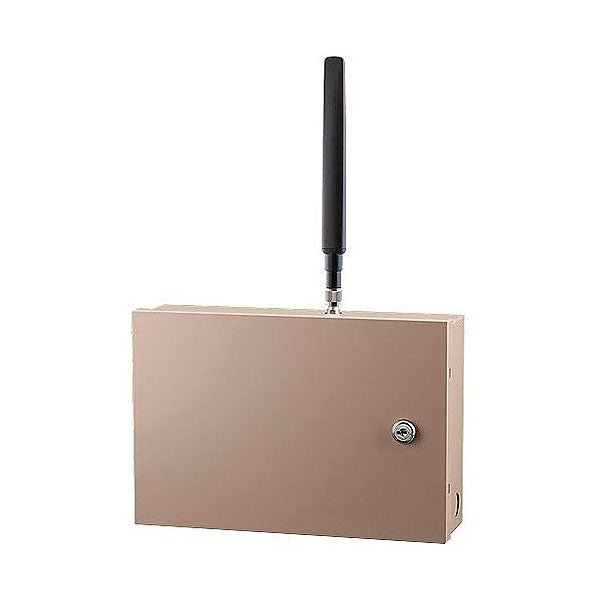

Telguard TG-7E-A Commercial Cellular Ethernet alarm communicator for AT&T 5G (LTE-M) network
The TG-7E-A is the AT&T version of the Telguard TG-7E, a dual-path commercial intrusion alarm communicator that sends signals over a wired LAN/Internet connection and over LTE-M cellular. Either path can be primary with the other as backup, or the unit can run as a cellular-only device. It connects to the alarm panel through the dialer connection and is powered from the panel or the included plug-in transformer.
Key Features
- Two communication paths: wired LAN/Internet and LTE-M cellular, with automatic failover
- Can also be configured as a cellular-only device
- Powers from the panel's auxiliary DC supply or the included plug-in transformer
- Interfaces with the panel through the dialer (DACT) connection
- 256-bit encryption, Standard Line Security, tamper switch included
- Trip input and two relays for reporting device troubles to the panel
- Compatible with the TG-PEM for added zone inputs
- UL 1610 Central Station; ULC S304 Commercial Burglary (AT&T model)
Specifications
| Network |
AT&T LTE-M plus Ethernet LAN |
| Current draw, standby |
18 mA @ 24 VDC; 40 mA @ 12 VDC |
| Current draw, transmit |
110 mA @ 24 VDC; 200 mA @ 12 VDC |
| Compatible formats |
CID (Contact ID), SIA, Pulse (4x2, 3x1), Radionics Modem (IIe/3a2,4), DMP |
| Antenna port |
50-ohm TNC connector (female) |
| Size (without antenna) |
7.5 H x 11.5 W x 3.5 D in (19.05 x 29.21 x 8.89 cm) |
| Listings |
UL 1610; ULC S304 |
Compatible With
- Commercial intrusion alarm panels with a dialer
- Telguard TG-PEM Power & Expansion Module
- Telguard high-gain/directional antennas and ACD antenna cables
