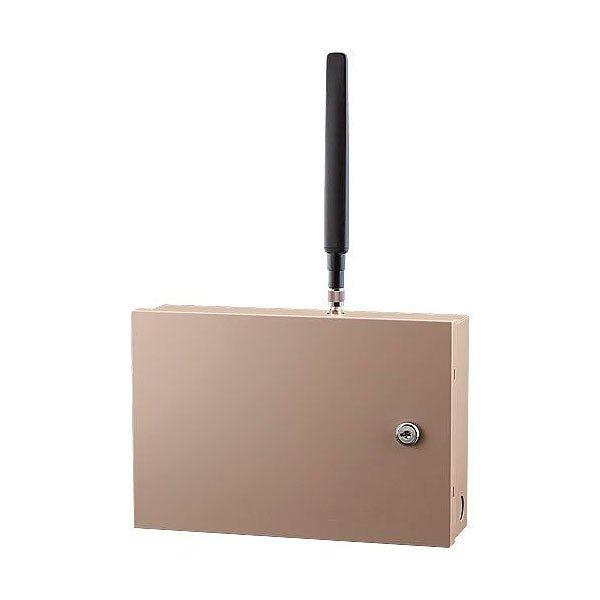

Telguard TG-7-V 5G LTE-M Commercial Cellular Alarm Communicator on Verizon 5G (LTE-M) network
The TG-7-V is the Verizon version of the Telguard TG-7, a universal commercial intrusion cellular alarm communicator that operates on the LTE-M network. It captures the alarm panel's dialer output and sends the signal over cellular, working either as the primary path or as backup to a phone line. It can be powered from the panel's auxiliary DC output or from the included plug-in adapter.
Key Features
- Verizon LTE-M model (US only)
- Primary or backup cellular path for commercial intrusion panels; can replace or supplement a telephone line
- Powers from the alarm panel's auxiliary DC output or from the included plug-in AC adapter
- Interfaces with the panel through the Telco/DACT (dial capture) connection
- 2 supervisory (STC) relay outputs and 1 trip input
- Standard Line Security and 256-bit encryption; multiple supervision settings
- Supports the TG-PEM accessory to add 8 zone inputs
- Configured through the Telguard online dealer portal
- UL 1610 Central Station
Specifications
| Network |
Verizon LTE-M (US only) |
| Current draw |
Standby 40 mA @ 12 VDC; transmit 200 mA @ 12 VDC |
| Compatible formats |
CID (Contact ID), SIA, Pulse (4x2, 3x1), Radionics Modem (IIe/3a2,4), DMP |
| Size (without antenna) |
7.5 H x 11.5 W x 3.5 D in (19.05 x 29.21 x 8.89 cm) |
| Package contents |
TG-7 communicator, antenna with extension cable, AC adapter, tamper switch |
| Listings |
UL 1610 |
Compatible With
- Alarm panels with a dialer (Contact ID, SIA, pulse, modem, DMP formats)
- Telguard TG-PEM
- Telguard ACD antenna cables
- Telguard HGDL-0 / EXDL-0 antennas
