Area of Rescue Surface Flush Mount Call Station

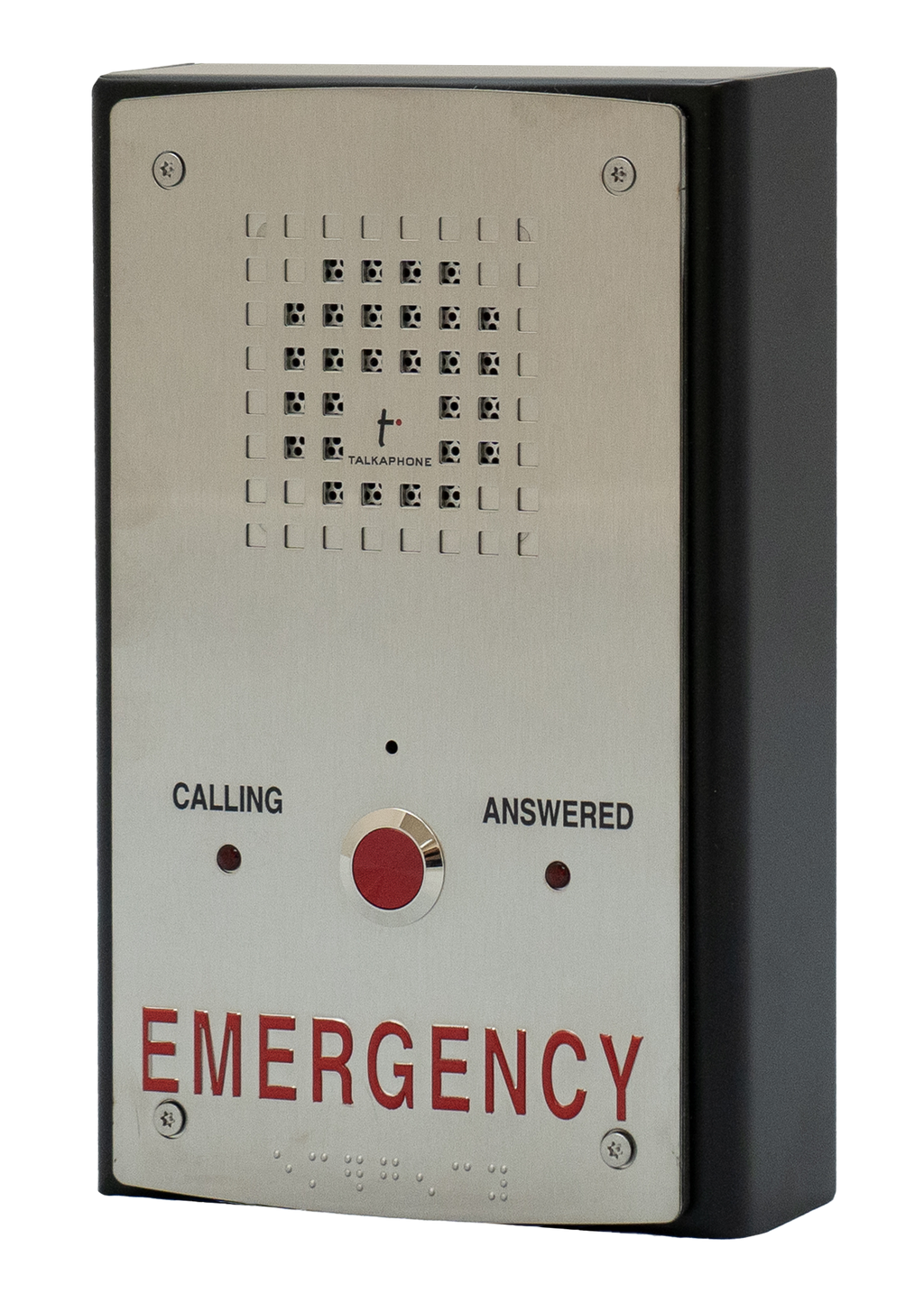

The Talkaphone AOR-CSE-SM is an indoor, hands-free, ADA-compliant analog call station for area of rescue assistance systems, supplied with a surface mount and "EMERGENCY" verbiage. It is powered from the phone line, so it needs no power supply or battery backup. Pressing the button once places the call; a built-in auto-dialer can step through up to five numbers and a recorded message identifies the station location to the attendant.
Key Features
- Includes surface mount
- Compliant with IBC, ADAAG, ICC A117.1 Ch. 7 and NFPA 72 (per manufacturer)
- Vandal resistant stainless steel faceplate and metal button
- Phone line powered - no power supply or battery backup needed
- Two LED indicators for the hearing impaired ("CALLING" and "ANSWERED")
- Built-in auto-dialer dials up to five numbers in sequence
- Auto-answer on inbound calls
- Recorded location message plays at the beginning of the call
- Optional relay output (-1RO version)
Specifications
| Dimensions (W x H x D) |
5.50 x 8.38 x 2.25 in (140 x 213 x 57 mm) |
| Weight |
6.0 lbs (2.7 kg) |
| Construction |
0.09" (2.2 mm) #4 brushed 304 stainless steel faceplate |
| Communication |
2-way hands-free |
| Power source |
Phone line powered (requires 20 mA at 24 V off-hook) |
| Connection |
Parallel tip and ring flying leads |
| Wiring requirements |
1 twisted-shielded pair |
| Dialing capacity |
Up to 20 digits for each of five phone numbers |
| Operating temperature |
32 °F to +158 °F (0 °C to +70 °C) |
| Relative humidity |
Up to 95% non-condensing |
| Warranty |
5-year limited |
Compatible With
- Talkaphone analog AOR systems / command units (AOR-5, AOR-10, AOR-16)
