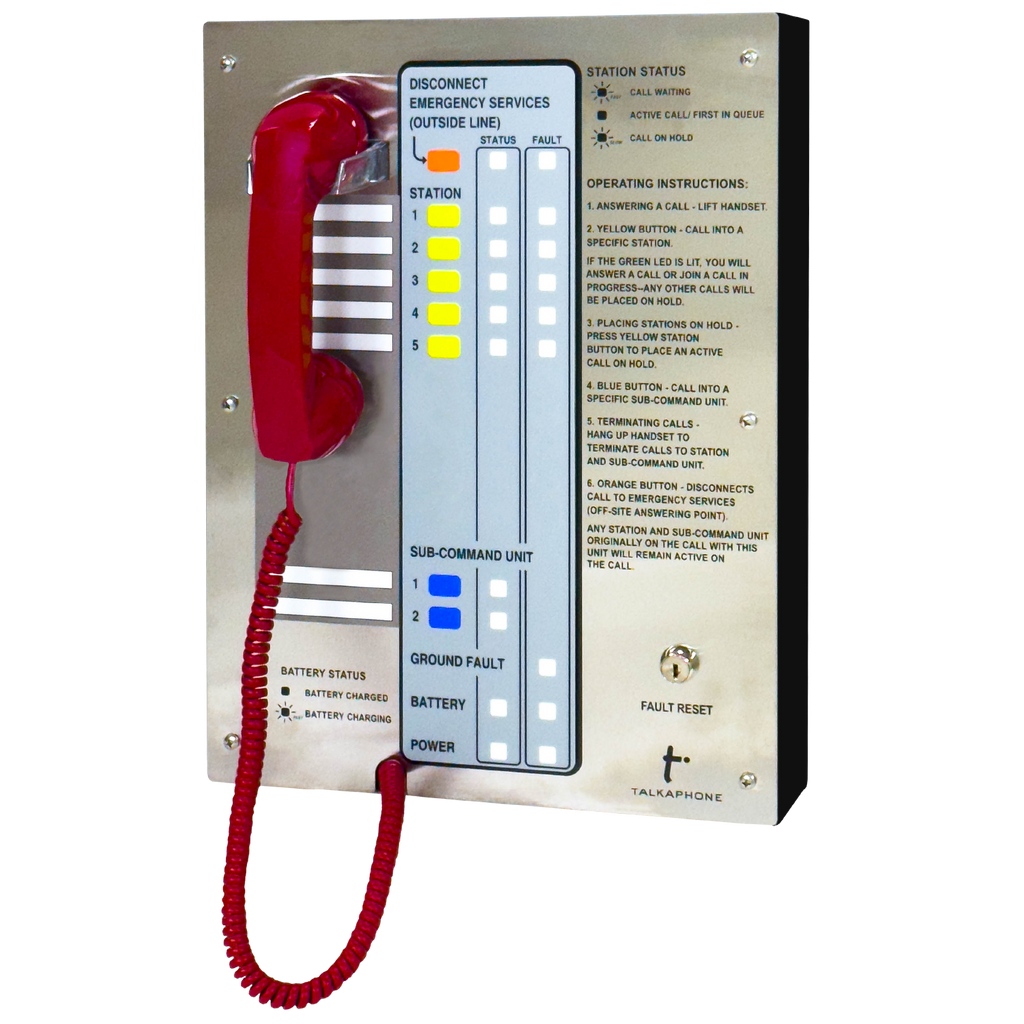

Talkaphone AOR-5 is a fixed-station analog Area of Rescue command unit that handles up to five ADA-compliant area of rescue stations.
It gives audible and visual signals for incoming calls, with LEDs showing which location is calling. The product data states compliance with NFPA 72 (2016) 24.10, IBC (2018) 1009, ICC A117.1 (2017) Chapter 7 and ADAAG (2010) Chapter 7.
Features
- Supports up to five area of rescue stations
- LED shows calling location; audible call indication
- On-site calling needs no outside phone line; off-site calling needs one analog PSTN line
- Calls queue first-in, first-out, with the next call placed after the first completes
- Supervises for opens, shorts, ground fault, low battery backup and 24 VDC input power failure
- Relay output alerts an addressable fire panel; LED and sounder also indicate trouble
Specifications
| Product type |
Area of rescue command unit |
| Channels |
5 |
| Mounting |
Flush or surface mount |
| Height |
18" |
| Width |
13.3" |
| Depth |
6.9" |
| Use |
Indoor |
| Compatible stations |
AOR-CSE-FM, -NM, -SM and the -1RO versions |
