System Sensor WFD25EXP Waterflow Detector 25 In. Explosion-Proof

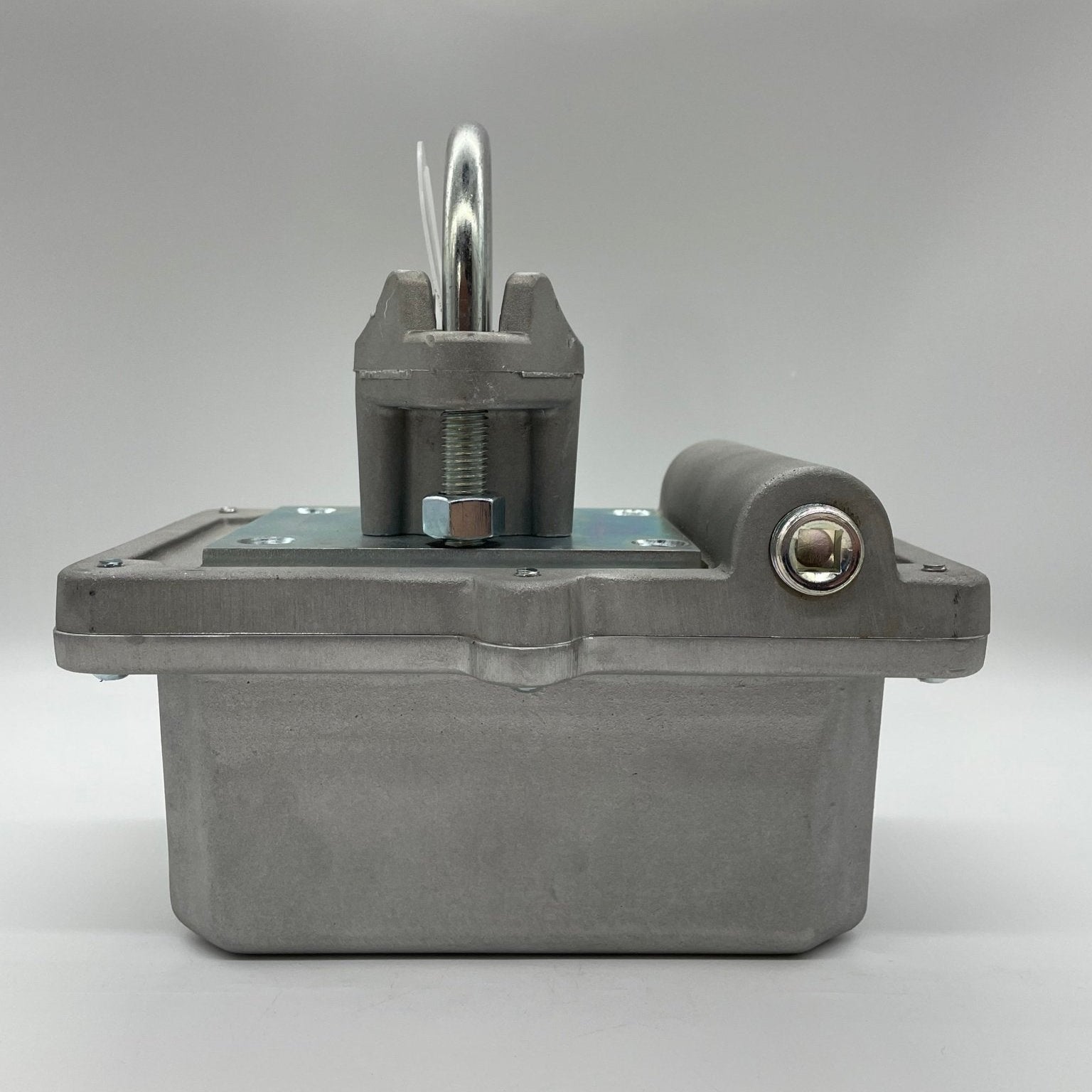

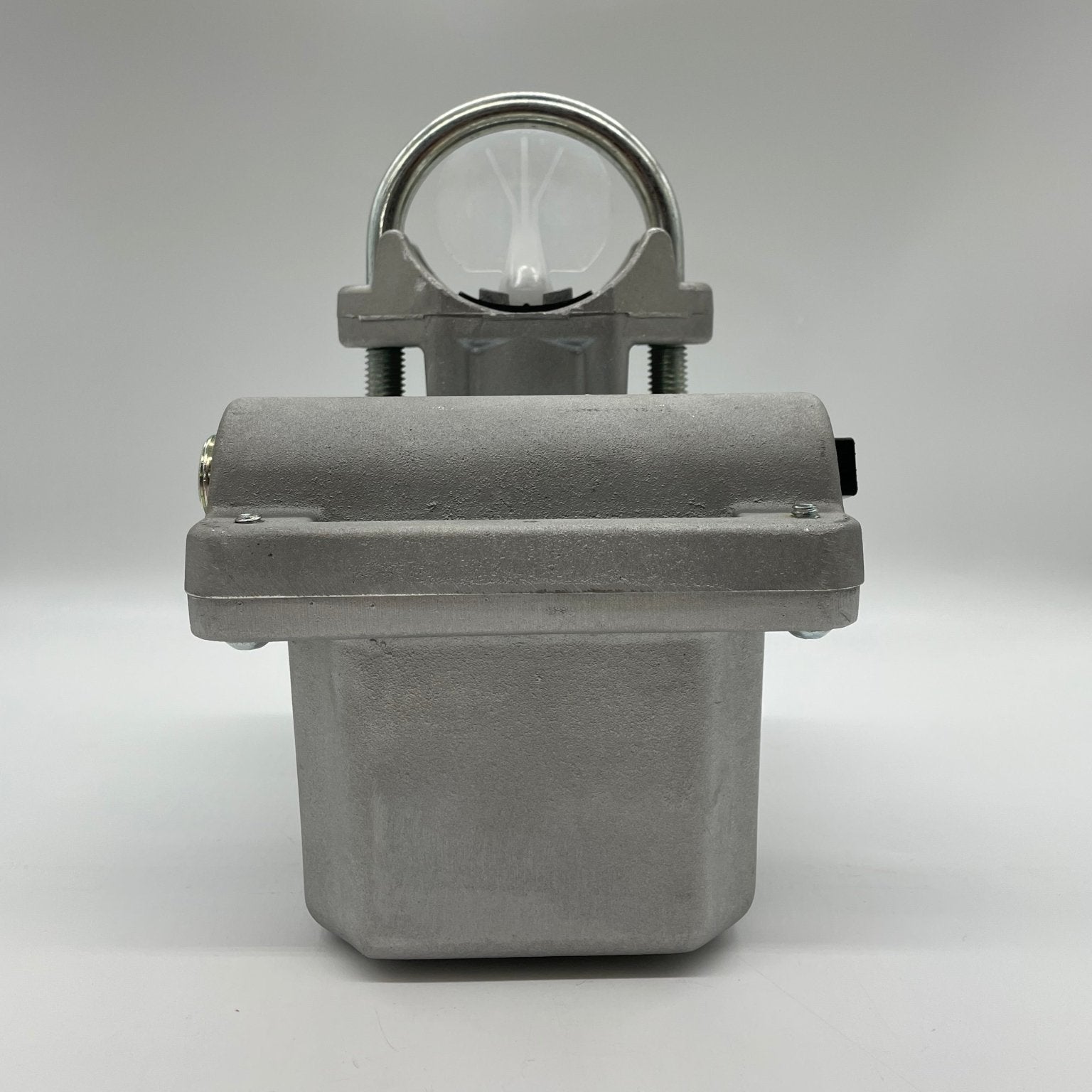

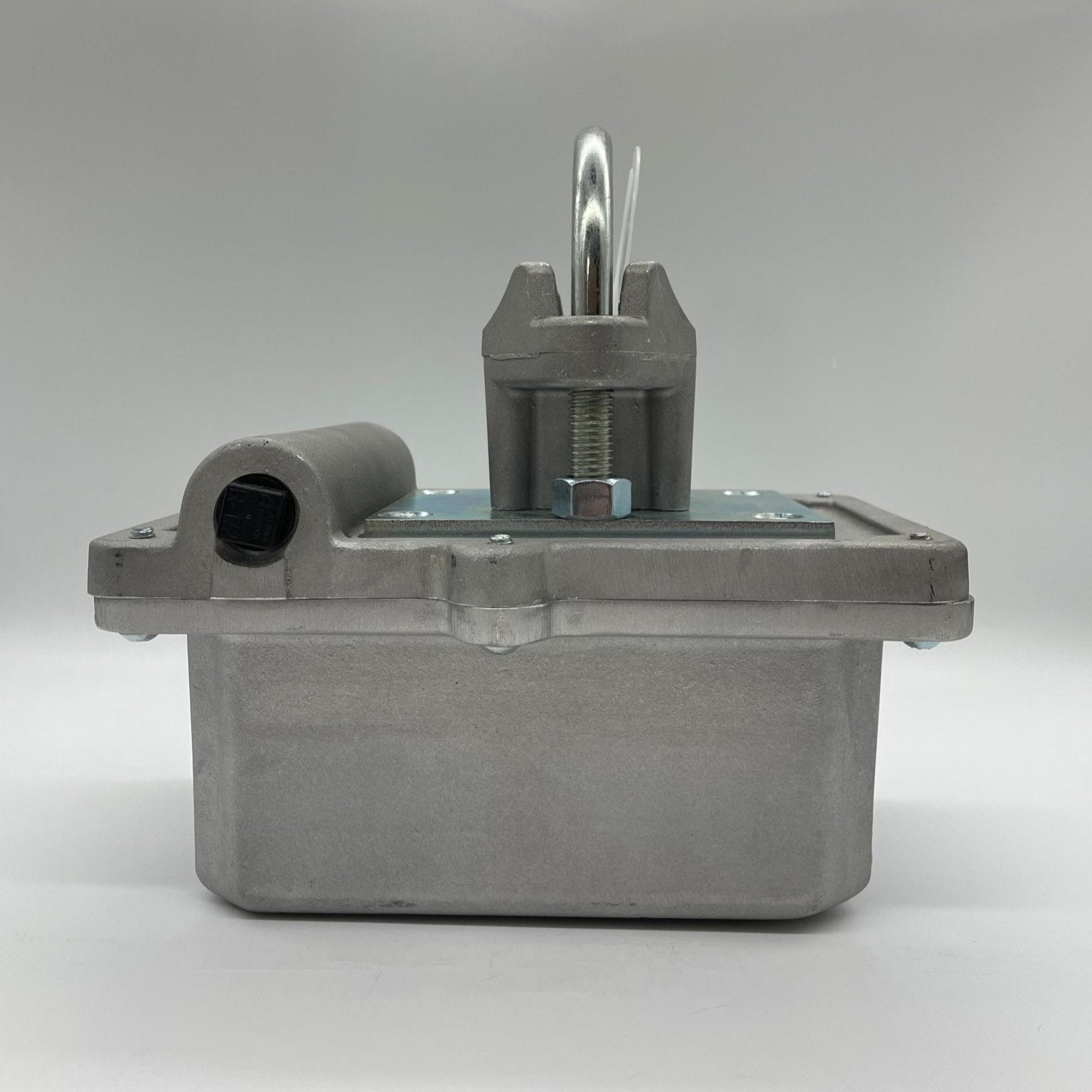

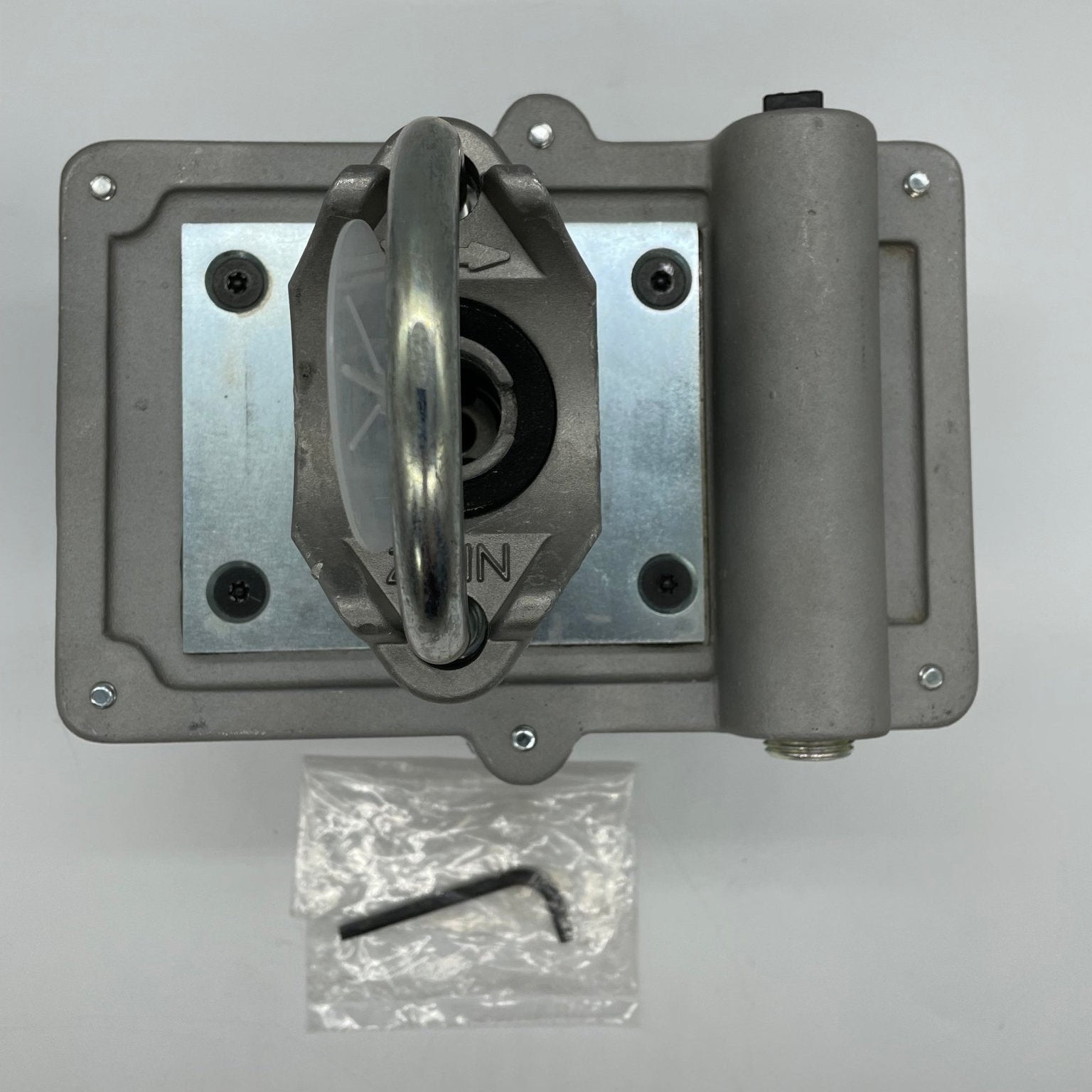

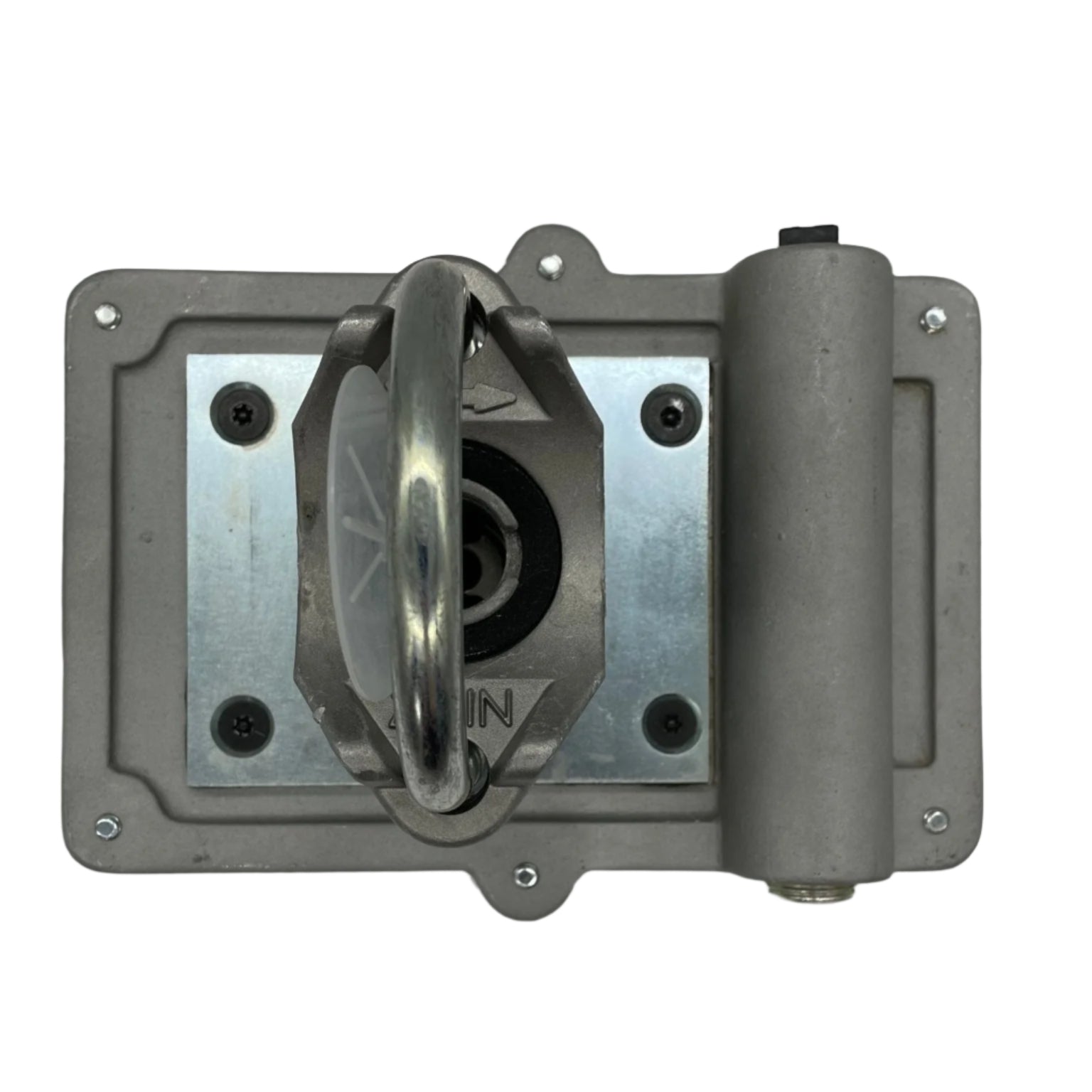

The WFD25EXP is a System Sensor explosion-proof vane-type waterflow detector for 2.5 in. steel pipe in wet-pipe sprinkler systems. It signals when water flow exceeds the trigger threshold and is housed in a NEMA 4 enclosure rated for hazardous atmospheres.
Key Features

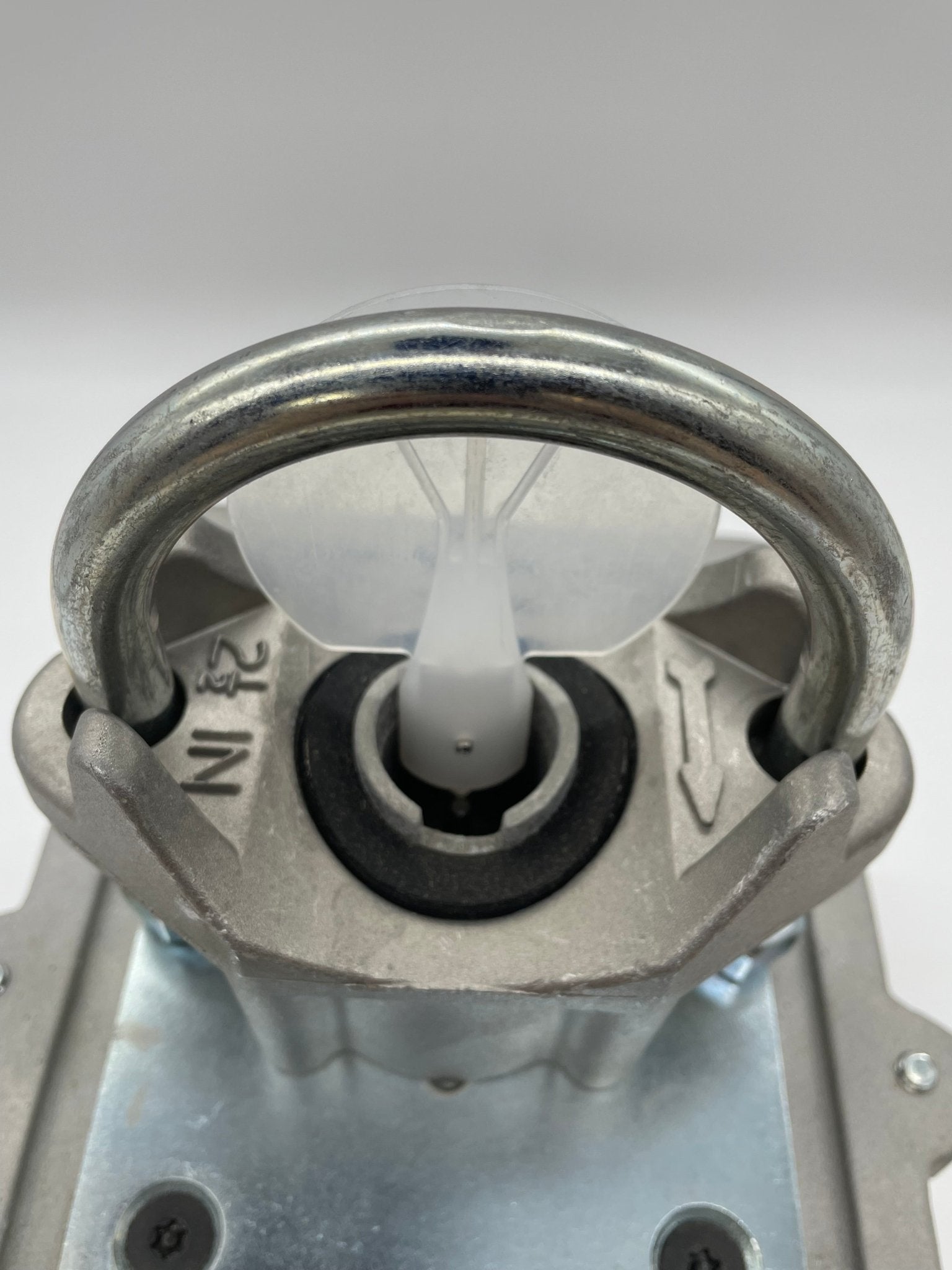

- Vane-type waterflow detector for wet-pipe sprinkler systems
- For 2.5 in. steel pipe, schedule 10 through 40
- NEMA 4 enclosure for indoor/outdoor use
- Hazardous locations: Class I, Div. 1, Groups B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1
Specifications
| Pipe size |
2.5 in. |
| Pipe schedule |
10 through 40 |
| Maximum pressure rating |
450 psi |
| Contact ratings |
10 A @ 125/250 VAC; 2.5 A @ 24 VDC |
| Flow trigger threshold |
4 to 10 gpm |
| Operating temperature |
32 to 120 F (0 to 49 C) |
| Enclosure |
NEMA 4 |
Compatible With
- Wet-pipe sprinkler systems with 2.5 in. schedule 10-40 steel pipe
