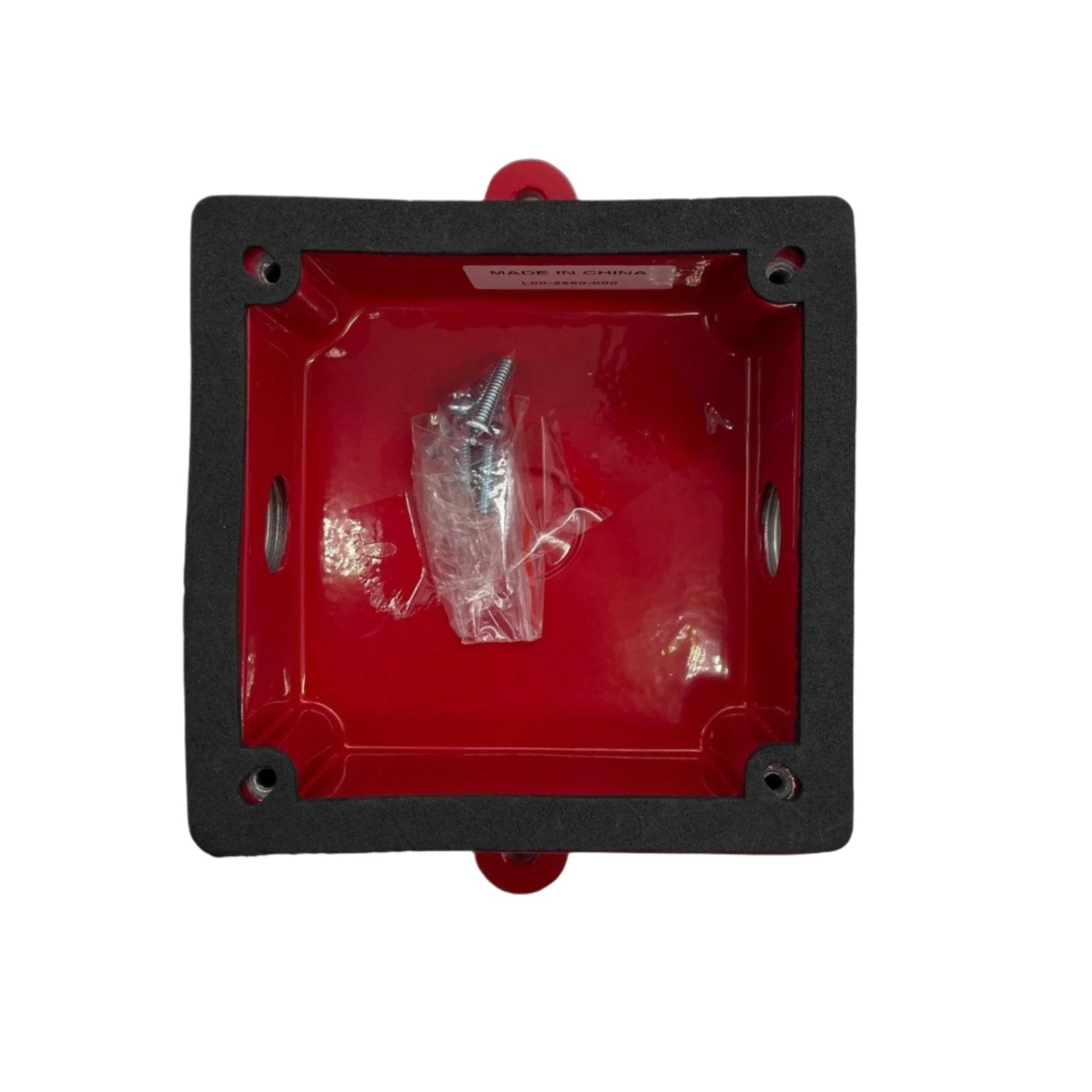

System Sensor WBB — red weatherproof back box for legacy SpectrAlert wall appliances and SSM/SSV bells.
A weatherproof-listed horn or strobe only holds its outdoor listing when mounted in the back box it was listed with, and the WBB is that box. It gives a gasketed enclosure with threaded conduit entries so the appliance can be surface or flush mounted outdoors without breaking the seal — unlike a standard electrical box, which lets water in behind the device.
- UL certified for SpectrAlert H12/24K, S1224MCK, P1224MCK and P12015K series wall horns and strobes
- Also listed for SSM24 and SSV120 bells
- 4.33"L × 1.55"W × 4.33"H; 0.125" foam gasket on the box top

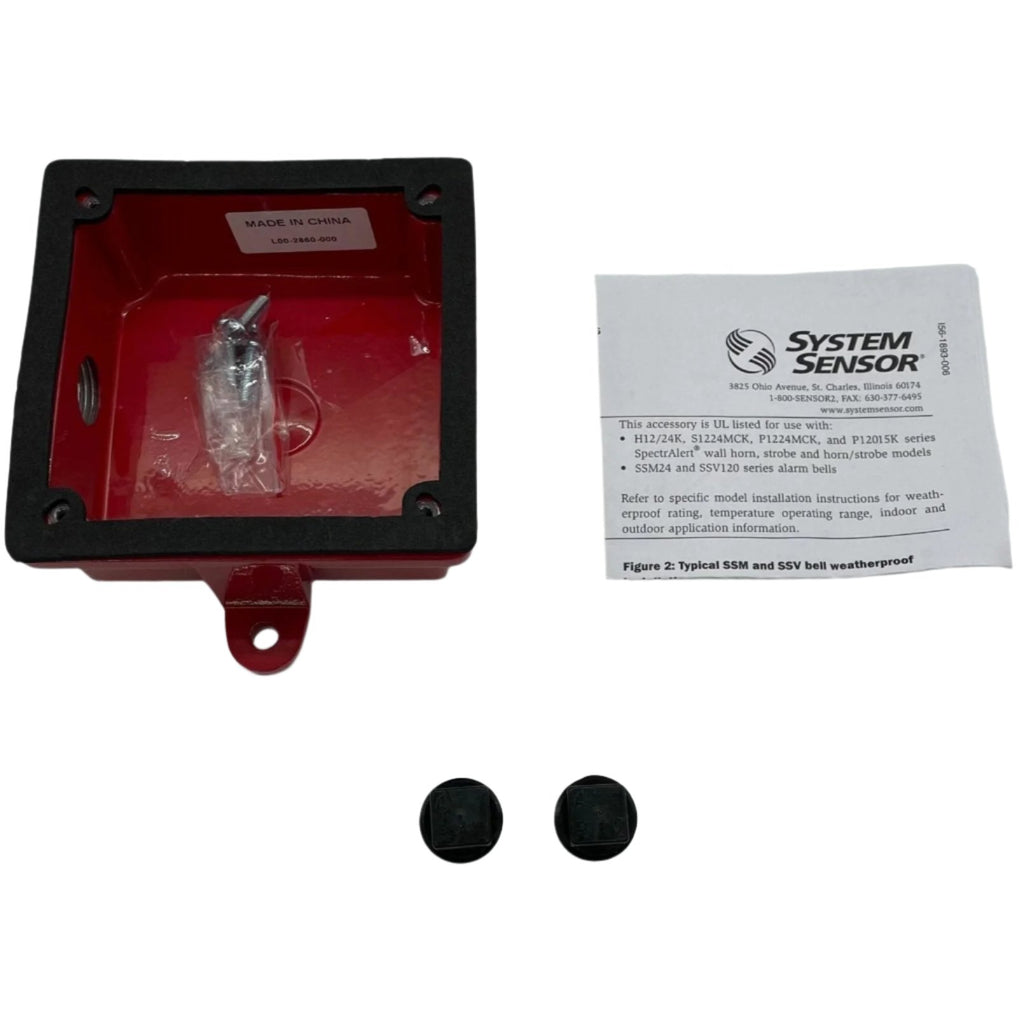

- Two 1/2" NPT threaded conduit openings, with two NPT plugs and one 7/8" knockout plug

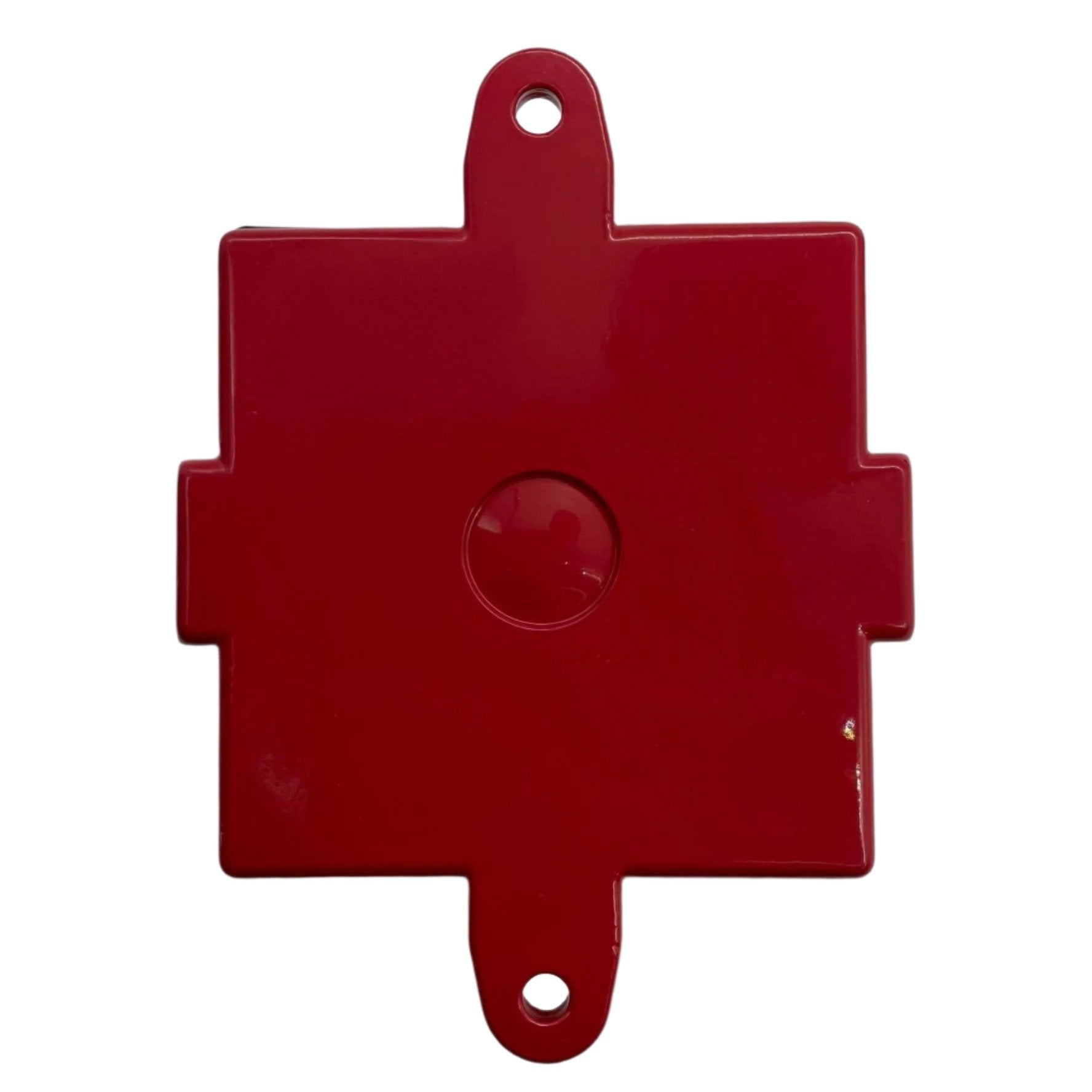

- Rear tabs with 0.25" eyelets; top holes #8-32 × 0.50" DP
Back box only — no appliance included. Any other back box voids the UL weatherproof and outdoor designation. SpectrAlert Advance appliances do not fit; they use SA-WBB (wall) or SA-WBBC (ceiling).
