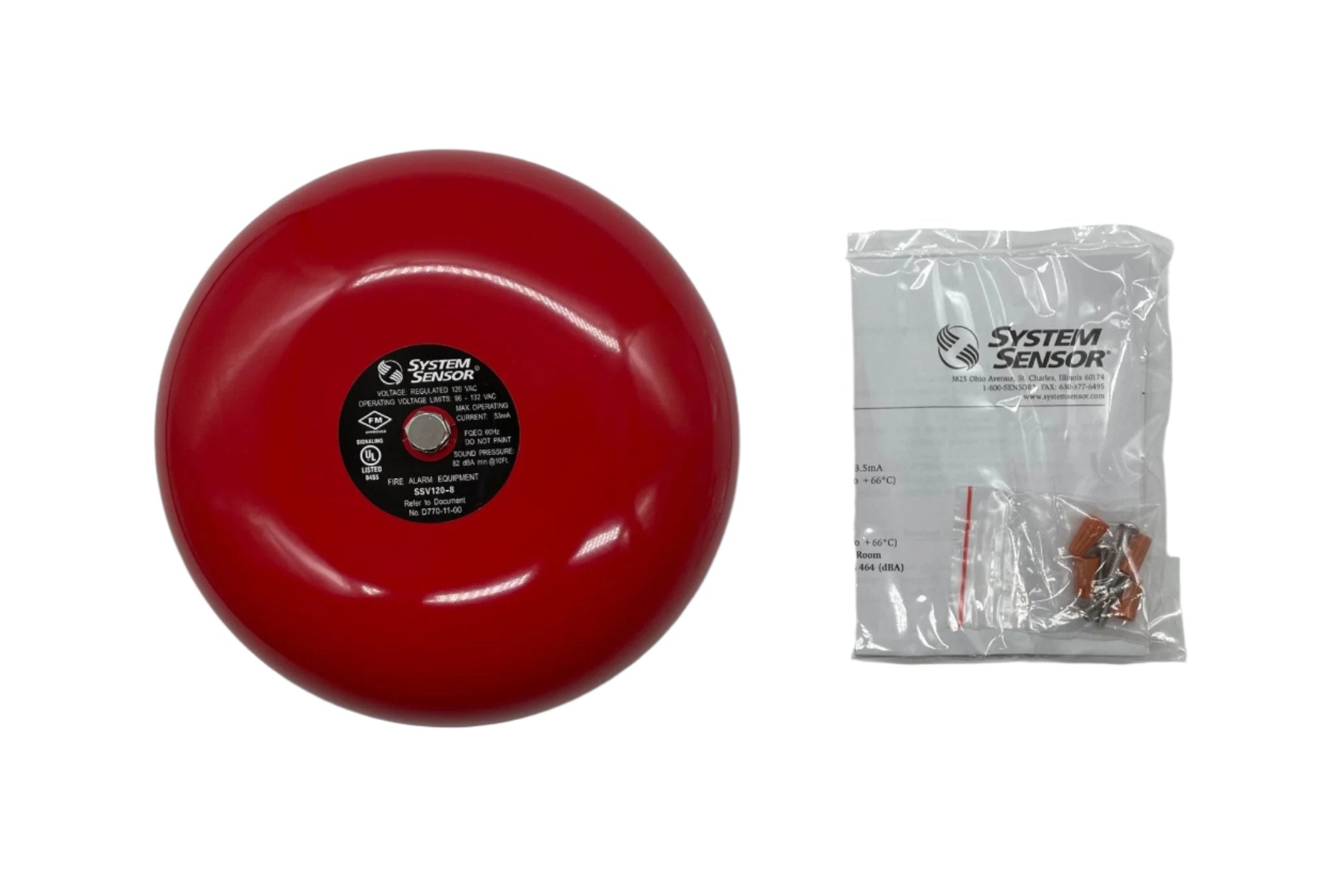

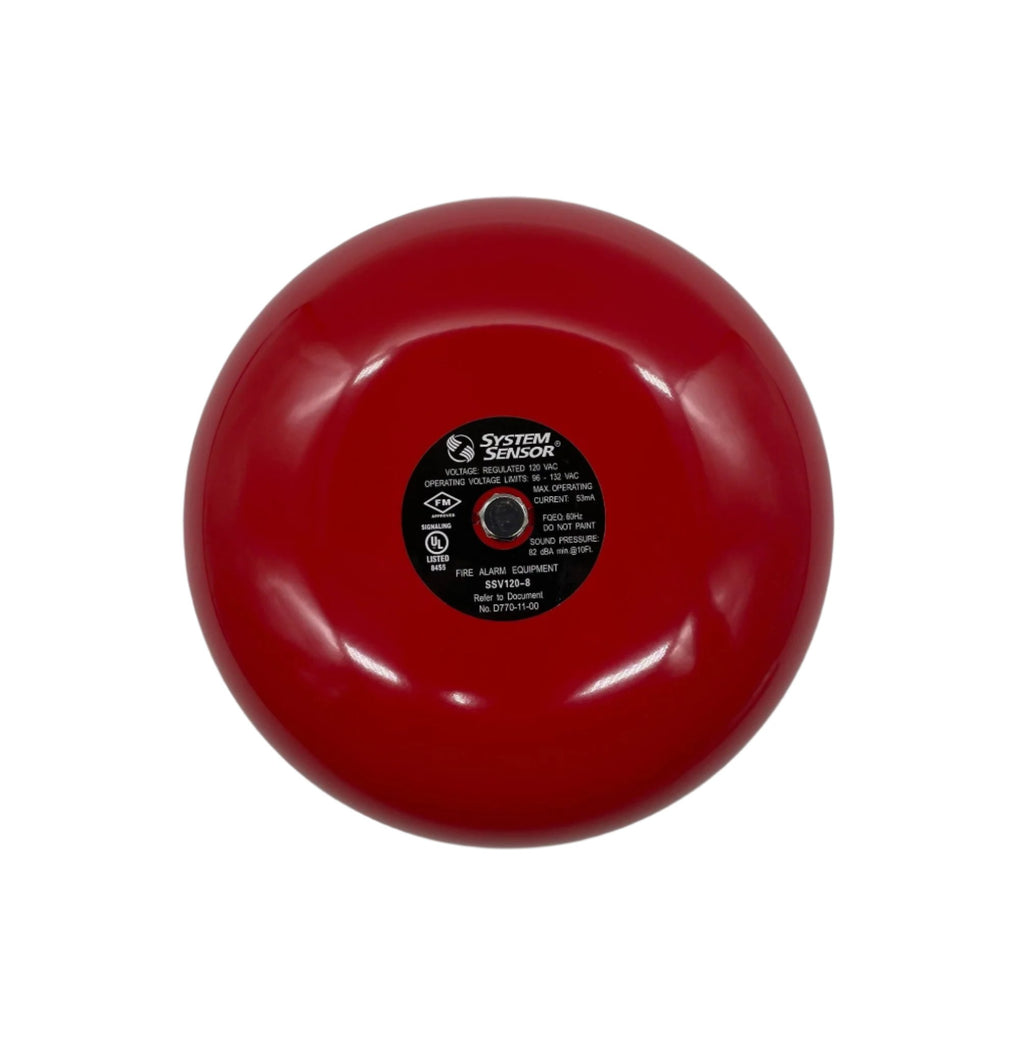

System Sensor SSV120-8 is an 8 in. alarm bell for 120 VAC circuits. It is red and approved for indoor and outdoor use.
The SSV series uses a vibrating mechanism, while the SSM series is motor driven and runs on 24 VDC. Indoors the bell mounts straight onto a standard 4 in. square electrical box; outdoors the WBB weatherproof back box is used.
Features
- 8 in. bell for 120 VAC
- Approved for indoor and outdoor use
- Low current draw of 0.047 A
- Pre-wired for simple installation

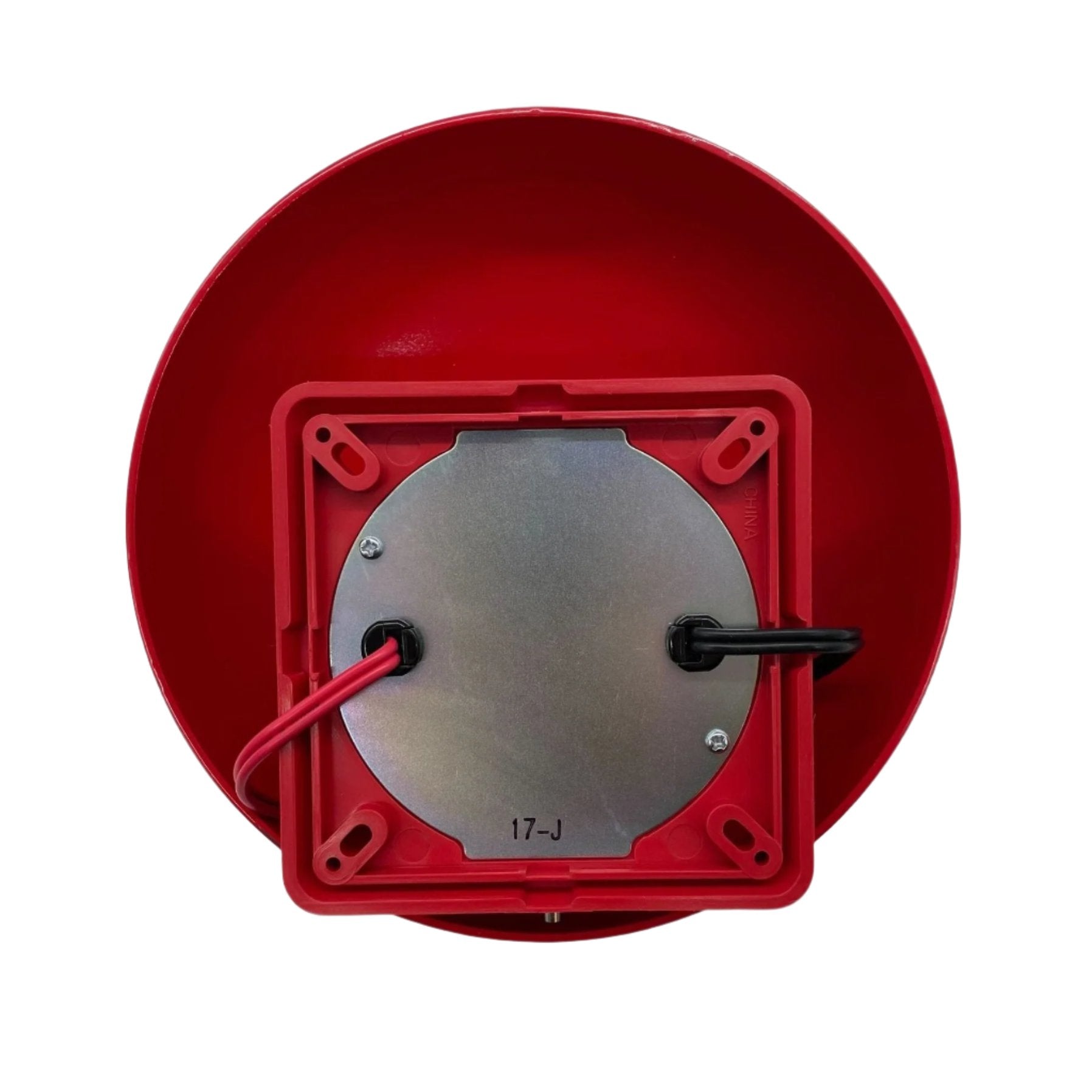

- Mounts directly on a standard 4 in. square box for indoor use
- WBB weatherproof back box for outdoor installation
- Operating temperature range of -31°F to 140°F
Specifications
| Product type |
Alarm bell |
| Voltage |
120 VAC |
| Current draw |
0.047 A |
| Diameter |
8 in. |
| Sound emission |
78 dB |
| Color |
Red |
| Operating temperature |
-31°F to 140°F |
| Use |
Indoor and outdoor |
