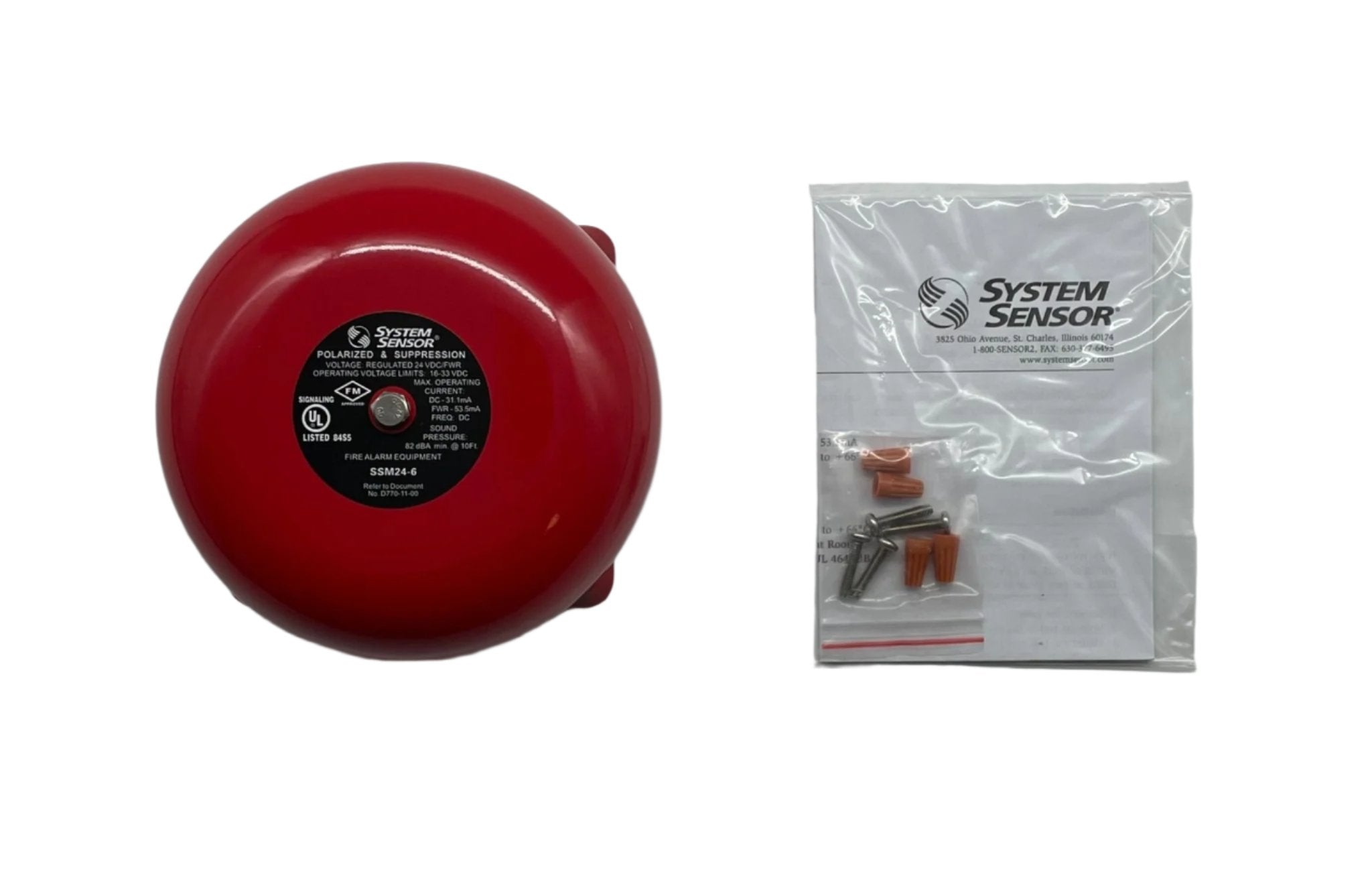

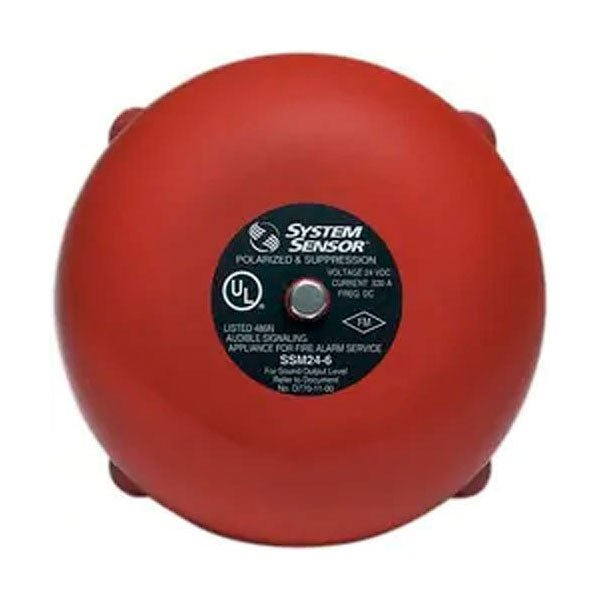

System Sensor SSM24-6 SSM Series Alarm Bell, 6 Inch, 24VDC, Polarized, 82 dBA, Red
The System Sensor SSM24-6 SSM Series Alarm Bell is a high-performance audible notification appliance designed for dependable fire alarm and general signaling applications. Operating on 24VDC, this motor-driven alarm bell produces a loud 82 dBA output, ensuring reliable occupant notification in commercial, industrial, and institutional environments.
The SSM24-6 features a polarized electrical design for use with supervised fire alarm circuits and comes pre-wired to simplify installation. Suitable for indoor installations when mounted to a standard 4-inch electrical box, it can also be used outdoors when paired with the optional WBB weatherproof back box.
Key Features
-
6-inch motor-driven alarm bell
-
Regulated 24VDC operation
-
Polarized for supervised fire alarm circuits
-
82 dBA sound output
-
Low current draw
-
High-performance audible notification
-
Pre-wired for faster installation
-
Suitable for indoor installations
-
Outdoor installation when used with the optional WBB weatherproof back box
-
Mounts directly to a standard 4-inch square electrical box
-
Ideal for fire alarm and general signaling applications
-
Genuine System Sensor notification appliance
Applications
The System Sensor SSM24-6 is ideal for:
Specifications
-
Manufacturer: System Sensor
-
Model: SSM24-6
-
Product Series: SSM Series
-
Product Type: Alarm Bell
-
Bell Diameter: 6 inches
-
Operating Voltage: Regulated 24VDC
-
Operating Voltage Range: 16 to 33VDC
-
Sound Output: 82 dBA
-
Electrical Design: Polarized
-
Current Draw: 31.1 mA DC / 53.5 mA FWR maximum
-
Mounting: Standard 4-inch square electrical box
-
Outdoor Installation: Requires optional WBB weatherproof back box
-
Color: Red
-
Application: Fire alarm, general signaling, and burglar alarm systems
Why Choose the System Sensor SSM24-6?
The System Sensor SSM24-6 delivers dependable audible notification with a powerful 82 dBA output, low current consumption, and a polarized design for supervised fire alarm circuits. Its durable construction, simple installation, and compatibility with both indoor and outdoor applications make it an excellent choice for reliable fire alarm and signaling systems.
Documents
FAQ
Can the SSM24-6 be mounted outdoors?
Yes, with the WBB weatherproof backbox. Indoors it mounts to a standard 4 inch square electrical box.
Is it polarized?

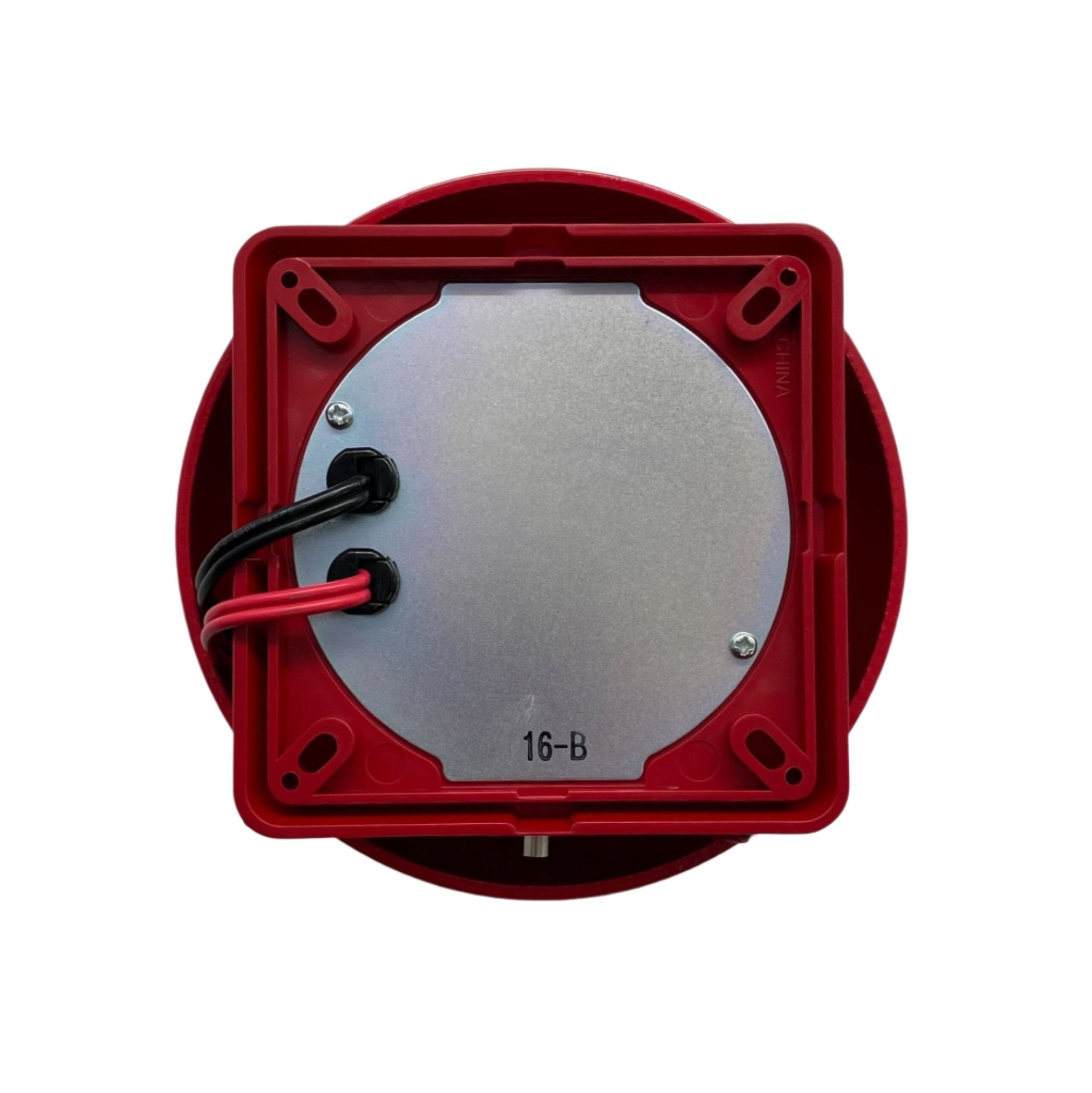

Yes. SSM Series bells are polarized for use with supervised circuits and come pre-wired with two sets of leads for in/out wiring.
What is the current draw?
Maximum 31.1 mA DC or 53.5 mA FWR at a regulated 24 VDC.
Are larger sizes available?
Yes. The SSM24-8 is an 8 inch bell at 80 dBA and the SSM24-10 a 10 inch bell at 81 dBA. The SSV series is the 120 VAC vibrating version.
