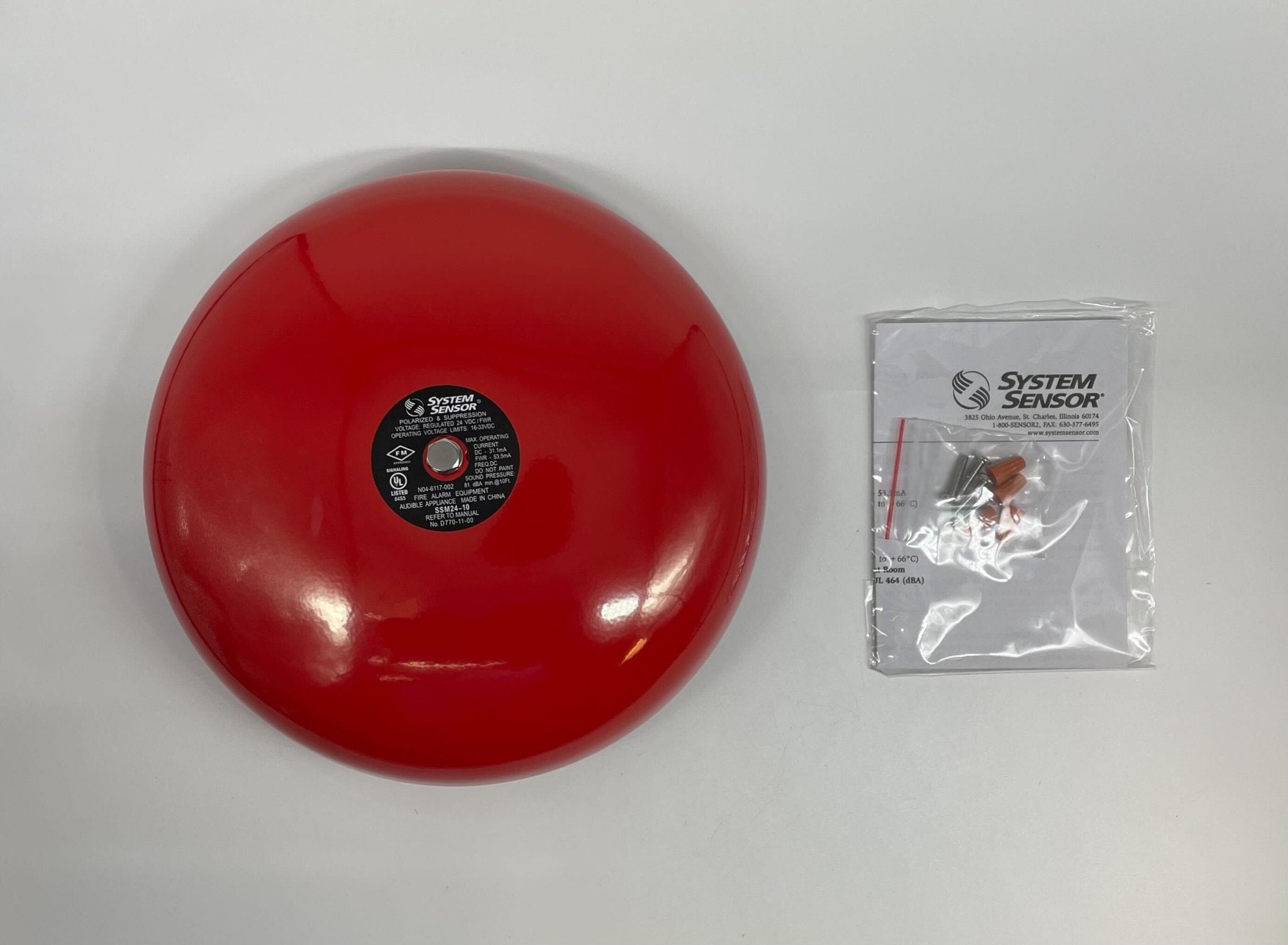

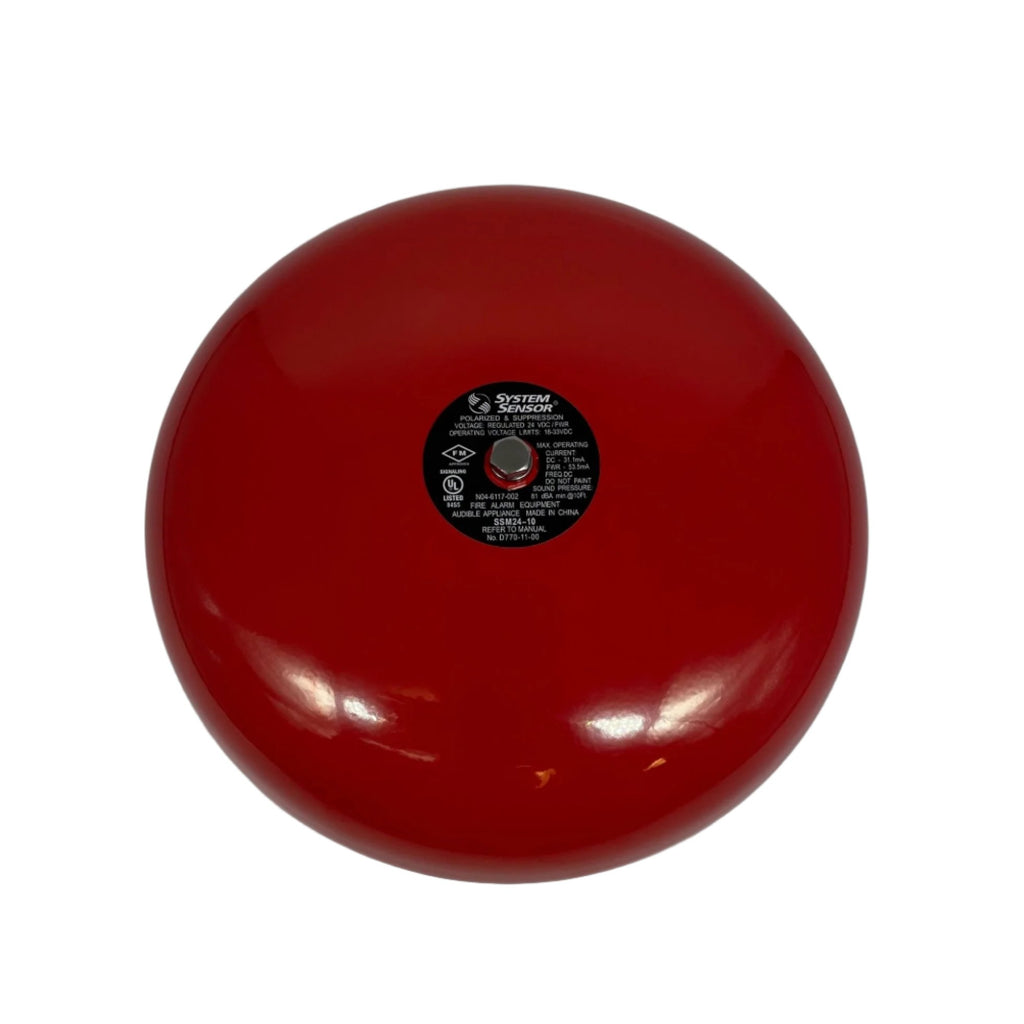

System Sensor SSM24-10 — 10 inch motor-driven alarm bell for 24 Vdc circuits, polarized for supervision.

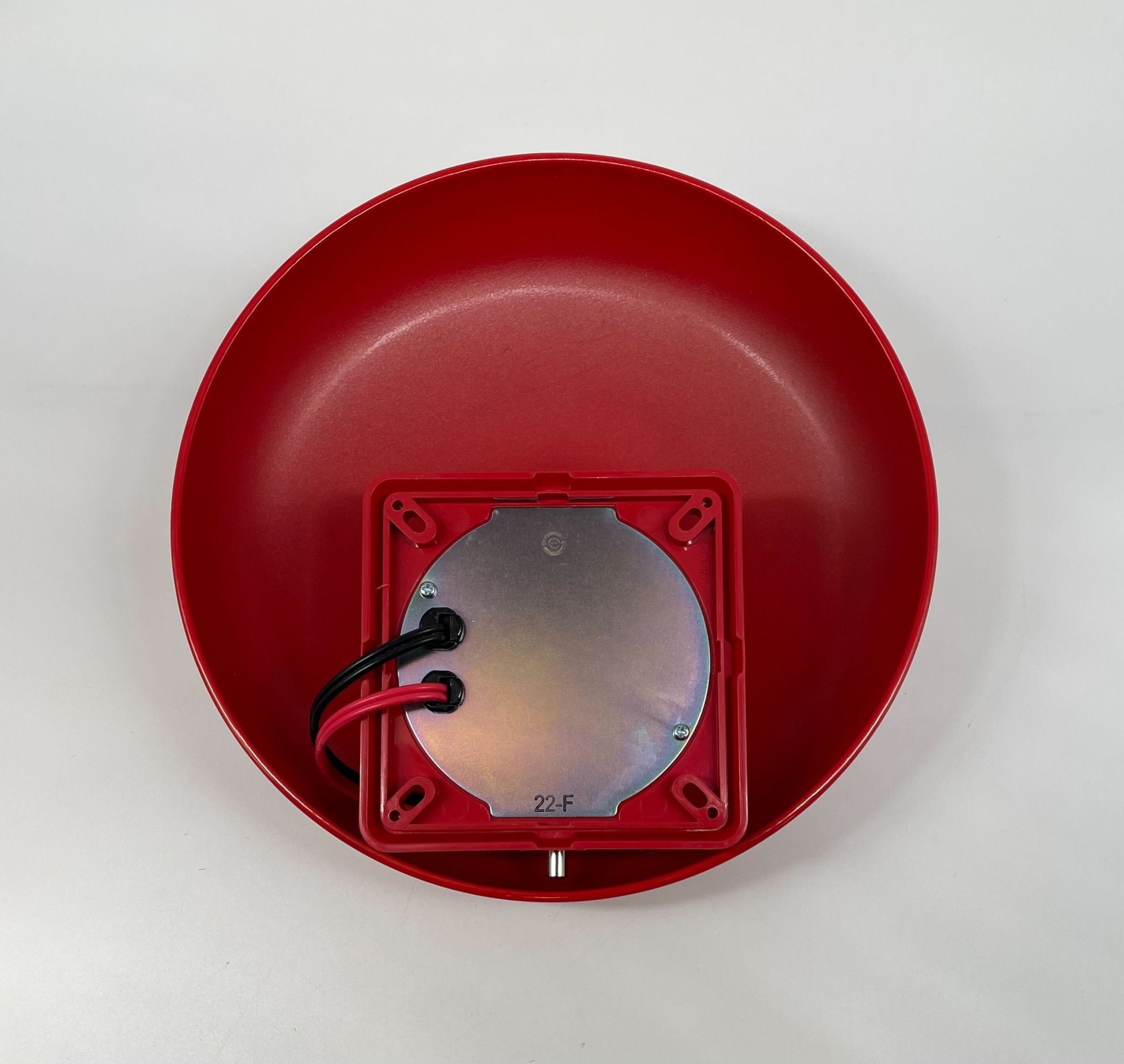

The SSM series drives an underdome striker with a motor, giving a loud resonant tone from a low current draw, and the polarized design lets a supervised circuit see the device through the standby reverse polarity. It arrives pre-wired with two sets of leads, for wiring in and out without splicing.
- 10 inch nominal gong diameter, regulated 24 Vdc nominal, 16 to 33 Vdc limit
- Maximum current 31.1 mA on DC and 53.5 mA on full-wave rectified supply
- 81 dBA, measured at Underwriters Laboratories by the method specified in UL 464
- Operating temperature -31 to 140 °F
- Mounts to a standard 4 inch square box; outdoors it takes the WBB weatherproof back box
- Listed service use covers fire alarm, general signalling and burglar alarm
Output does not rise with size here: SSM24-6 is rated 82 dBA and SSM24-8 is 80 dBA, so the 10 inch model sits between them. SSM24-10A is the same bell under its ULC Canadian listing, not a different appliance. SSV120-10 is the 120 Vac unit and uses a vibrating mechanism.
