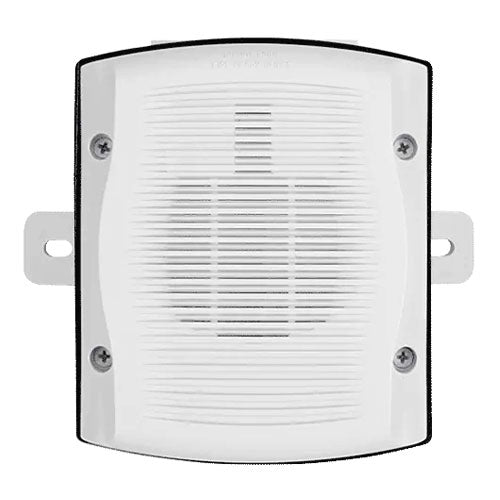

System Sensor SPWK SpectrAlert Advance Outdoor Speaker, Wall Mount, White, Includes Back Box
SPWK: Speaker · Wall · White
The SpectrAlert® Advance series of notification appliances offers a wide range of outdoor speakers for wall and ceiling applications. They are designed to be used at either 25 or 70.7 Volts, and operate at any one for four input power levels. These products are electrically backward compatible with the previous generation of SpectrAlert® speakers. With its low total harmonic distortion, the SpectrAlert® Advance SP series offers high fidelity sound output.
Key Features
- Weatherproof per NEMA 4X, IP56
- Rated from –40°F to 151°F
- Plug-in design and protective cover reduce ground faults
- Universal mounting plate with onboard shorting spring that tests wiring continuity before devices are installed
- Rotary switch for speaker voltage (25 and 70.7 Vrms) and power settings (1/4, 1/2, 1 and 2 watts)
- Compatible with System Sensor synchronization protocol and legacy SpectrAlert® products
- Tamper-resistant construction
Documents & Downloads
FAQ
Is a back box included?
Yes. Outdoor models with the K suffix include a weatherproof back box; the R-suffix versions are weatherproof replacement devices without a back box.
What voltage and power taps can be selected?
A rotary switch selects 25 or 70.7 Vrms and 1/4, 1/2, 1 or 2 watt taps. Rated outdoor speaker output is 81, 84, 87 and 90 dBA at 10 ft across those taps.
Is it rated for outdoor use?
Yes. It is weatherproof per NEMA 4X and IP56 and rated from -40°F to 151°F.
What certifications does it carry?
UL/ULC certified under file S4048, with CSFM 7320-1653:201 and MEA 10-08-E.
