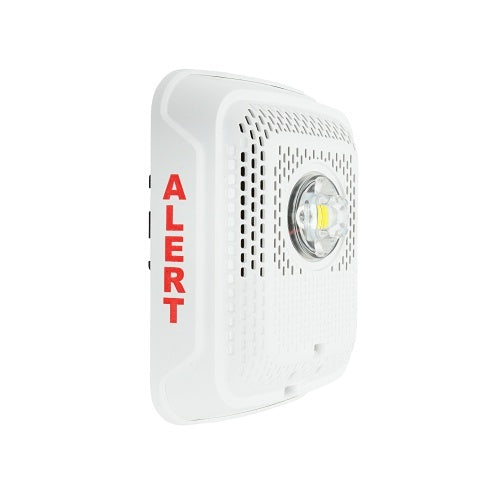

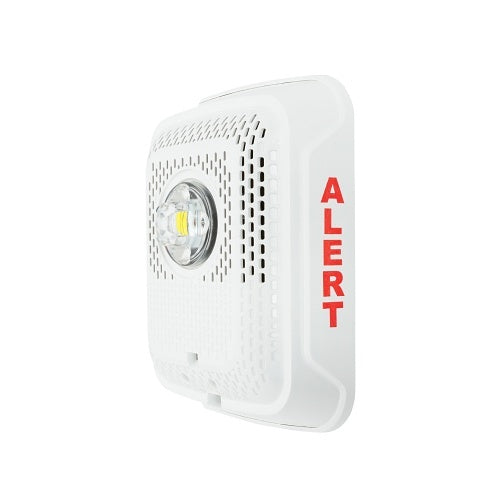

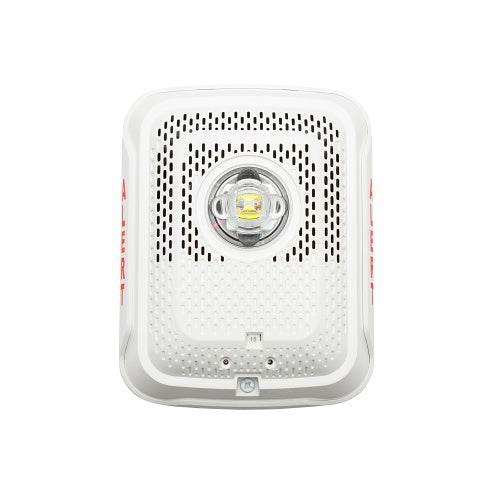

System Sensor SPSWLED-CLR-ALERT is an L-Series with LED 2-wire speaker strobe for indoor wall mounting, white, with ALERT marking and a clear lens. The LED strobe draws significantly less current than older xenon strobes across the full candela range, which gives more design flexibility on notification appliance circuits and reduces power supply requirements. Candela, speaker voltage and power are set with rotary switches, and Digital Volt Meter (DVM) test points on the face allow device and end-of-line voltage checks without removing the appliance.
Specifications
| Type |
2-wire speaker strobe, LED, wall mount |
| Color / marking |
White, ALERT, clear lens |
| Candela settings (wall) |
15, 30, 75, 95, 110, 135, 185 cd |
| Strobe current (16–33 VDC) |
15 cd: 18 mA; 30 cd: 22 mA; 75 cd: 70 mA; 95 cd: 75 mA; 110 cd: 85 mA; 135 cd: 105 mA; 185 cd: 120 mA |
| Strobe nominal voltage |
Regulated 24 VDC |
| Strobe operating range |
16 to 33 VDC |
| Flash rate |
1 flash per second |
| Speaker voltage |
25 V or 70.7 V (nominal) |
| Speaker power taps |
¼, ½, 1, 2 W |
| Speaker strobe sound output (UL reverberant at 10 ft) |
76 / 79 / 82 / 83 dBA at ¼ / ½ / 1 / 2 W |
| Frequency range |
400 to 4000 Hz |
| Maximum supervisory voltage |
50 VDC (speaker), 33 VDC (strobe) |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity |
10% to 93% non-condensing |
| Wire gauge |
12 to 18 AWG |
| Dimensions |
6.5" L x 5.0" W x 2.3" D; with SBBSPRL/WL surface back box 6.62" L x 5.12" W x 4.55" D |
Features
- Mounting plate with plug-in design and shorting spring to check wiring continuity before the device is installed
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices at 16–33 VDC
- Synchronization through UL-approved power supplies that support the System Sensor Sync protocol, or the System Sensor MDL sync module
- 520 Hz capable with a compatible fire alarm control panel
- No extension ring required; tamper-resistant construction
Related models
-
SPSWLED-ALERT — the same wall speaker strobe with an amber lens
-
SPSCWLED-CLR-ALERT — ceiling-mount white ALERT speaker strobe, clear lens
-
SPSWLED — white wall speaker strobe with FIRE marking
-
SBBSPWL — white wall surface-mount back box for speakers and speaker strobes
Documents
FAQ
What speaker settings are available?
Rotary switches select 25 V or 70.7 V speaker voltage and power taps of ¼, ½, 1 or 2 watts.
What candela settings does the wall model offer?
15, 30, 75, 95, 110, 135 and 185 candela, selected with a rotary switch.
Will it work with older System Sensor appliances?
Yes. It is electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices at 16 to 33 VDC.
How is the strobe synchronized?
Through UL-approved power supplies that support the System Sensor Sync protocol, or with a System Sensor MDL sync module.
