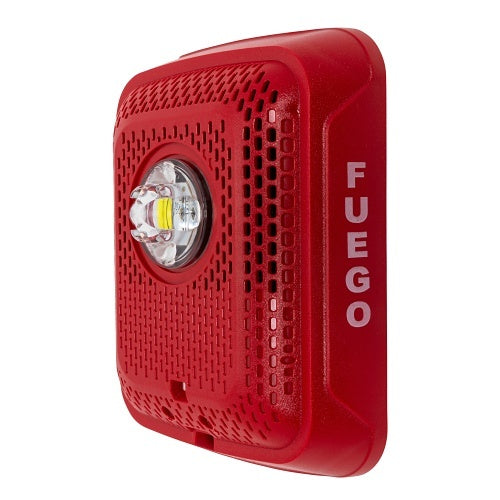

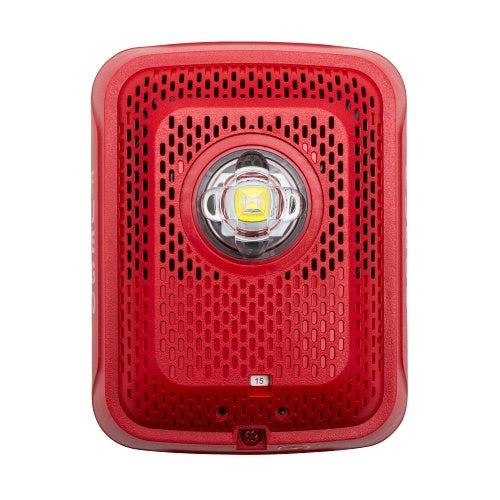

System Sensor SPSRLED-SP — two-wire L-Series with LED speaker strobe, wall mount, red, with FUEGO lettering.
System Sensor lists this number as 2-WIRE, SPEAKER STROBE LED RED WALL FUEGO, so SP is the Spanish print option and nothing about the electronics. LED replaced the xenon flashtube at far lower current, which governs how many appliances a circuit carries. Candela, line voltage and tap are rotary switches.
- Wall candela 15, 30, 75, 95, 110, 135, 185
- UL/ULC maximum strobe current, 16 to 33 VDC, same order: 18, 22, 70, 75, 85, 105, 120 mA
- Speaker taps 1/4, 1/2, 1 and 2 W at 25 or 70.7 VRMS nominal; 400 to 4000 Hz
- Minimum output 76, 79, 82, 83 dBA at 10 ft., UL reverberant and anechoic alike
- Strobe 16 to 33 VDC, one flash per second; 6.5 × 5.00 × 2.3 in. with lens
- 32 °F to 120 °F; 520 Hz capable with a compatible panel
The suffix is the marking, not the device: SPSRLED-P is plain, -B bilingual and bare SPSRLED the base red wall number. SPSCRLED is the red ceiling version, whose upper candela steps are 115, 150 and 177. SPRL, the speaker with no strobe, is louder at every tap: 79 to 88 dBA.
