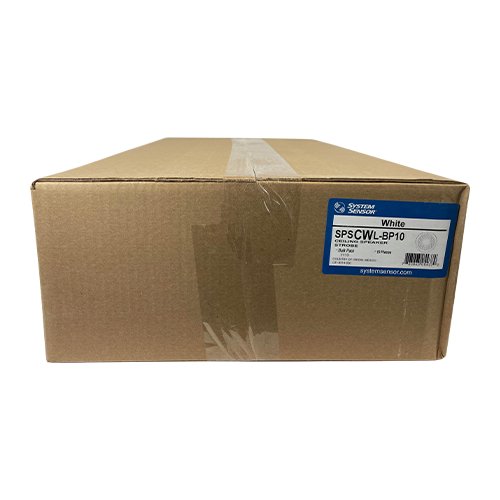

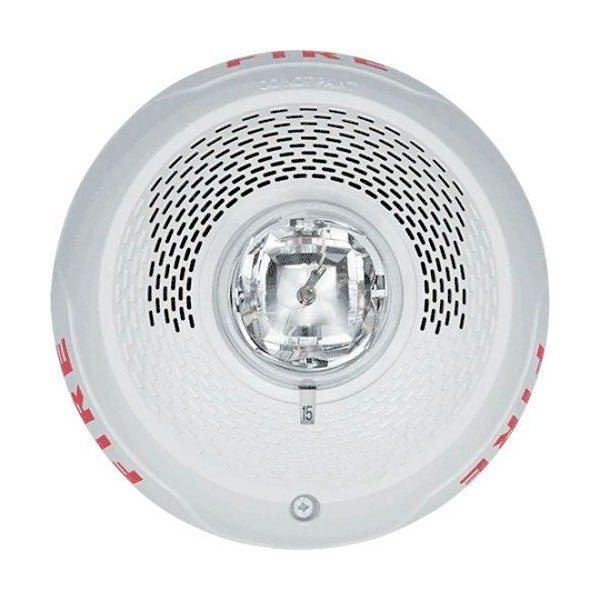

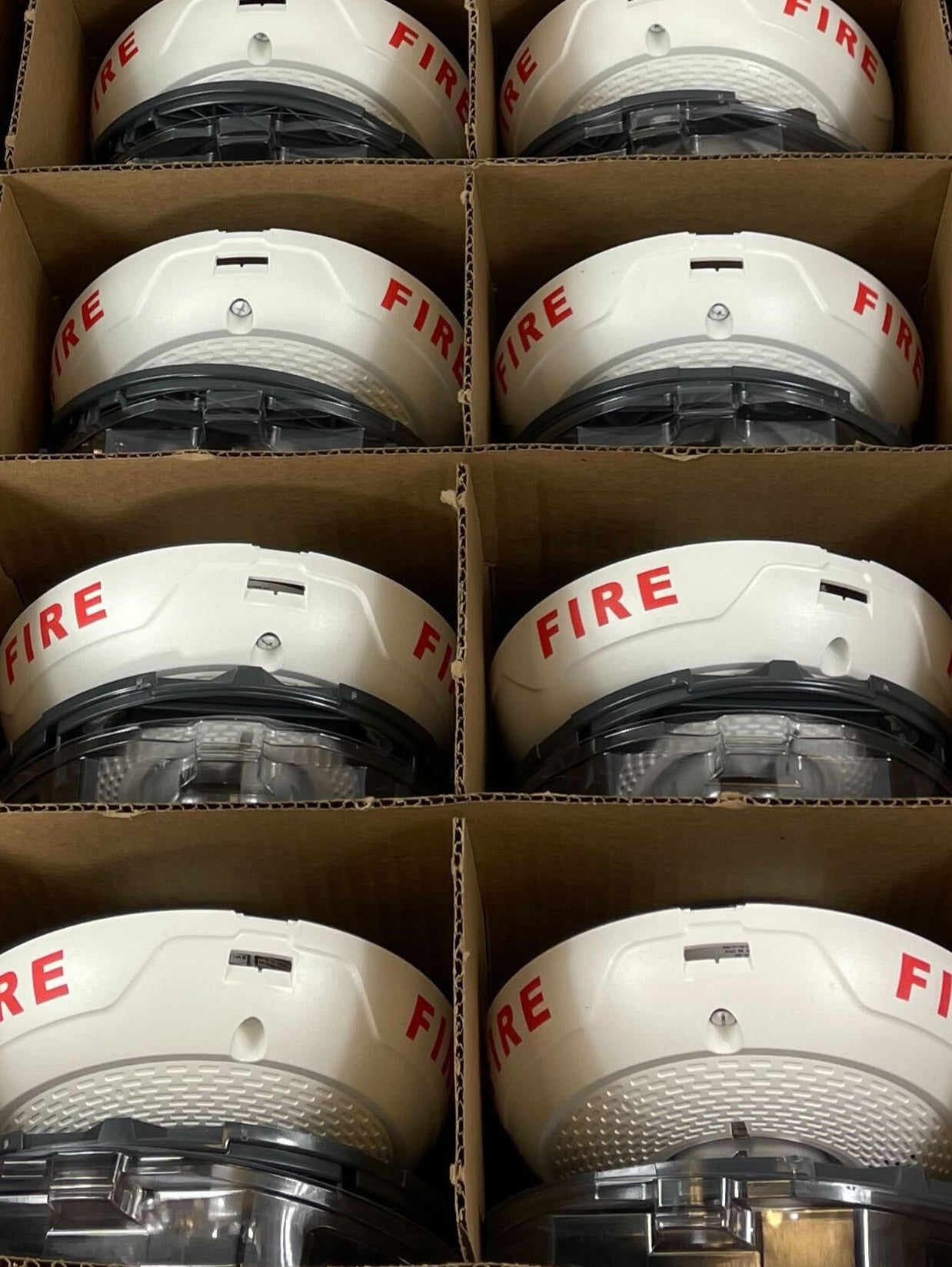

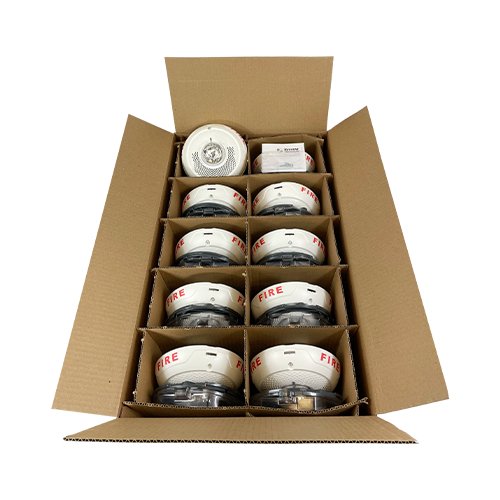

System Sensor SPSCWL-BP10 is a bulk pack of ten SPSCWL L-Series indoor ceiling speaker strobes, white, marked FIRE. Each unit combines a dual-voltage evacuation speaker with a xenon strobe and plugs onto a universal mounting plate, so the circuit can be pre-wired and checked for continuity before the appliances go up.
Specifications
| Contents |
10 x SPSCWL ceiling speaker strobe, white, FIRE |
| Speaker voltage |
25 or 70.7 Vrms, selected by rotary switch |
| Power taps |
1/4, 1/2, 1 and 2 W |
| Sound output (ceiling speaker strobe) |
77 / 80 / 83 / 86 dBA at 10 ft (UL reverberant) |
| Frequency range |
400 to 4,000 Hz |
| Candela settings |
15, 30, 75, 95, 115, 150, 177 |
| Strobe voltage |
8 to 17.5 V (12 V nominal, 15 and 30 cd only) or 16 to 33 V (24 V nominal) |
| Flash rate |
1 flash per second |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Dimensions |
6.8 in. diameter x 2.8 in. deep |
Installation notes
- Mounts to a 4 x 4 x 2-1/8 in. back box; flush mounting needs no extension ring.
- Ceiling surface mounting uses the SBBCWL white surface back box; TRC-2W is the trim ring.
- Synchronizes with the MDL3 Sync•Circuit module or a panel with built-in System Sensor sync.
- 520 Hz square wave tone capable with a compatible FACP.
Related models
- SPSCWL: the single-unit version of this speaker strobe.
- SPSCRL-BP10: red ceiling speaker strobe bulk pack.
- SPSCWLED-BP10: L-Series with LED white ceiling speaker strobe bulk pack.
- SPCWL-BP10: white ceiling speaker without strobe, bulk pack.
Documents
FAQ
How many speaker strobes are in the SPSCWL-BP10?
Ten SPSCWL white ceiling speaker strobes marked FIRE.
What speaker voltage and power taps does it support?
Each speaker runs on 25 or 70.7 Vrms with 1/4, 1/2, 1 or 2 W taps, all set by rotary switch.
What back box does it mount to?
A 4 x 4 x 2-1/8 in. back box, with no extension ring needed for flush mounting. The SBBCWL surface back box is available for surface mounting.
Can the strobes be synchronized?
Yes. They work with the System Sensor sync protocol through an MDL3 module or a compatible panel or power supply.
