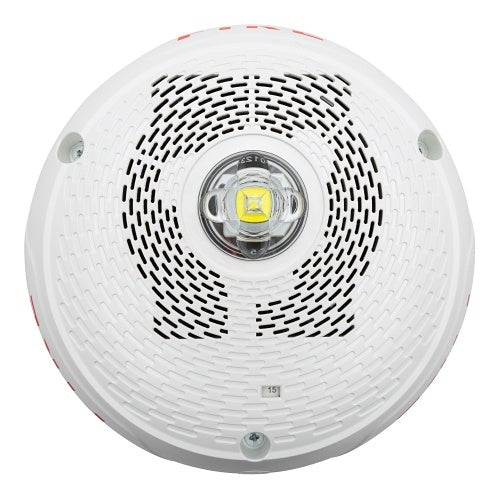

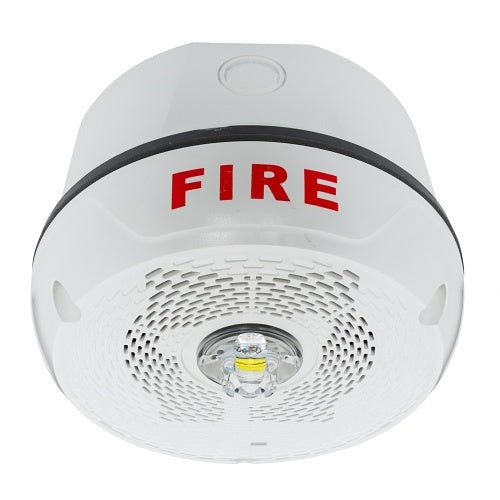

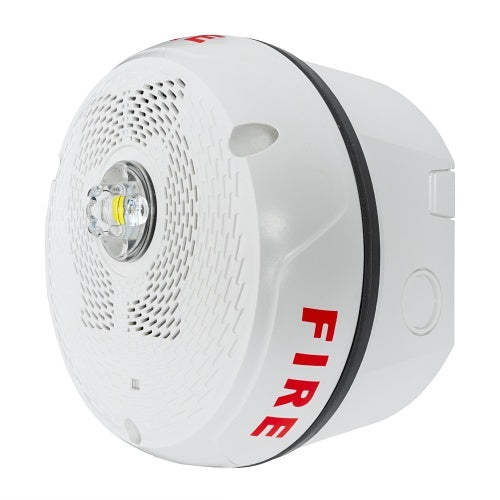

System Sensor SPSCWKLED Outdoor LED Speaker Strobe Ceiling, Fire, White
SPSCWKLED: OUTDOOR SPEAKER STROBE LED WHITE CEILING
System Sensor L-Series Outdoor Speakers and L-Series with LED Outdoor Speaker Strobes offer the most versatile and easy-to-use line of weatherproof speakers and speaker strobes that can meet virtually any application requirement, including outdoor,indoor, wet, dry, and washdown environment applications in temperatures from −40°F to 151°F. The speakers provide a broad frequency response range, low harmonic distortion offering a highfi delity sound output while offering a high-volume sound output for use in high ambient noise applications.
Key Features
- Weatherproof per NEMA 4X, IP56 as a standalone device
- Rated from -40°F to 151°F LED technology provides lower current draw
- Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
- Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
- Rotary switches for candela, speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1, and 2 watts)
- Mounting plates with wirenuts are provided to make the connection between the field wiring and the mounting plates
- Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL Sync Module
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 VDC
Documents & Downloads
FAQ
Which candela settings does the ceiling model have?
Ceiling units are field selectable for 15, 30, 75, 95, 115, 150 and 177 cd, using rotary switches.
Which speaker taps are available?
Speaker voltage is set to 25 or 70.7 Vrms, with power settings of 1/4, 1/2, 1 and 2 watts, all by rotary switch. The frequency range is 400 to 4000 Hz.
Can I reuse a SpectrAlert Advance back box?
No. When replacing SpectrAlert Advance products, the back box must be updated to the L-Series with LED back box. The outdoor devices ship with plastic back boxes that accept in-and-out wiring.
What temperature range is it rated for?
It is rated from -40°F to 151°F and is weatherproof per NEMA 4X and IP56 as a standalone device.
