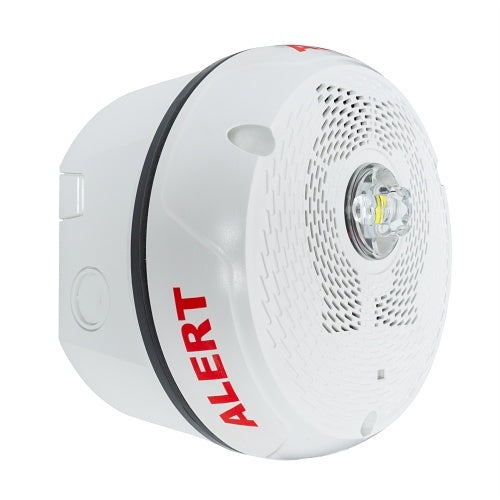

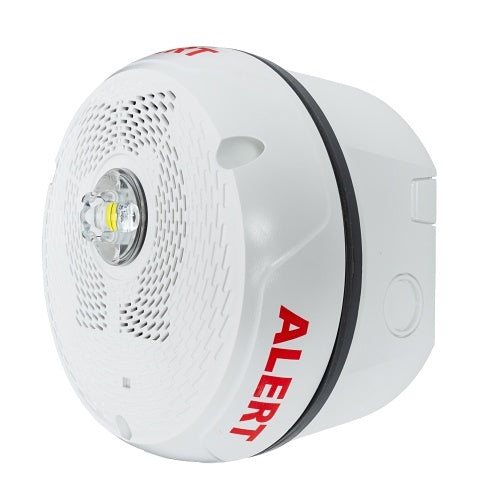

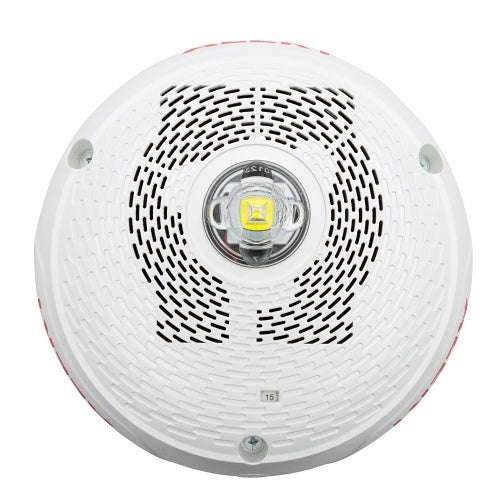

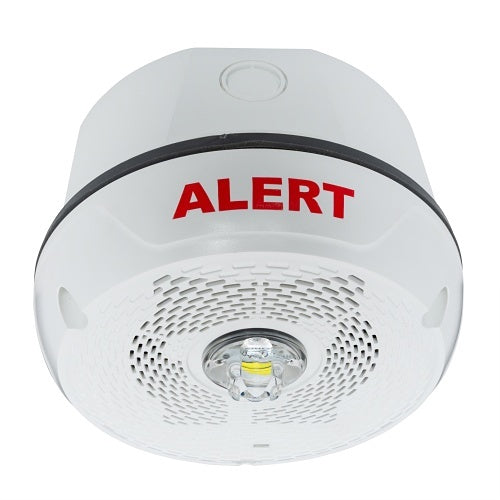

System Sensor SPSCWKLED-CLR-ALRT is an outdoor LED speaker strobe from the L-Series platform, made for ceiling mounting. It combines a speaker with an LED strobe and is set up in the field with rotary switches.
The device plugs into a universal mounting plate that has an onboard shorting spring, so wiring continuity can be checked before the device is installed.
Features
- LED technology for lower current draw
- Digital Voltage Meter (DVM) diagnostic test points
- Field-selectable candela settings on ceiling units
- Rotary switches for candela, speaker voltage and power setting
- Plug-in mounting plate with shorting springs for continuity checks
- Tamper-resistant construction
- Common aesthetics across the L-Series platform
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices
Specifications
| Product Type |
LED speaker strobe |
| Mounting |
Ceiling |
| Environment |
Outdoor |
| Color |
White |
| Candela Settings (ceiling units) |
15, 30, 75, 95, 115, 150, 177 |
| Speaker Voltage |
25 and 70.7 Vrms |
| Speaker Power Settings |
1/4, 1/2, 1, 2 W |
