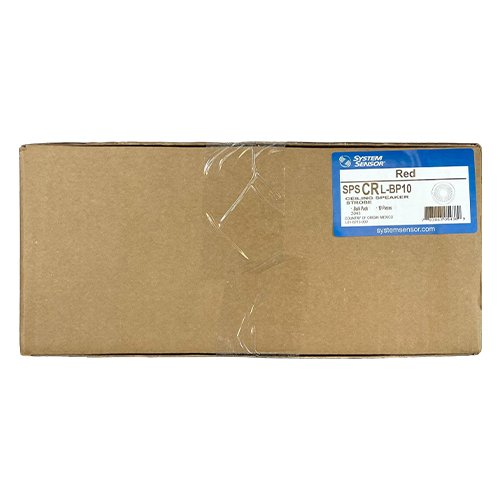

System Sensor SPSCRL-BP10 is a bulk pack of ten SPSCRL L-Series indoor selectable-output speaker strobes. Each unit is a ceiling-mount appliance with a red housing and FIRE marking for voice evacuation systems.
The speaker is set for 25 or 70.7 Vrms and for a power level, and the strobe has seven candela settings, all chosen with rotary switches.
Features

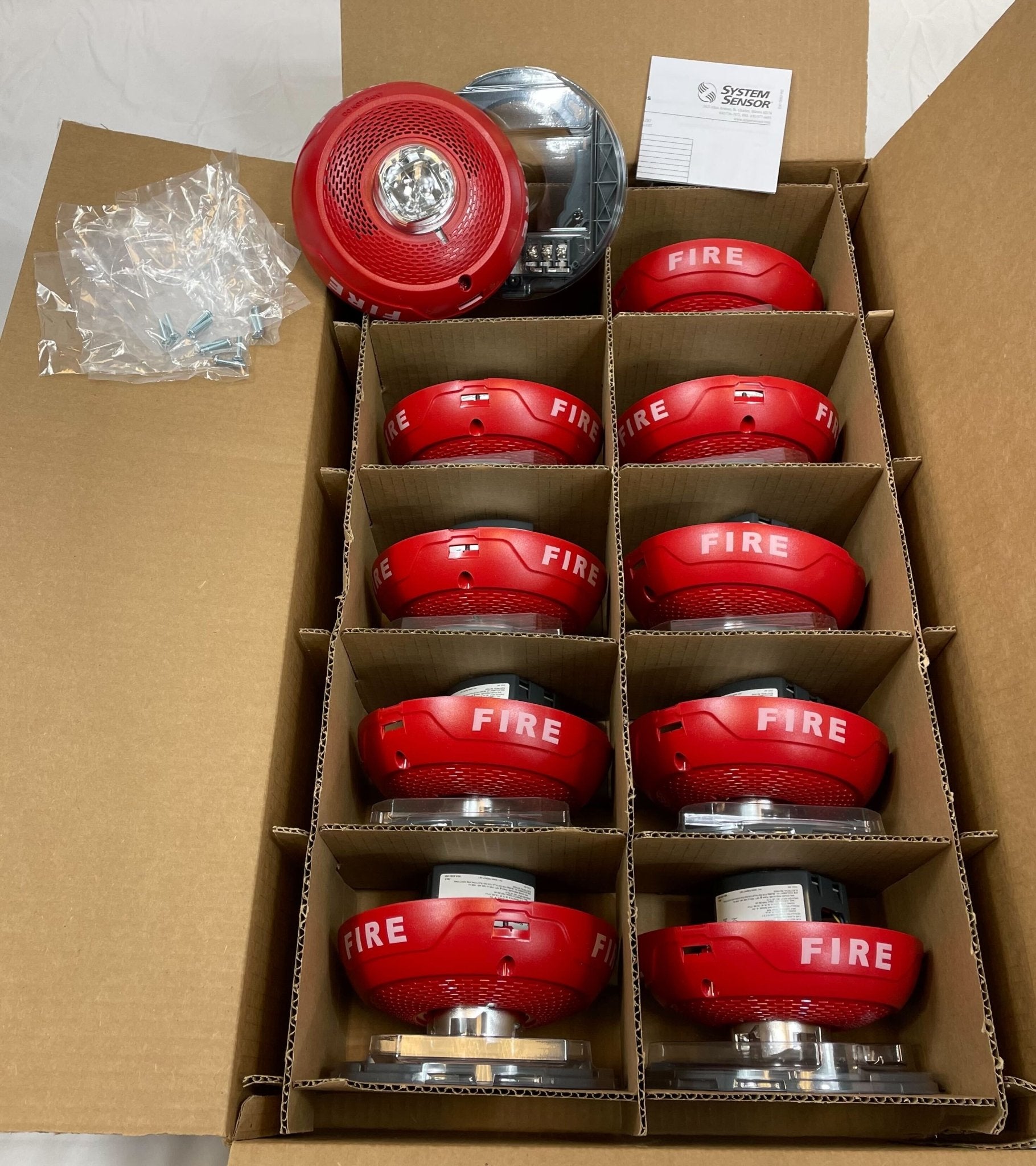

- Pack of 10 ceiling speaker strobes, red, marked FIRE
- Strobe selectable at 15, 30, 75, 95, 115, 150 or 177 candela on ceiling units
- Speaker taps for 25 or 70.7 Vrms at 1/4, 1/2, 1 or 2 W
- Frequency range 400 to 4000 Hz
- Plug-in mounting plate with shorting springs for continuity checks
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices at 16 to 33 VDC
- Synchronizes through System Sensor sync power supplies or the MDL sync module
Specifications
| Pack size |
10 units |
| Mounting |
Ceiling, indoor |
| Strobe voltage |
Regulated 24 VDC, 16 to 33 VDC |
| Flash rate |
1 flash per second |
| Dimensions (with lens) |
6.8 in. diameter x 2.33 in. D (172.7 x 59.2 mm) |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Humidity |
10 to 93%, non-condensing |
| Terminals |
12 to 18 AWG |
