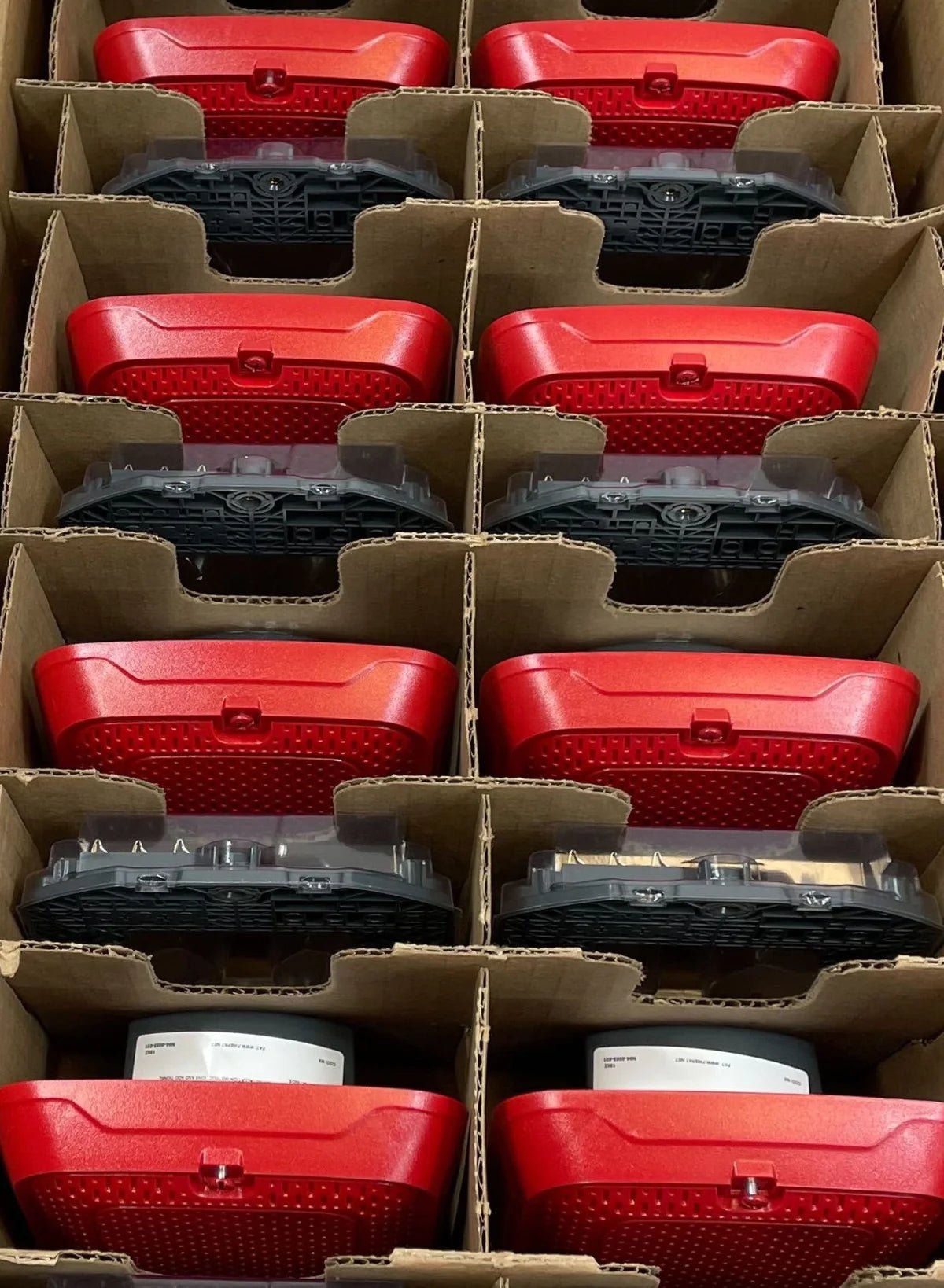

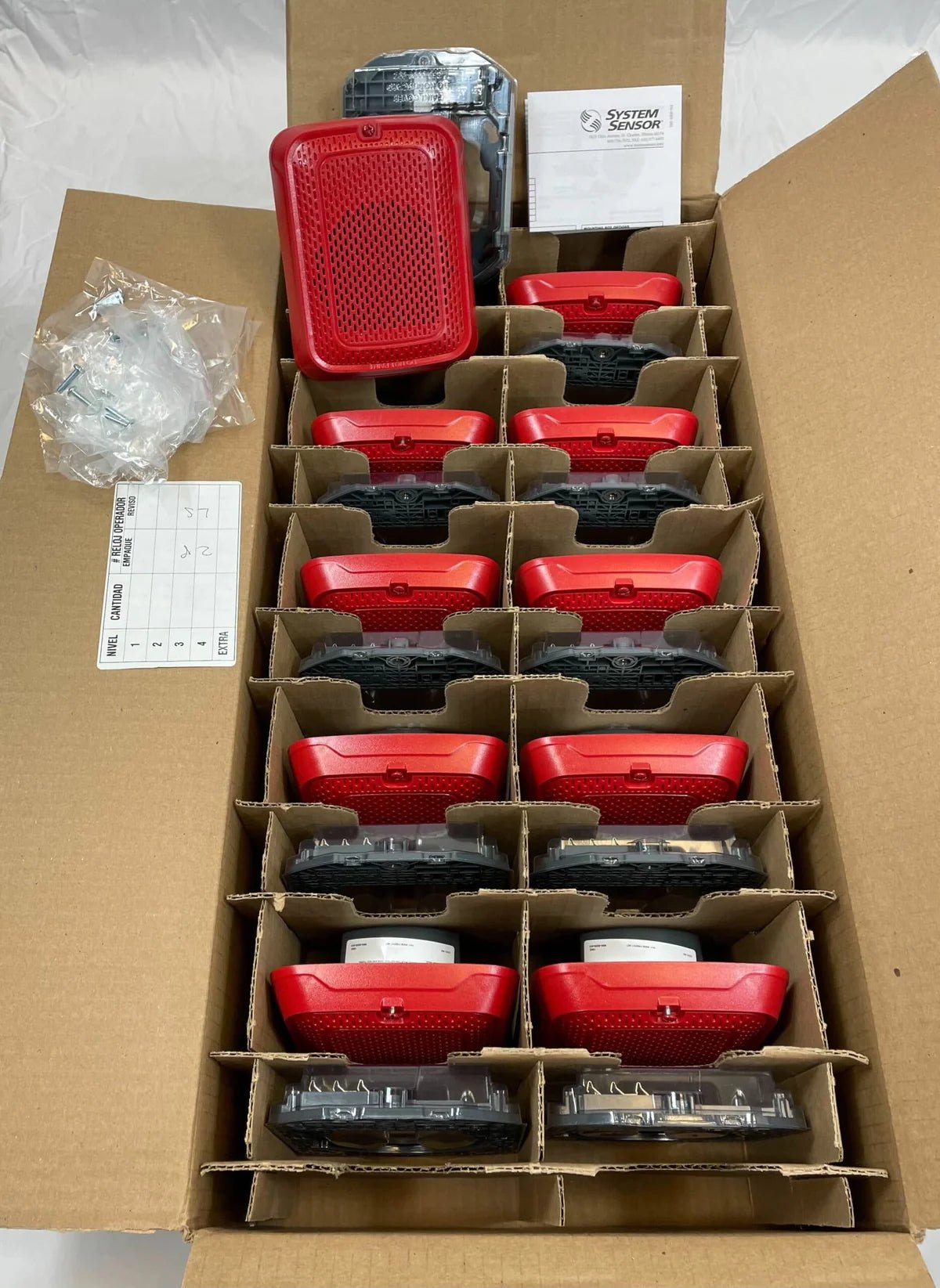

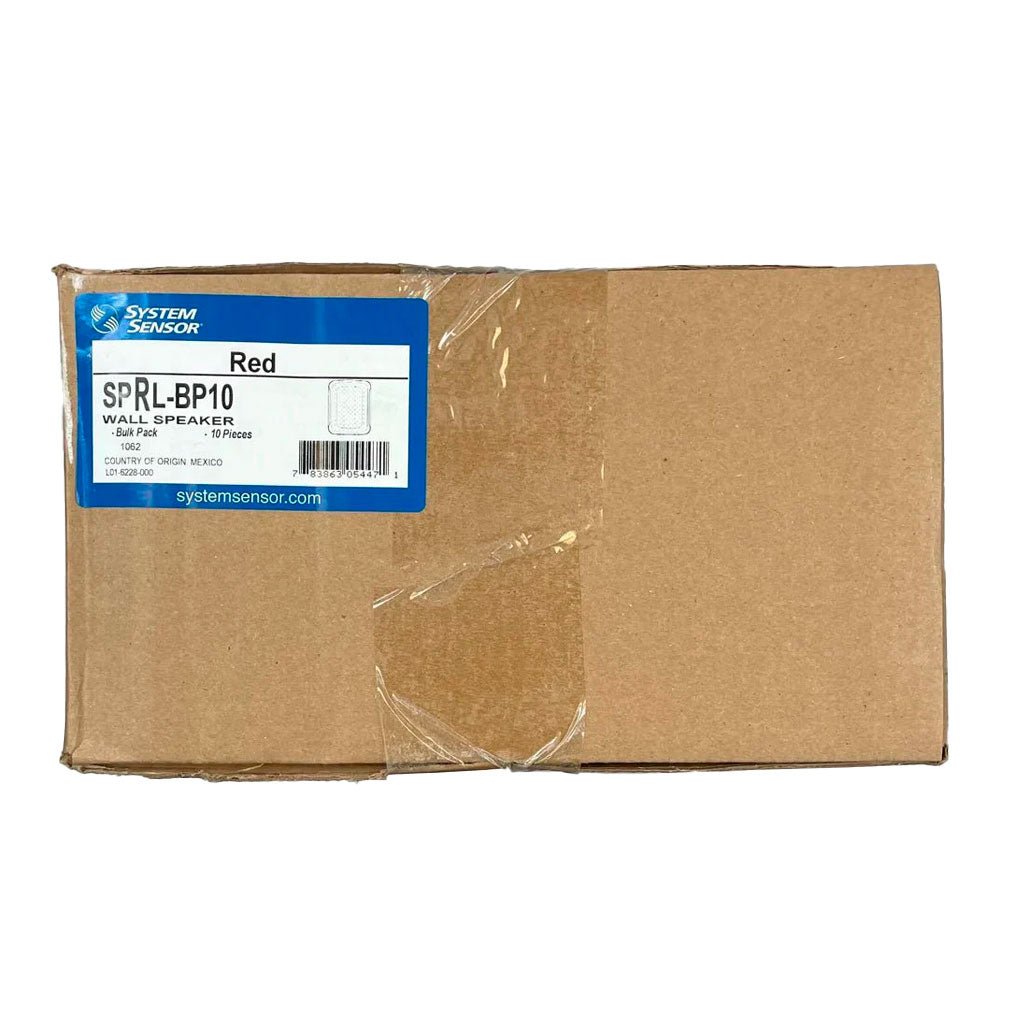

System Sensor SPRL-BP10 is a bulk pack of ten SPRL red L-Series wall speakers. The dual-voltage evacuation speaker has a plug-in design with a protective cover that reduces ground faults, and a universal mounting plate with a shorting spring that checks wiring continuity before installation.
Specifications
| Pack size |
10 SPRL speakers |
| Housing |
Red, wall mount |
| Speaker voltage |
25 Vrms or 70.7 Vrms, rotary switch selectable |
| Power taps |
1/4, 1/2, 1 and 2 W |
| Output at 10 ft (anechoic) |
79, 82, 85 and 88 dBA at 1/4, 1/2, 1 and 2 W |
| Back box |
4 x 4 x 2-1/8 in. |
| Certification |
UL certified (S4048) |
Features
- Rotary switch sets the voltage and power taps
- Low total harmonic distortion for clear speech
- Tamper-resistant construction
- Electrically compatible with SpectrAlert and SpectrAlert Advance products
- No extension ring needed for flush mounting
Installers use the ten-unit pack on voice evacuation jobs with many speaker locations.
