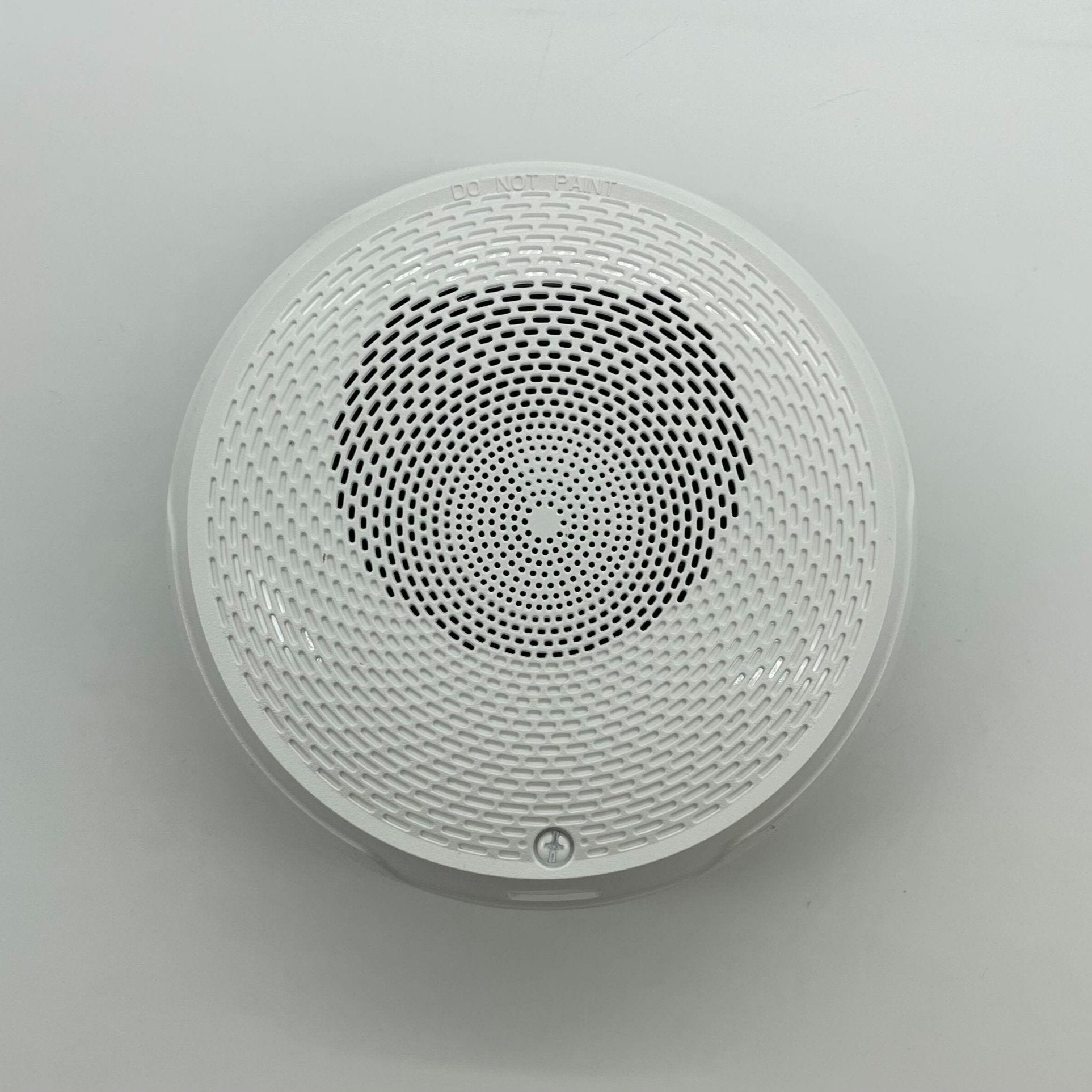

System Sensor SPCWL-BP10 is a bulk pack of ten SPCWL L-Series indoor ceiling-mount speakers, white, with selectable output.

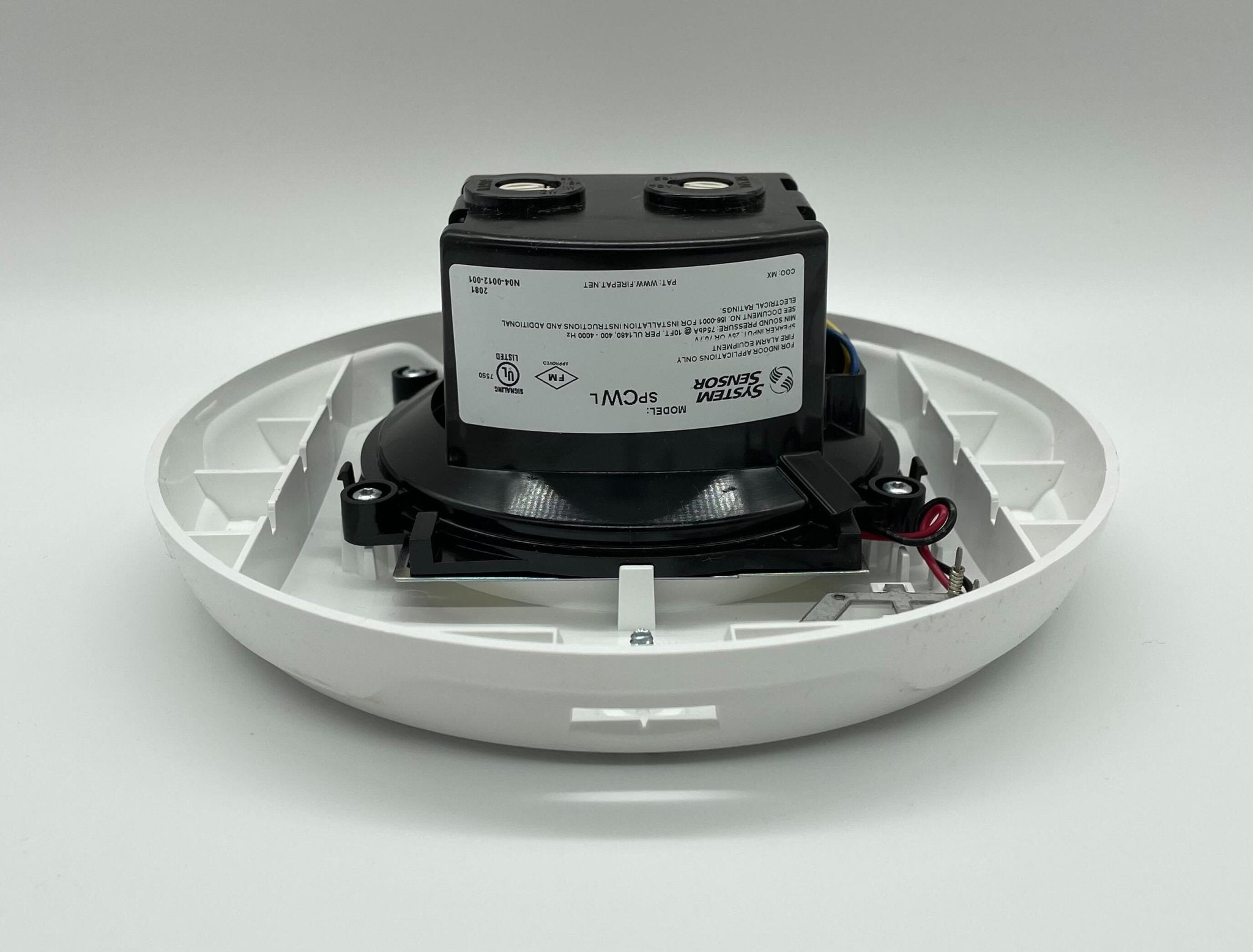

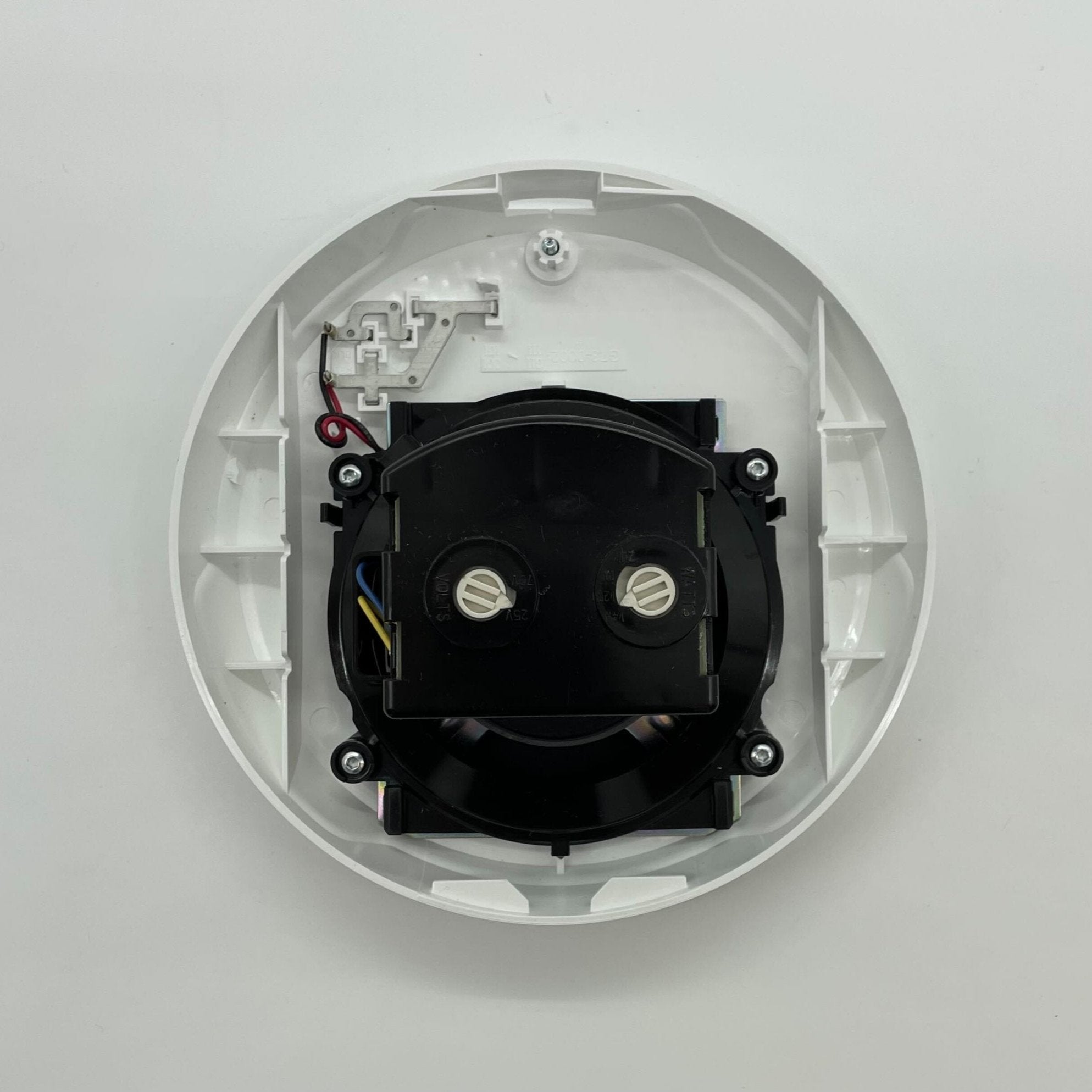

The L-Series speaker uses a plug-in design on a universal mounting plate, so the installer can pre-wire the plate and check wiring continuity with its on-board shorting spring before plugging the speaker in. A protective plastic cover shields the speaker components and helps prevent nicked wires and ground faults. Voltage and power are set with a rotary switch, and the dual-voltage transformer supports both high-fidelity and high-volume output.
Specifications
| Model |
SPCWL-BP10 (10 x SPCWL) |
| Mounting |
Ceiling, indoor |
| Color |
White |
| Speaker voltage |
25 or 70.7 Vrms, rotary switch |
| Power taps |
1/4, 1/2, 1, 2 W |
| Sound output |
79 / 82 / 85 / 88 dBA at 10 ft (UL reverberant) |
| Frequency range |
400 to 4,000 Hz |
| Max supervisory voltage |
50 VDC |
| Dimensions |
6.8 in. diameter x 1.0 in. deep |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity |
10 to 93% non-condensing |
Installation notes

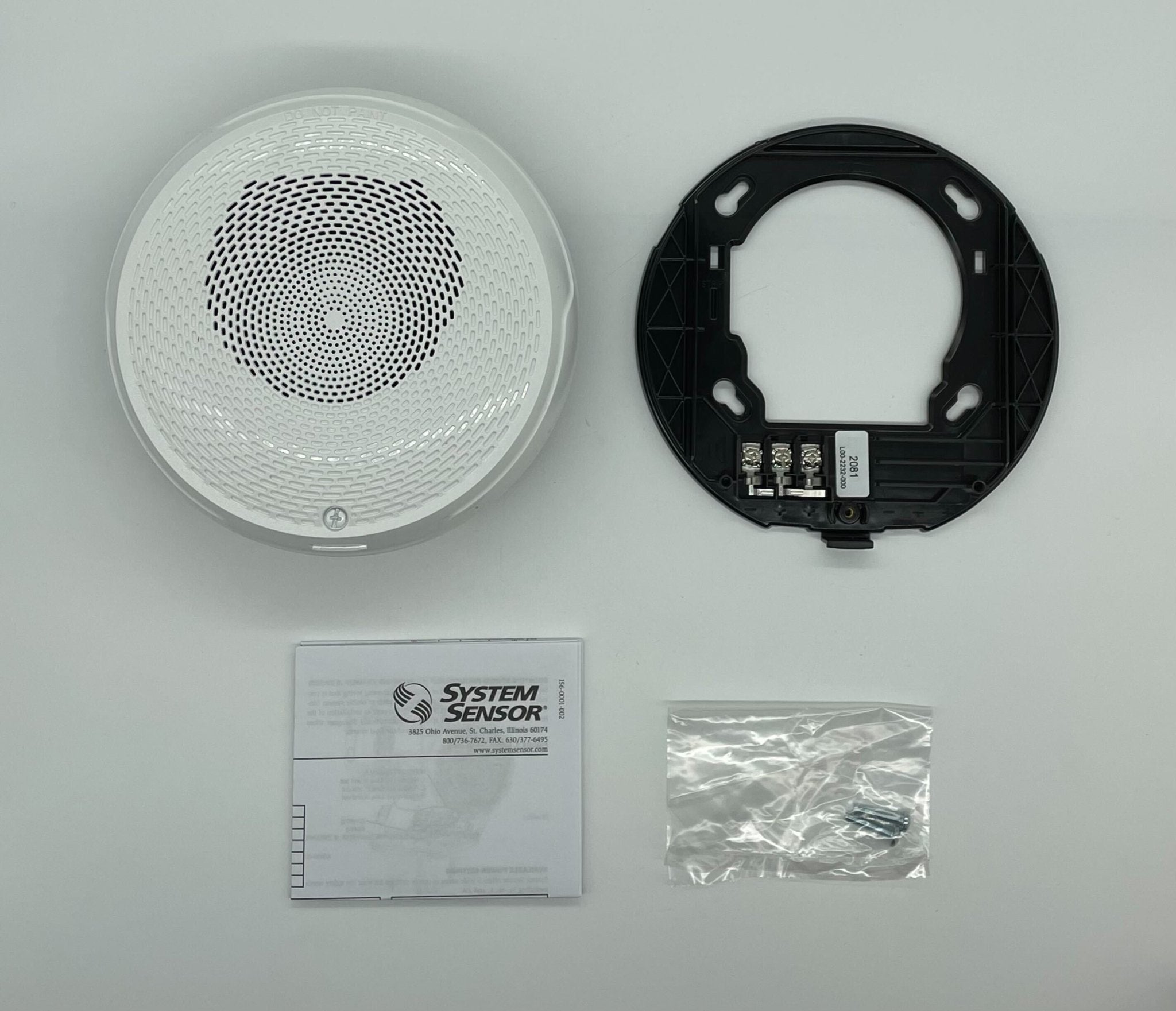

- Attach the universal mounting plate to a 4 x 4 x 2-1/8 in. backbox; flush mounting needs no extension ring
- Wire the speaker circuit to the terminals on the mounting plate, then hinge the speaker into place and secure the captured screw
- Use the SBBCWL white ceiling surface backbox for surface mounting
- Speakers are certified to UL 1480 for fire protective service
Related models
- SPCWL: single white ceiling speaker
- SPCRL: red ceiling speaker
- SPSCWLED: white ceiling speaker strobe with LED
- SPWL: white wall speaker
Documents
FAQ
What is in the SPCWL-BP10?

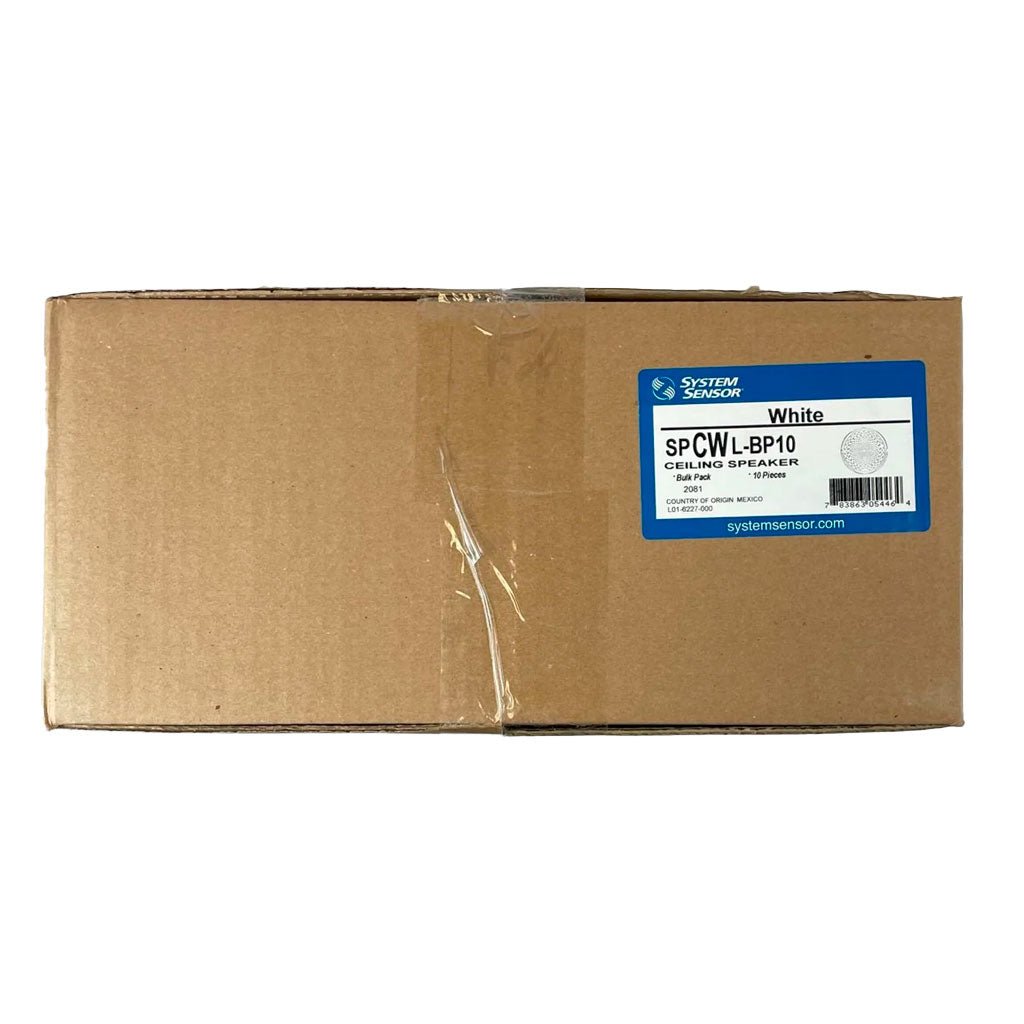

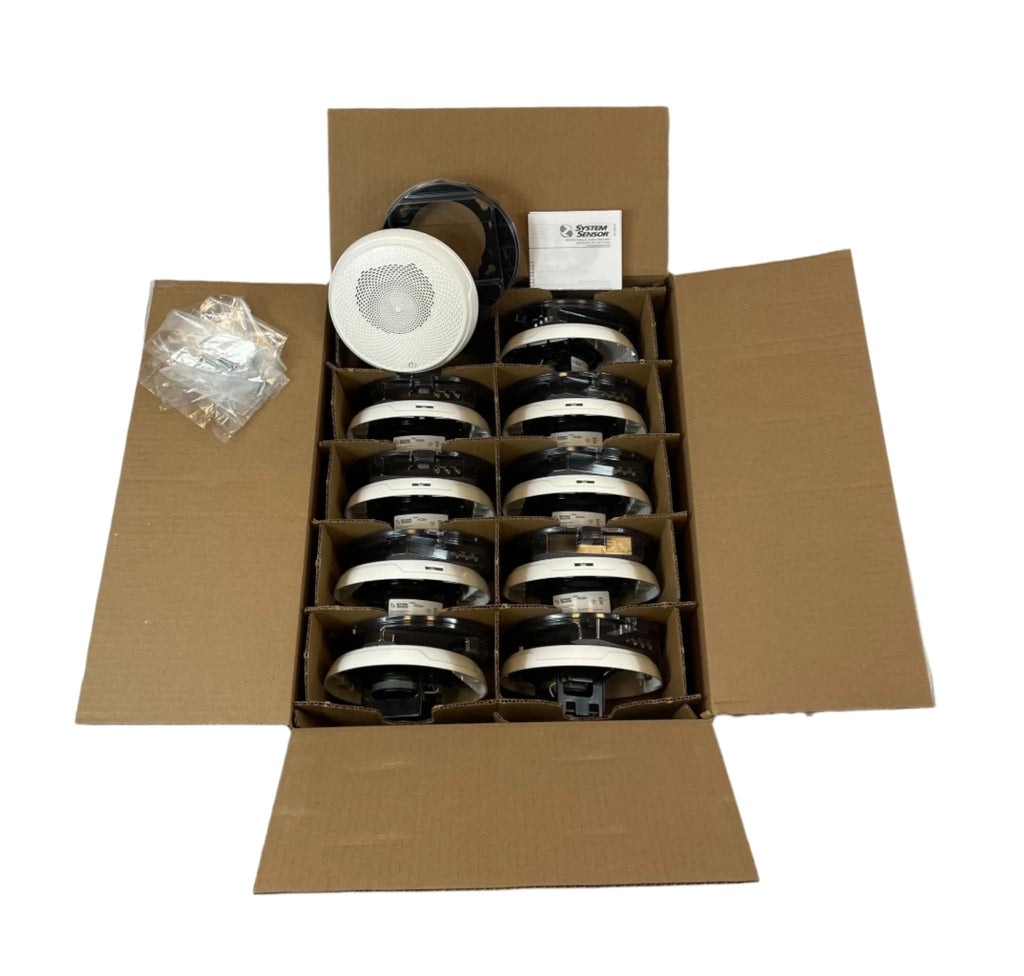

It is a bulk pack of ten SPCWL white ceiling-mount L-Series speakers.
What voltage and power taps can be selected?
A rotary switch selects 25 or 70.7 Vrms and power taps of 1/4, 1/2, 1 or 2 W.
What backbox does it need?
The universal mounting plate attaches to a 4 x 4 x 2-1/8 in. backbox with no extension ring. For surface mounting, use the SBBCWL white ceiling surface backbox.
How loud is it?
Ceiling speaker output is 79, 82, 85 and 88 dBA at 10 ft (UL reverberant) at 1/4, 1/2, 1 and 2 W.
