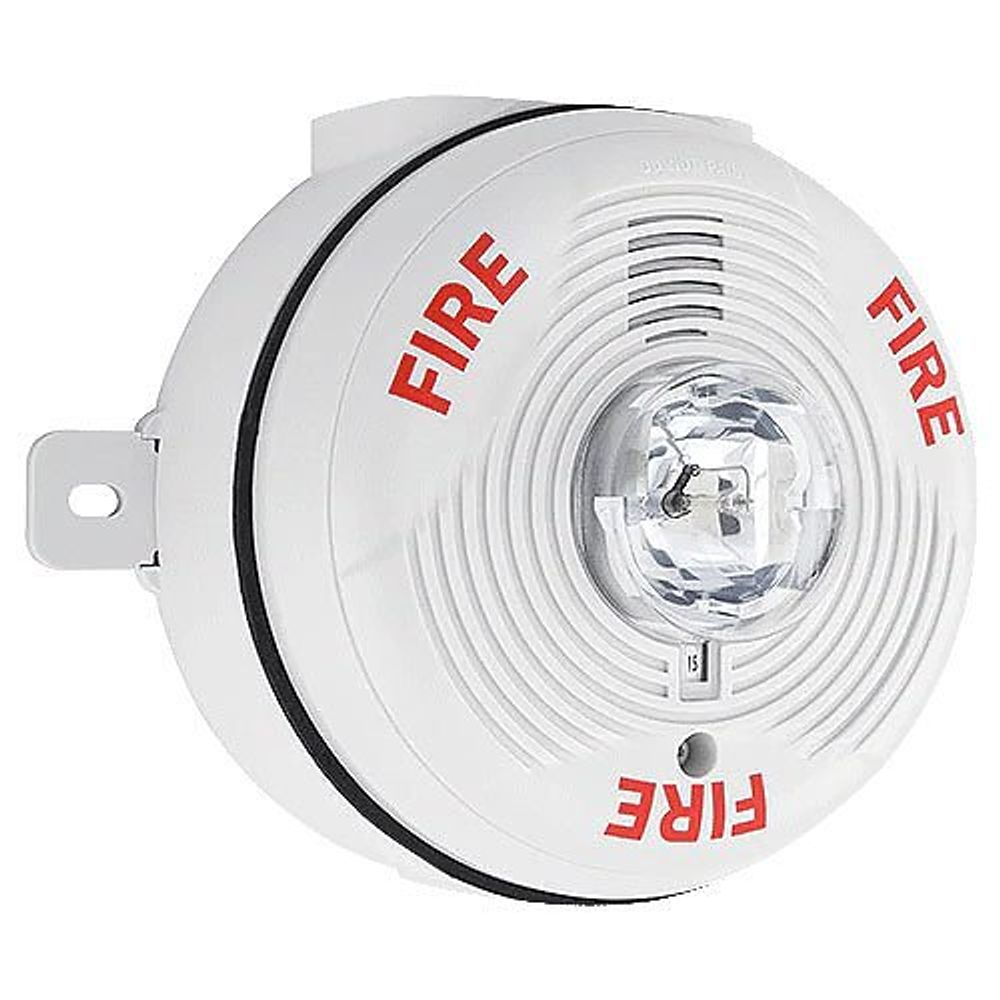

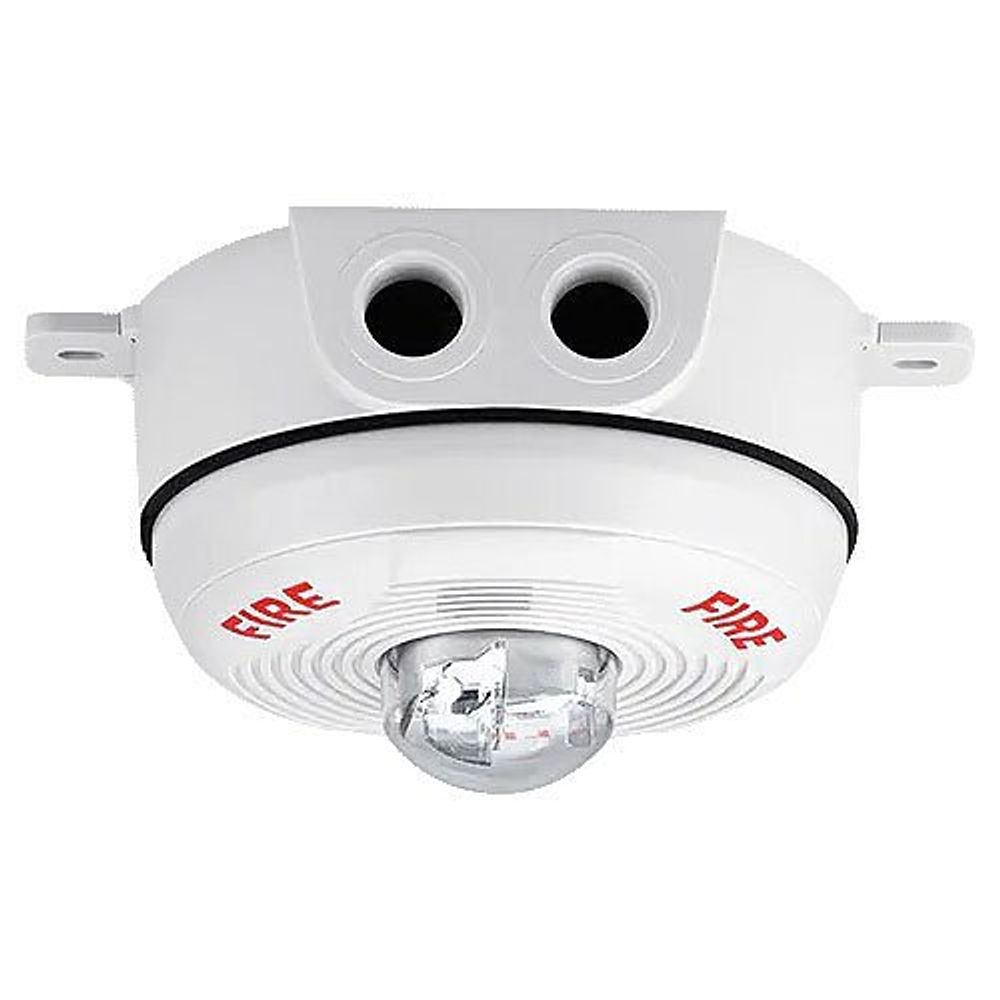

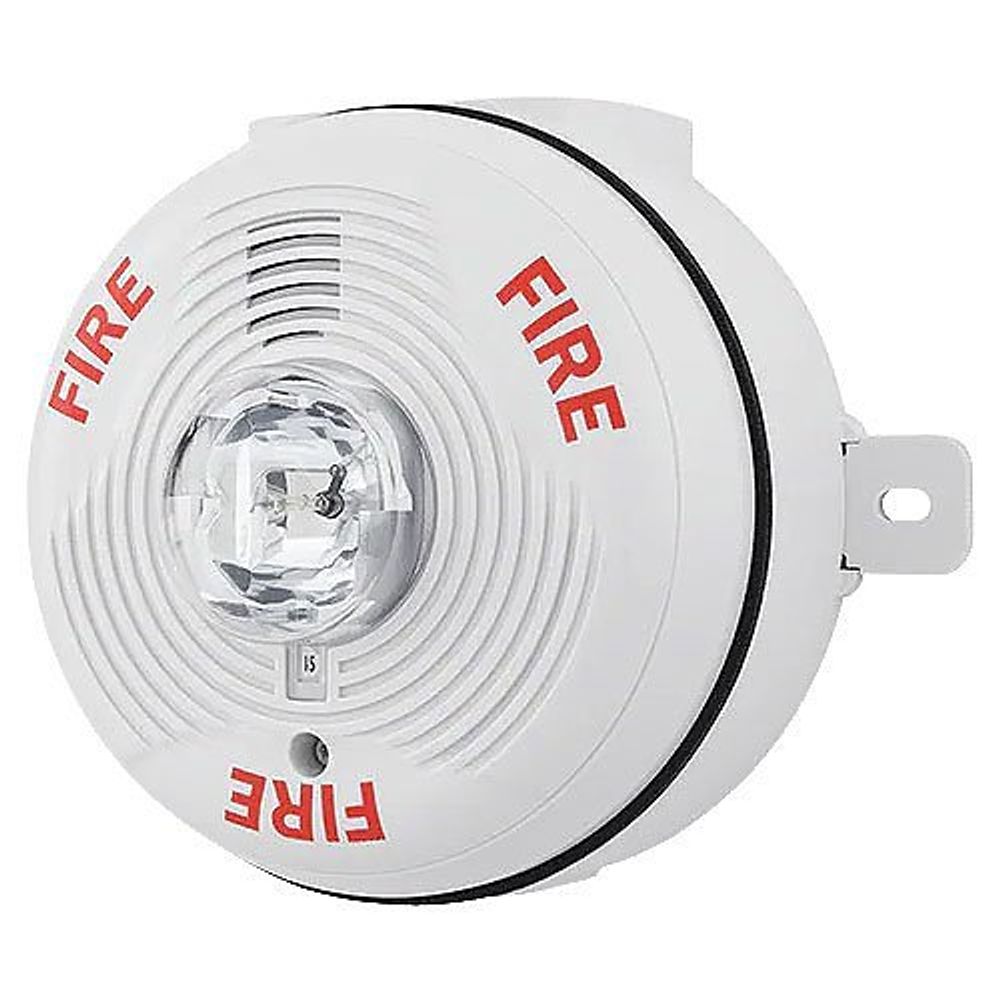

System Sensor SCWK is a white, ceiling-mount SpectrAlert Advance strobe for outdoor locations, with a clear lens and FIRE marking. Outdoor devices in this line ship with a weatherproof plastic back box that has room for in-and-out wiring when devices are daisy-chained.
Settings are made in the field, and the plug-in design with a single captive screw speeds installation.
Features
- Ceiling mounting for outdoor locations, FIRE marking
- Selectable strobe settings of 15, 15/75, 30, 75, 95, 110 and 115 cd
- Operating voltage range of 8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal)
- Operating temperature range of -40°F to 151°F (-40°C to 66°C)
- Wiring gauge of 12 to 18 AWG
- Universal mounting plate with an onboard shorting spring that proves wiring continuity before the device is installed
- Compatible with System Sensor synchronization protocol and legacy SpectrAlert products
Specifications
| Product Type |
Strobe |
| Alarm Type |
Visual |
| Color |
White |
| Lens |
Clear |
| Marking |
FIRE |
| Mounting |
Ceiling |
| Application |
Outdoor |
| Diameter |
6.8" |
| Depth |
2.5" |
