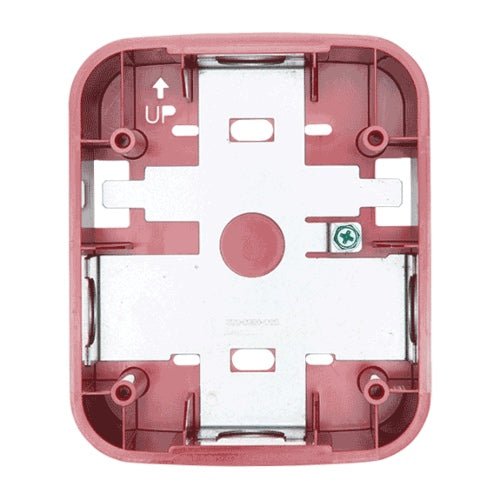

The System Sensor SBBSPRL is a red, wall-mount surface back box for System Sensor L-Series speakers and speaker strobes. Surface back boxes are the mounting solution where there is a hard surface to mount to and no recessed electrical box.
Specifications
| Color |
Red |
| Mounting |
Wall, surface |
| For use with |
L-Series wall speakers and speaker strobes |
| Wall speaker with box |
6.62" L x 5.12" W x 3.2" D |
| Wall speaker strobe with box |
6.62" L x 5.12" W x 4.55" D |
Installation notes
- Intended for speakers and speaker strobes only
- Horns, strobes, horn strobes and chimes use the SBBRL (red) or SBBWL (white) wall boxes

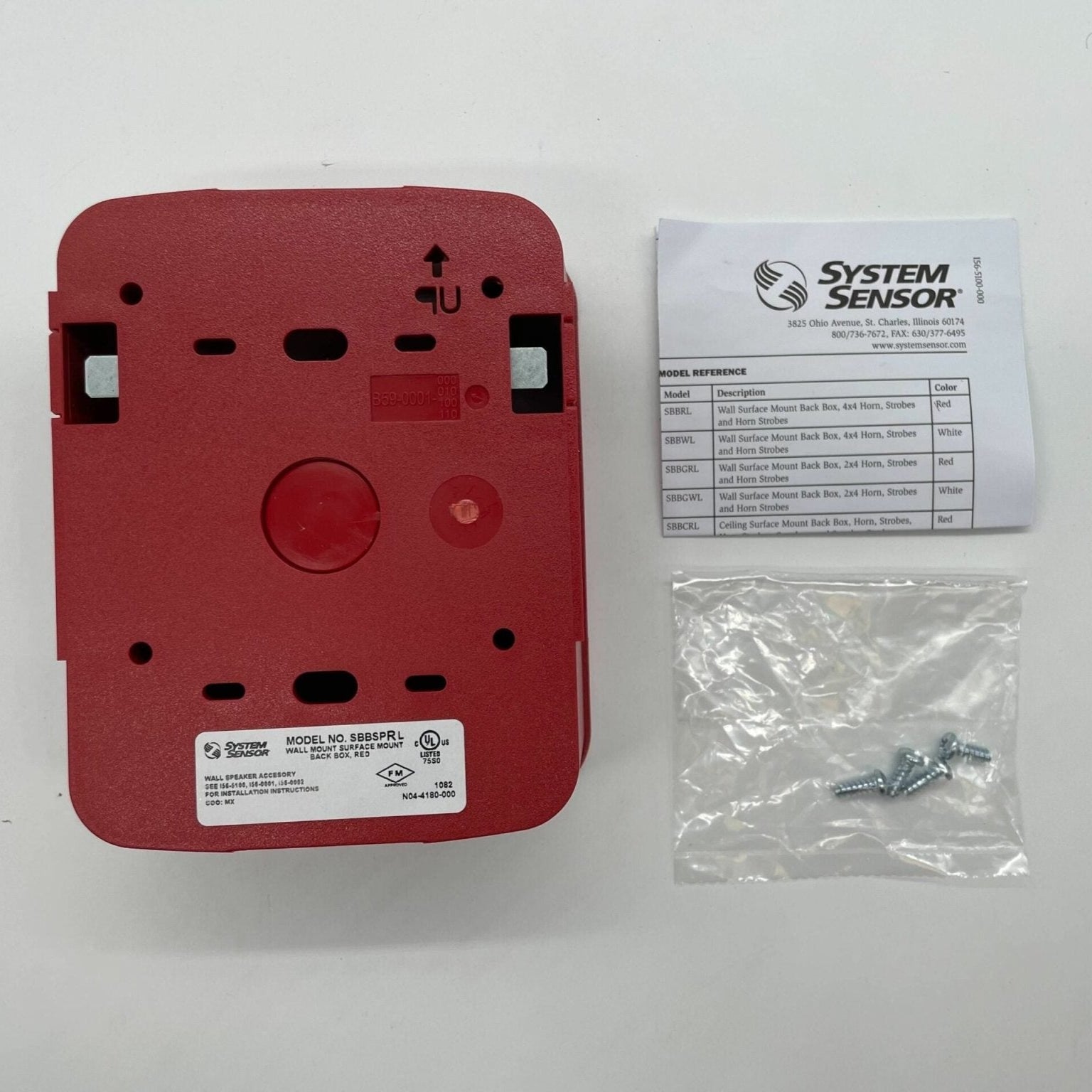

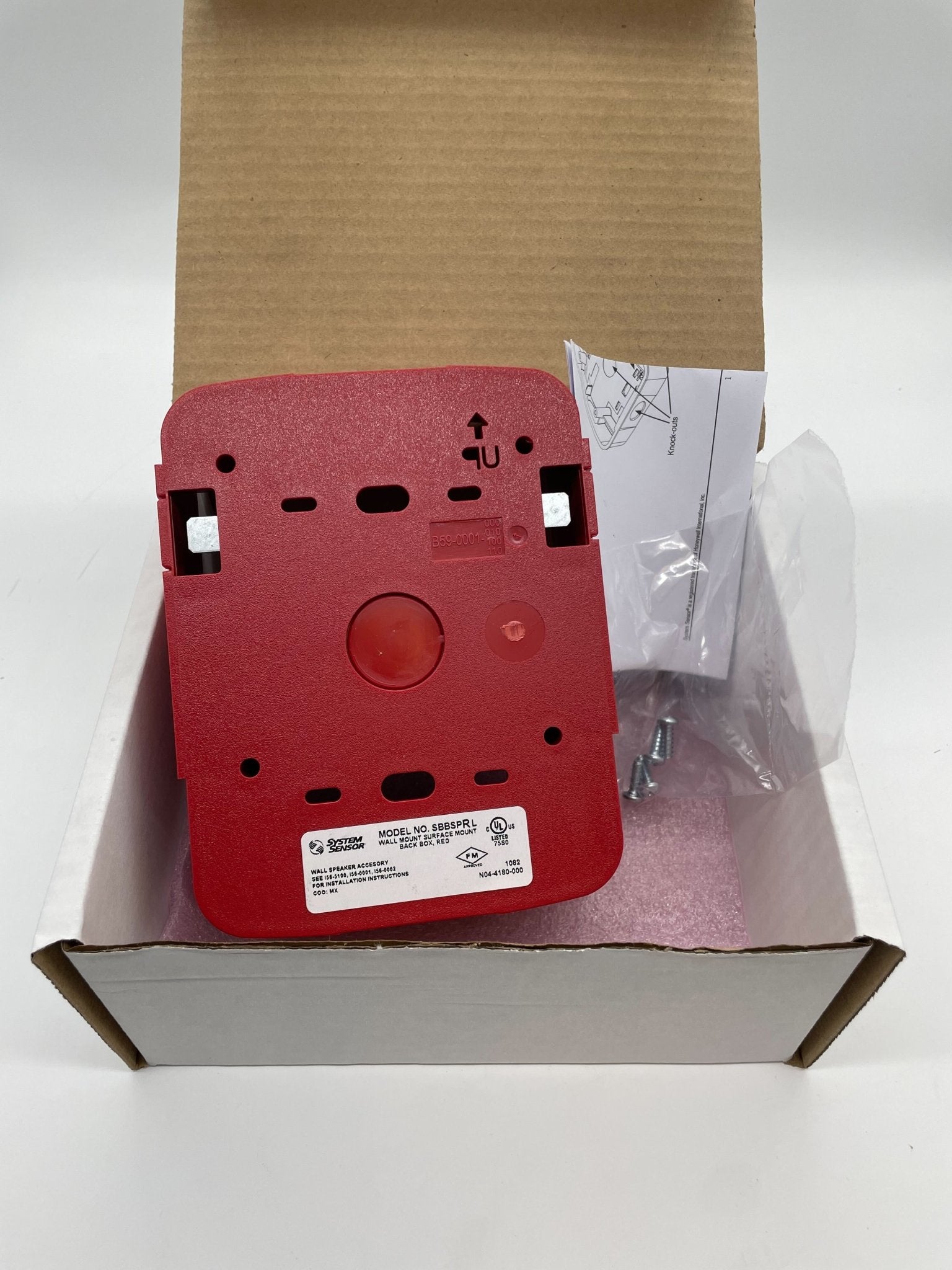

- Mounting hardware supplied in the box
Related models
SBBSPWL is the white version. SBBCRL and SBBCWL are the ceiling surface back boxes for ceiling speakers and speaker strobes.
Documents
FAQ
Which devices does the SBBSPRL fit?
System Sensor L-Series wall-mount speakers and speaker strobes.
Can I use it with a horn strobe?
No. Wall horns, strobes, horn strobes and chimes use the SBBRL or SBBWL back box.
How deep is a speaker strobe on this box?
An L-Series LED wall speaker strobe with the SBBSPRL measures 6.62" L x 5.12" W x 4.55" D.
Is there a white version?
Yes, the SBBSPWL.
