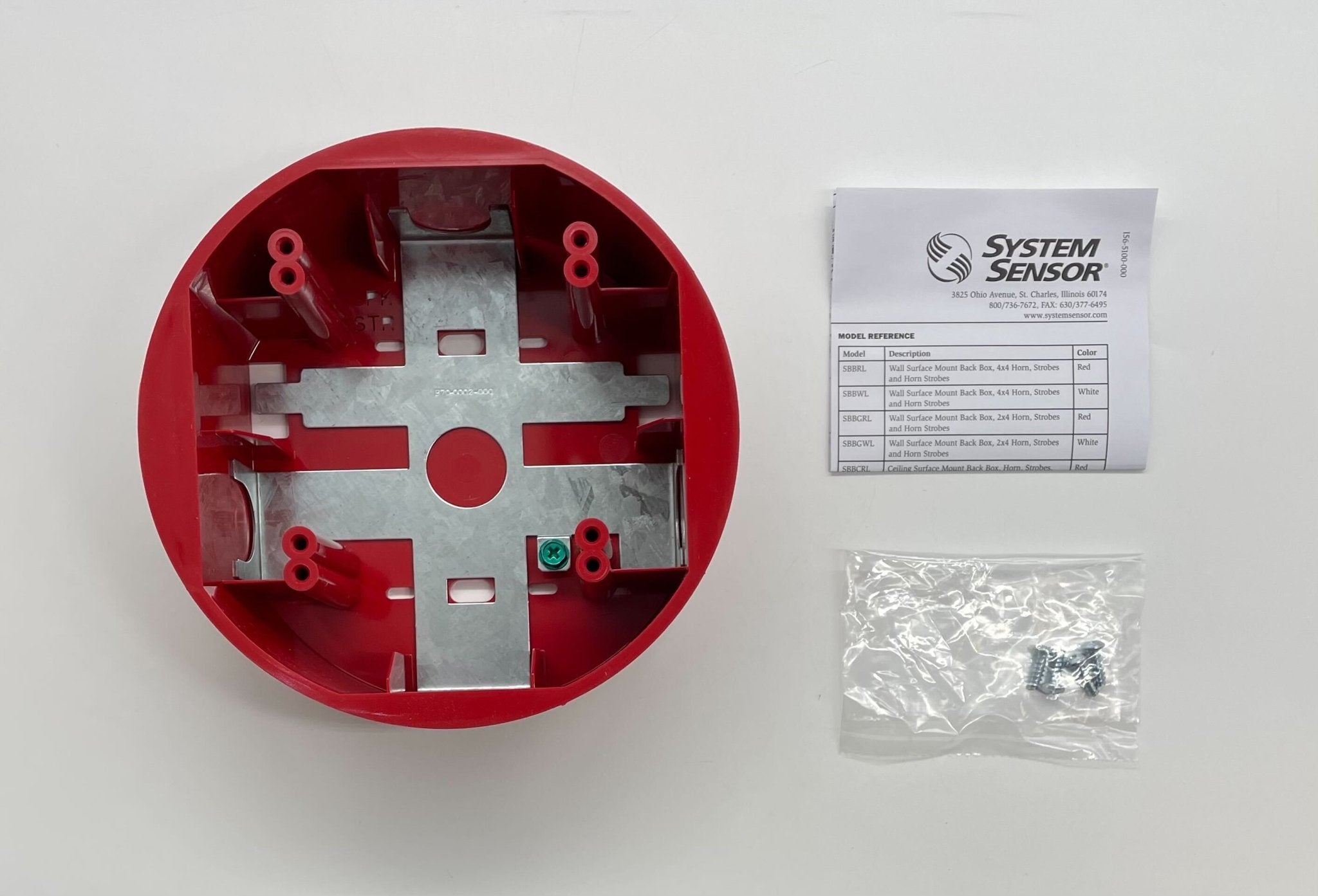

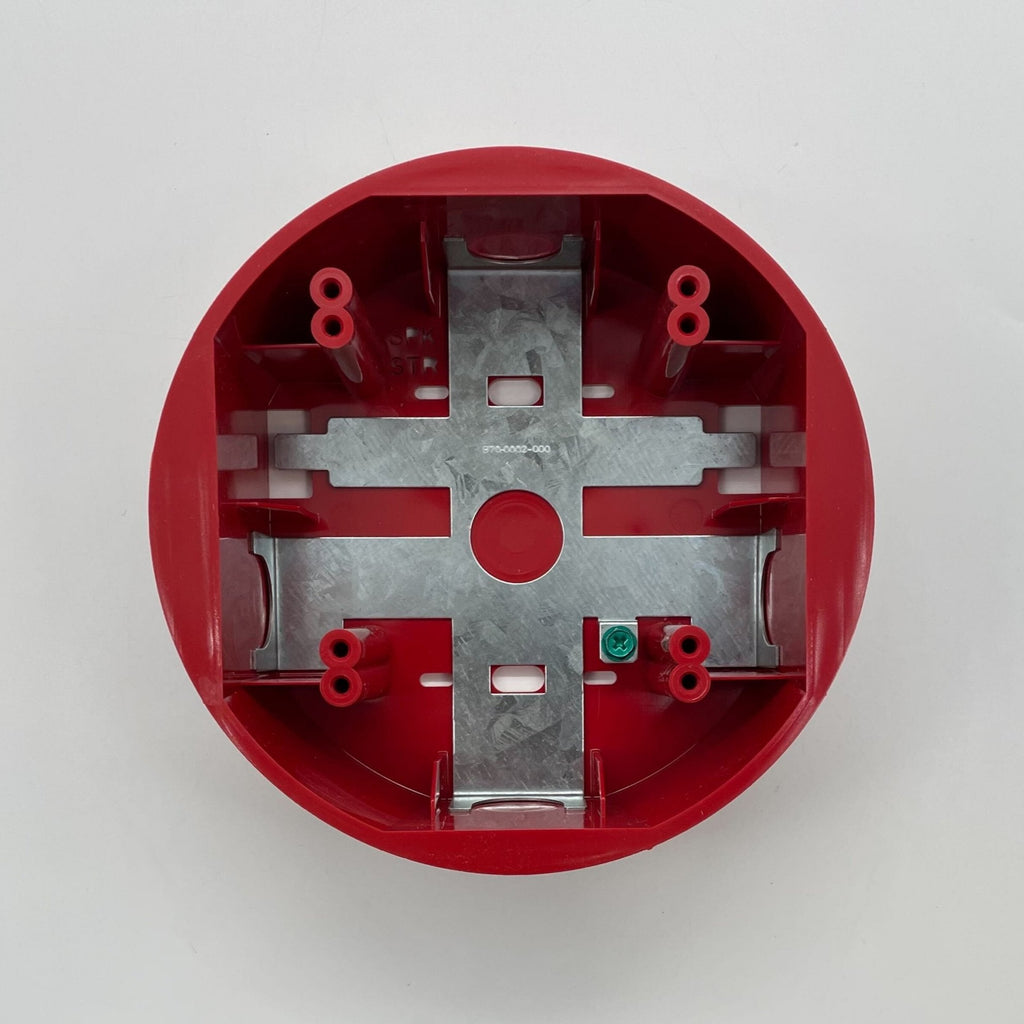

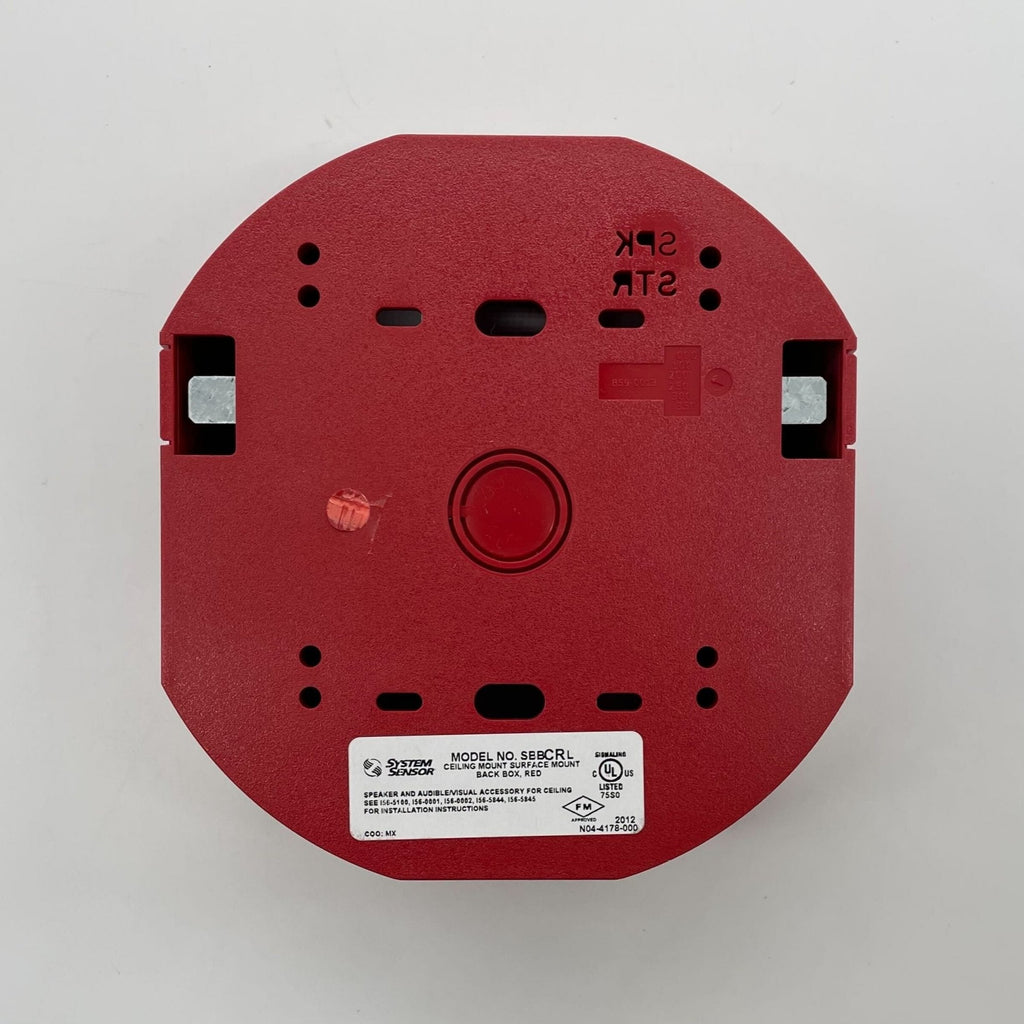

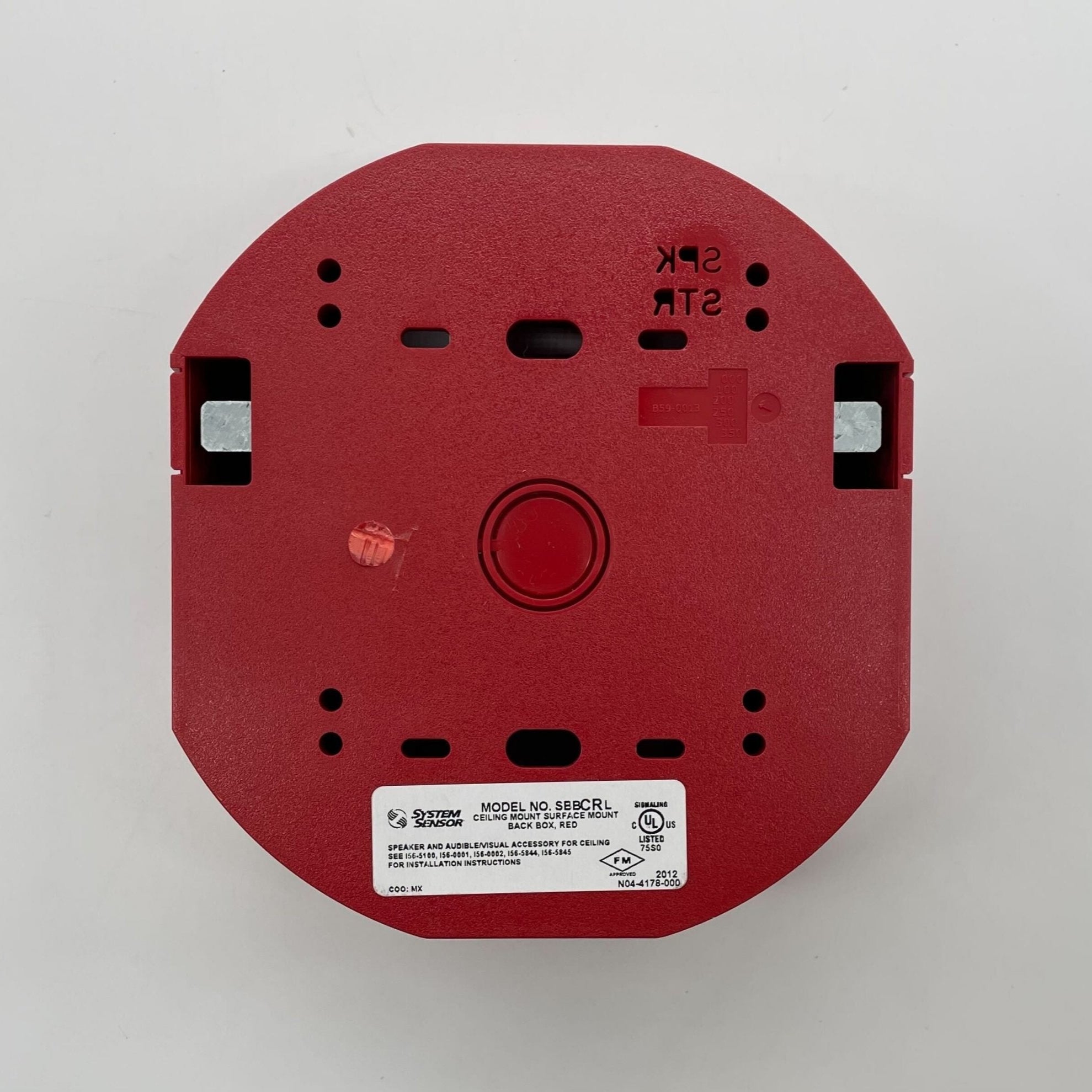

System Sensor SBBCRL — red L-Series ceiling surface mount back box for horns, strobes, horn strobes, speakers and speaker strobes.
Concrete and brick leave an installer nowhere to recess a box. This one supplies the mounting instead, standing the appliance off the surface and taking the conduit into threaded knockouts. It is the ceiling member of the family, and the only one rated for speakers as well as horns and strobes.
- Dual knockouts, threaded for both 1/2 in. and 3/4 in. conduit adapters
- Flange diameter 6.9 in. (17.5 cm), can diameter 6.3 in. (16 cm), depth 2.5 in. (6.35 cm)
- Supplied with a grounding plate and grounding screw
- An L-Series ceiling speaker is 1.0 in. deep alone and 3.5 in. on this box; a speaker strobe 2.8 in. and 5.37 in.
- Fits L-Series devices only; TRC-2 red and TRC-2W white are the ceiling trim rings
SBBCWL is the identical box in white. The wall boxes are not substitutes and differ in conduit size: SBBRL and SBBWL are the 4x4 box with dual knockouts, SBBGRL and SBBGWL the 2x4 compact box with 1/2 in. only, SBBSPRL and SBBSPWL the speaker box with 3/4 in. only.
