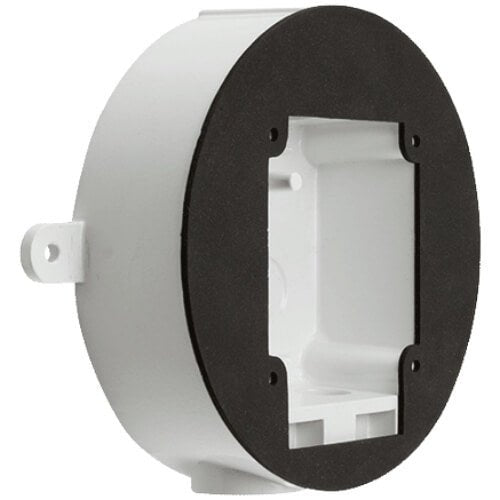

System Sensor SA-WBBCW — white metal weatherproof ceiling-mount back box for SpectrAlert Advance outdoor appliances.
An outdoor SpectrAlert Advance device is only outdoor rated as an assembly. The System Sensor engineering specification states that the strobe or horn strobe must be installed with its weatherproof back box to remain outdoor approved per UL, so the box is part of the listing, not a mounting convenience.
- White, ceiling-mount, listed by System Sensor among the metal weatherproof back boxes.
- Named compatible appliances: PC2WK, PC2WHK, PC4WK, SCWK and SCWHK.
- Outdoor back boxes ensure a NEMA 4X weatherproof listing for the appliance; the outdoor range is rated per NEMA 4X and IP56.
- Ceiling-mount weatherproof back box dimensions 7.1 in. diameter × 2.0 in. high.
- When a standard outdoor unit is replaced, both the device and the back box must be replaced.
Check colour, orientation and device family. SA-WBBC is the red ceiling box, SA-WBBW and SA-WBB the white and red wall boxes, and MWBBCW the white ceiling box for speaker strobe models. K-R devices ship without a back box and use the WTP weatherproof plates instead.
