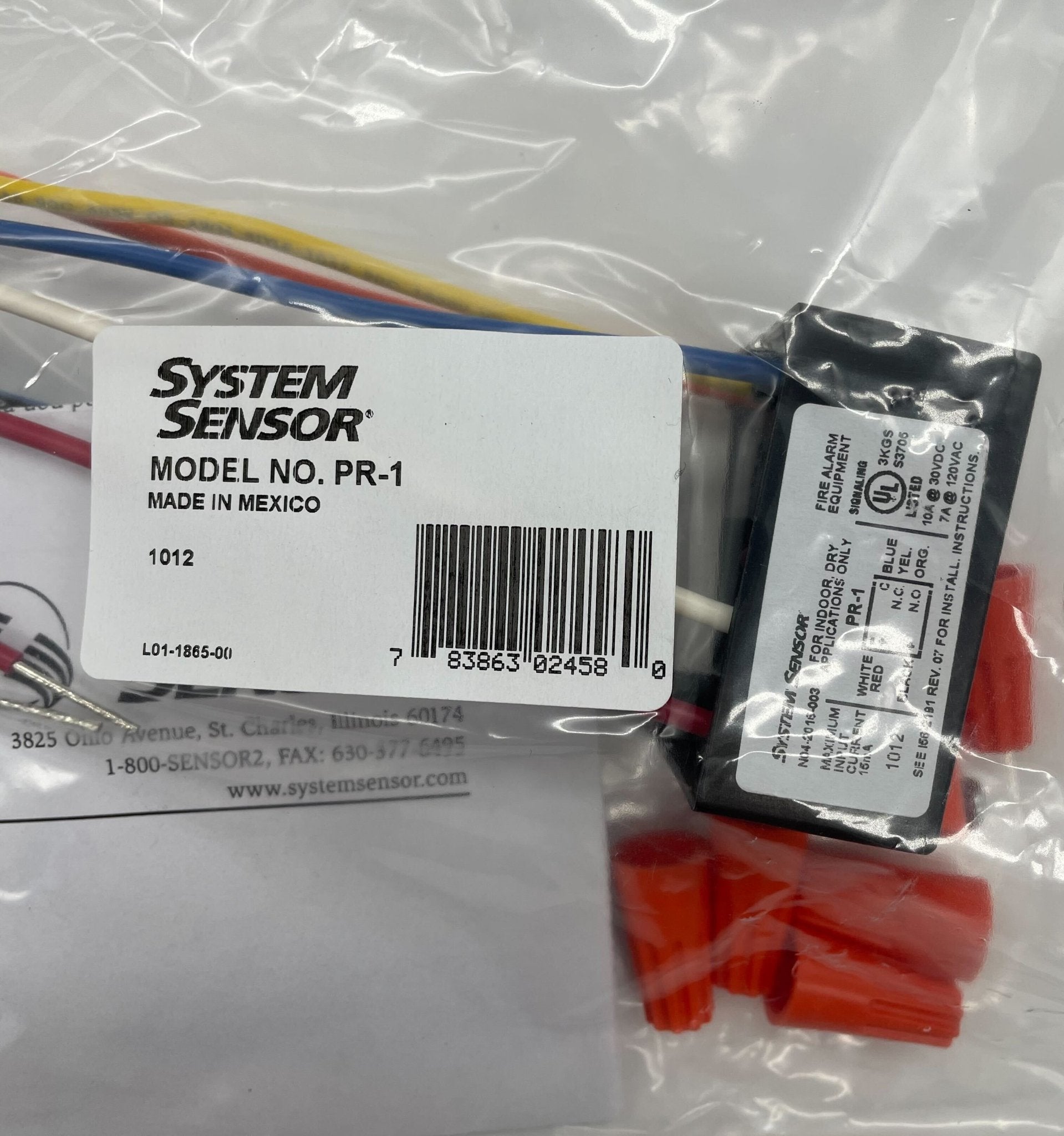

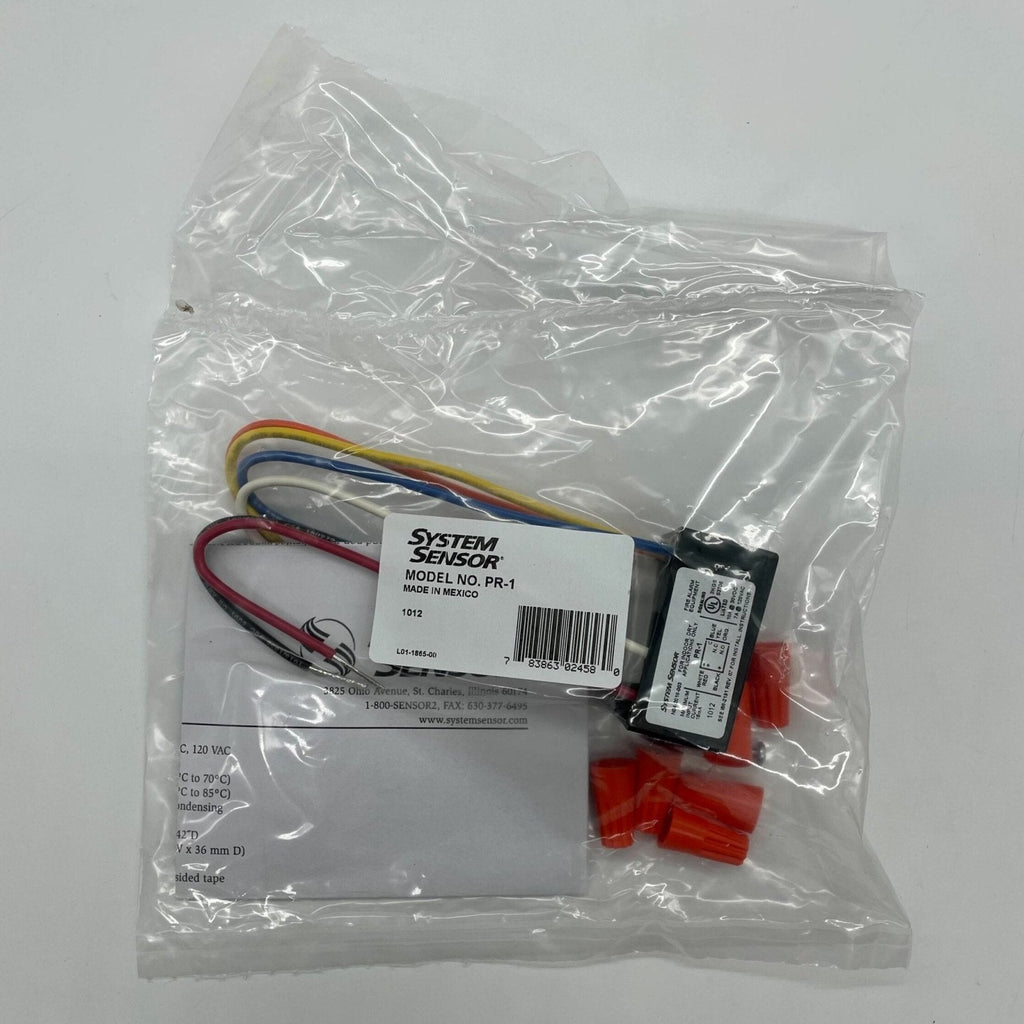

System Sensor PR-1 Epoxy Encapsulated (SPDT) Relay With Activation LED
PR-1: Multi-Voltage Relay · Epoxy encapsulated · Single-Pole · Double-Throw · Activation LED
Multi-voltage conventional relays are used for high-current switching applications such as fan and damper assembly control, door control, air handling unit controls, and other types of system interfacing. They are single-pole, double-throw relays that use a red LED as a visible indication of relay coil energization.
Key Features
- Multi-voltage operation
- Activation LEDs
- Easy and flexible installation
- Reliable and robust design
- Multipurpose field installations
- Multi-voltage relays with terminal strip field wiring connections, mounting track, and hardware for R-10T/20T and R-14T/24T
- Removable front cover on steel enclosure for R-10E/R-20E and R-14/R-24E, which mount inside the enclosure
- LED viewing hole on top of the steel enclosure’s cover
- Extra pair of wires for redundant power input on PR-3 and PR-3A
- Terminal strip field wiring connections, mounting track, and hardware
